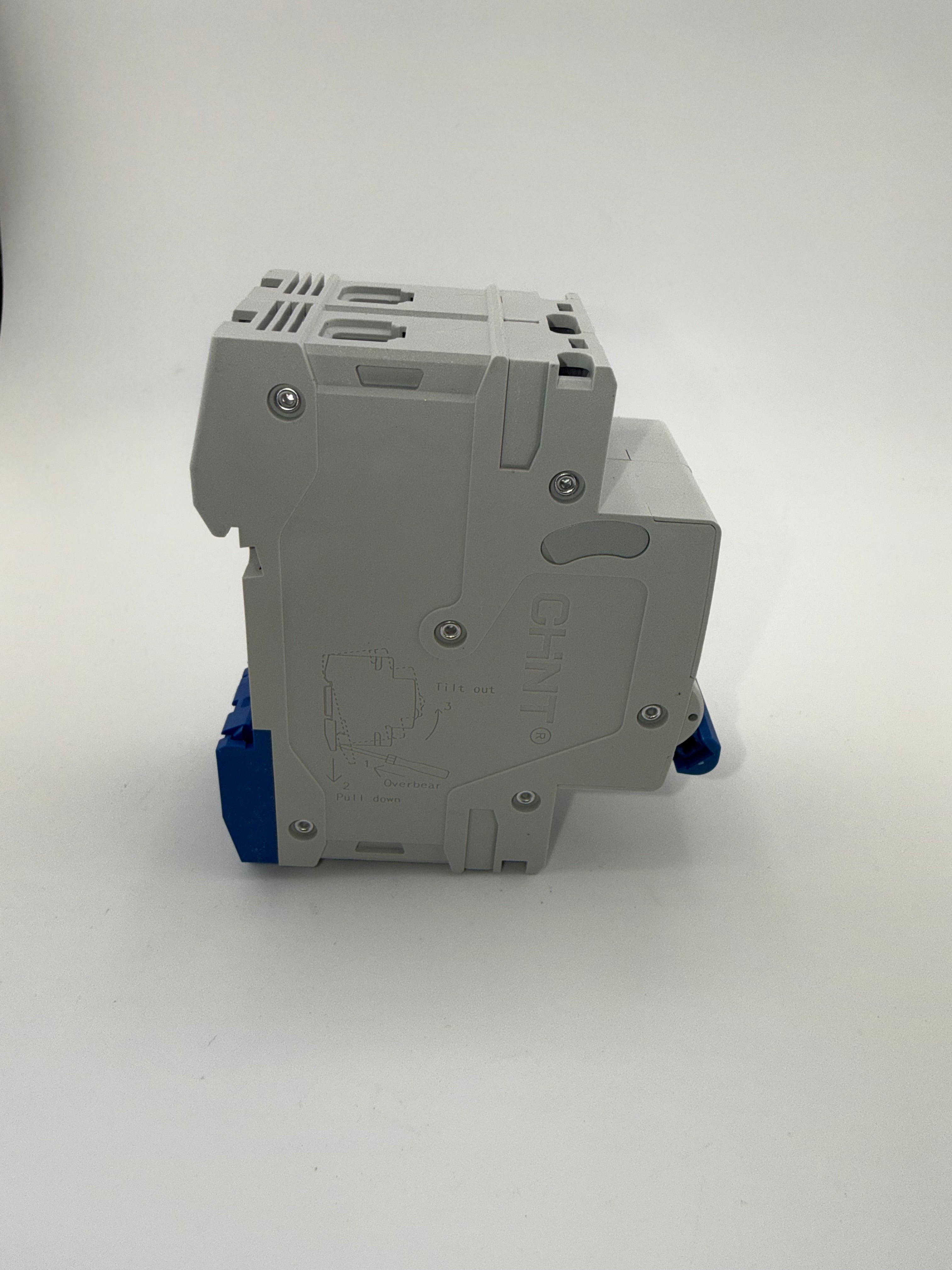

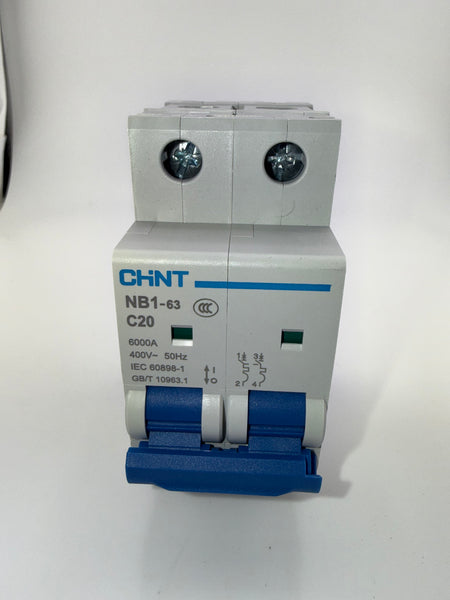

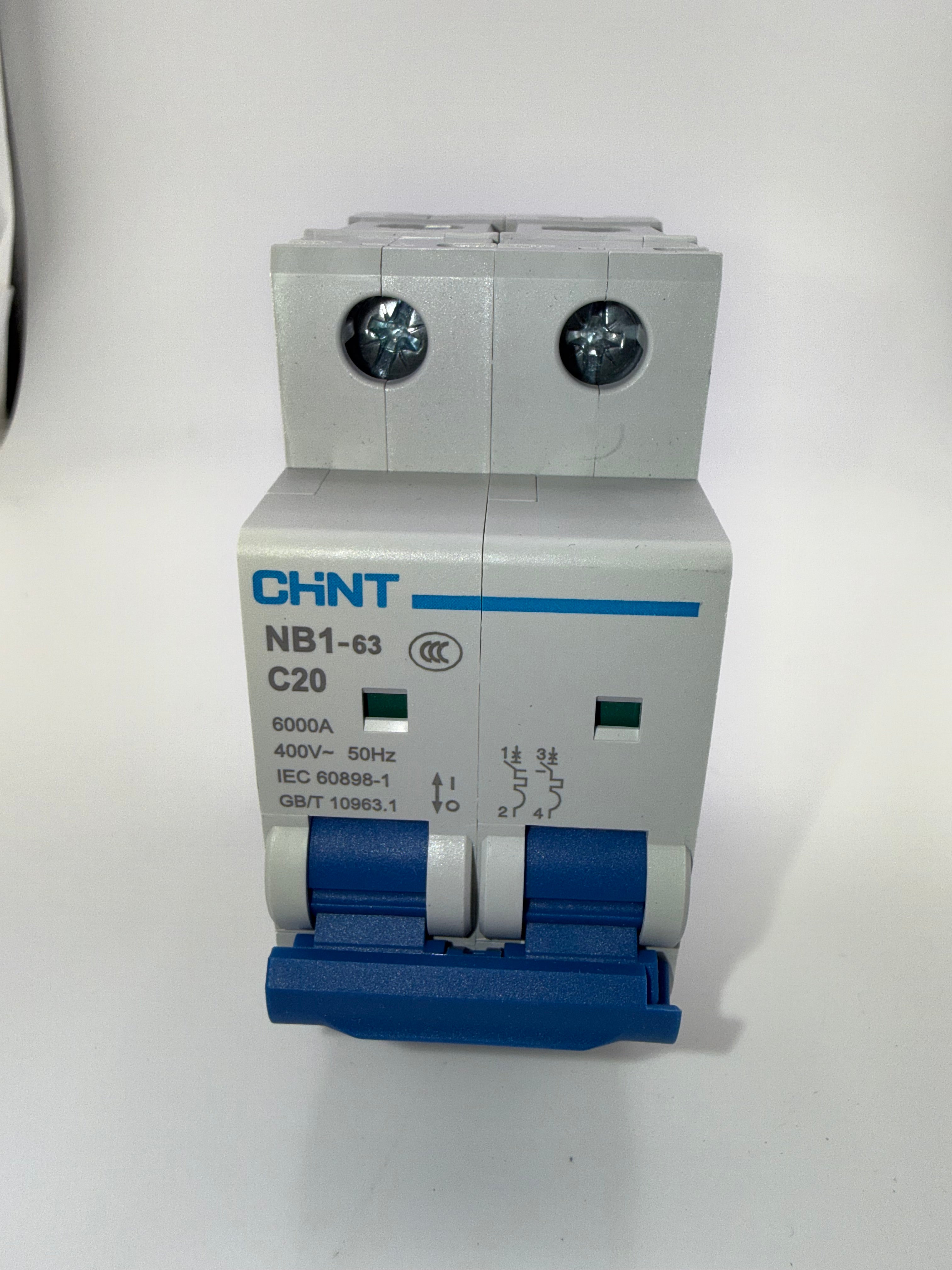

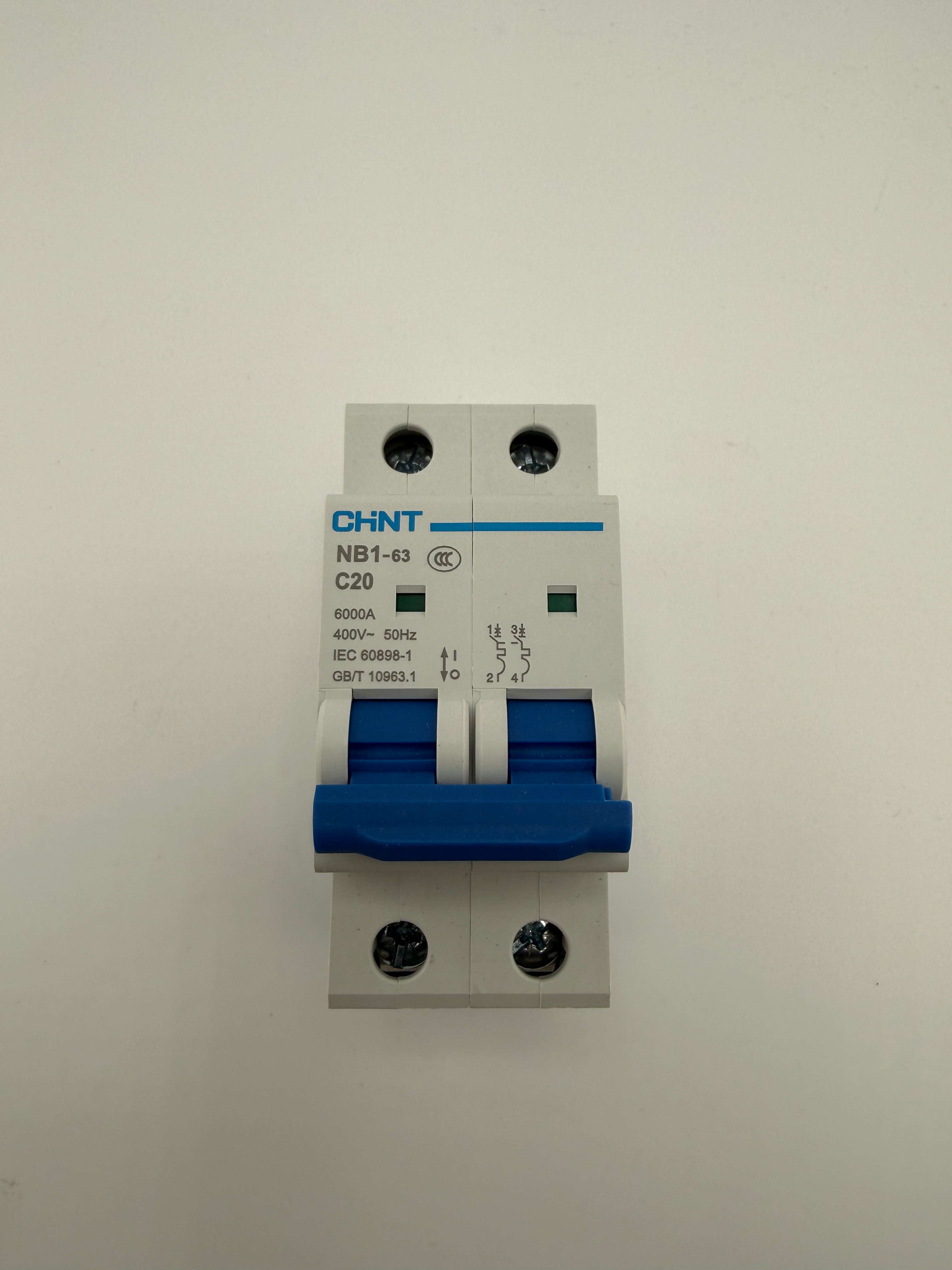

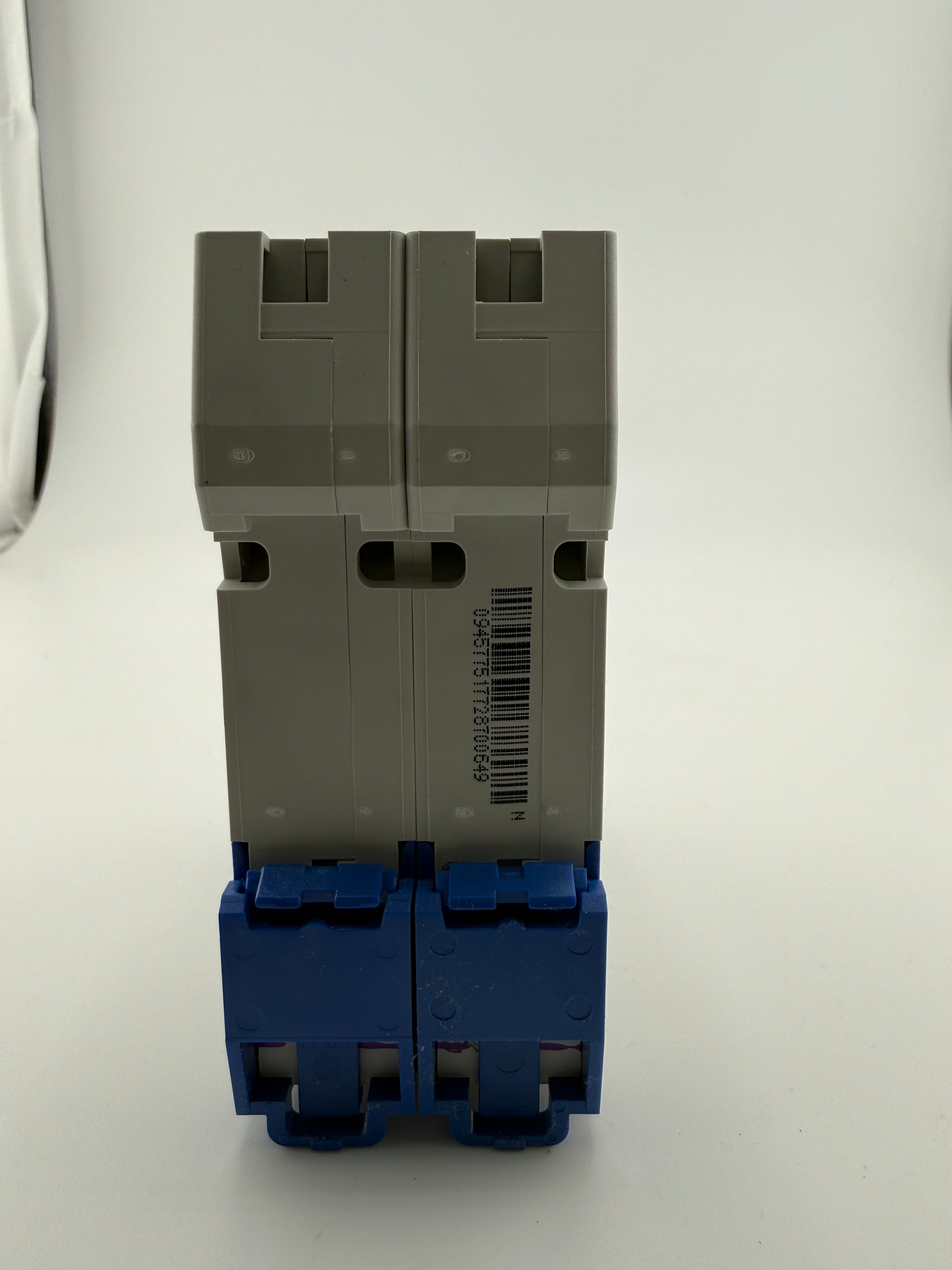

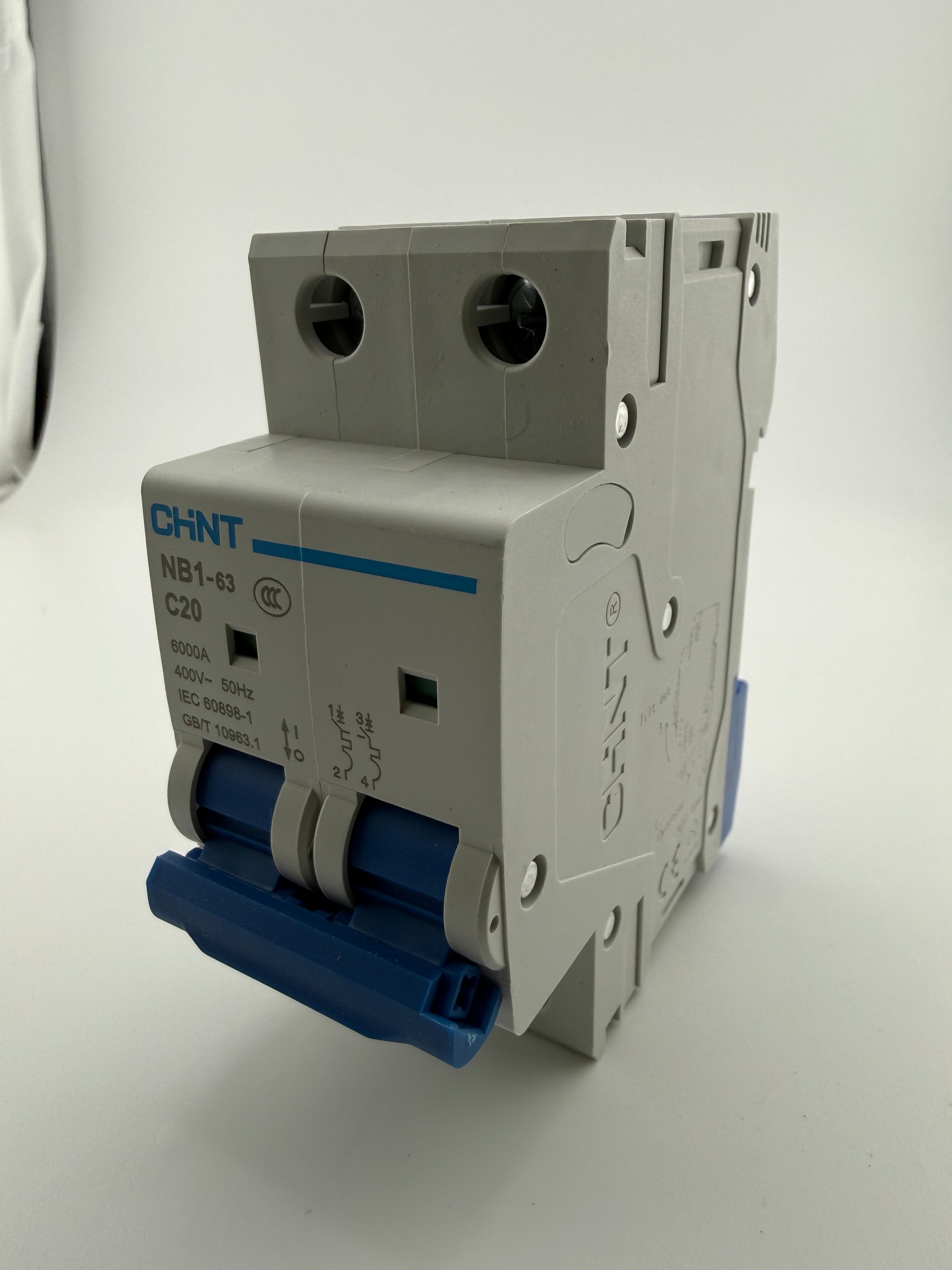

CHINT 2-POLE 20A

A 20 Amp, double-pole miniature circuit breaker by Chint, often DIN-rail mounted. It’s rated for use up to ~230/415 V AC systems with an interrupting capacity on the order of 6 kA. This breaker provides two-pole (linked) overload and short-circuit protection, and its terminal lugs can accommodate wiring roughly from #18 AWG up to #4 AWG.

Product Specifications

Brand / Manufacturer : Chint

Type : NB1

Category : Circuit Breaker

Cat. No : NB1-C20-2P

Poles : 2-Pole

Amperage (A) : 20

Voltage (V) : 120/240

Connection Type : Din-Rail

Interrupting Current (AIC)  : 6,000

Dimensions (Inches) L x W x H : 3.39 in (L) x 1.42 in (W) x 3.07in (H)

Weight (Lbs) : 0.85
