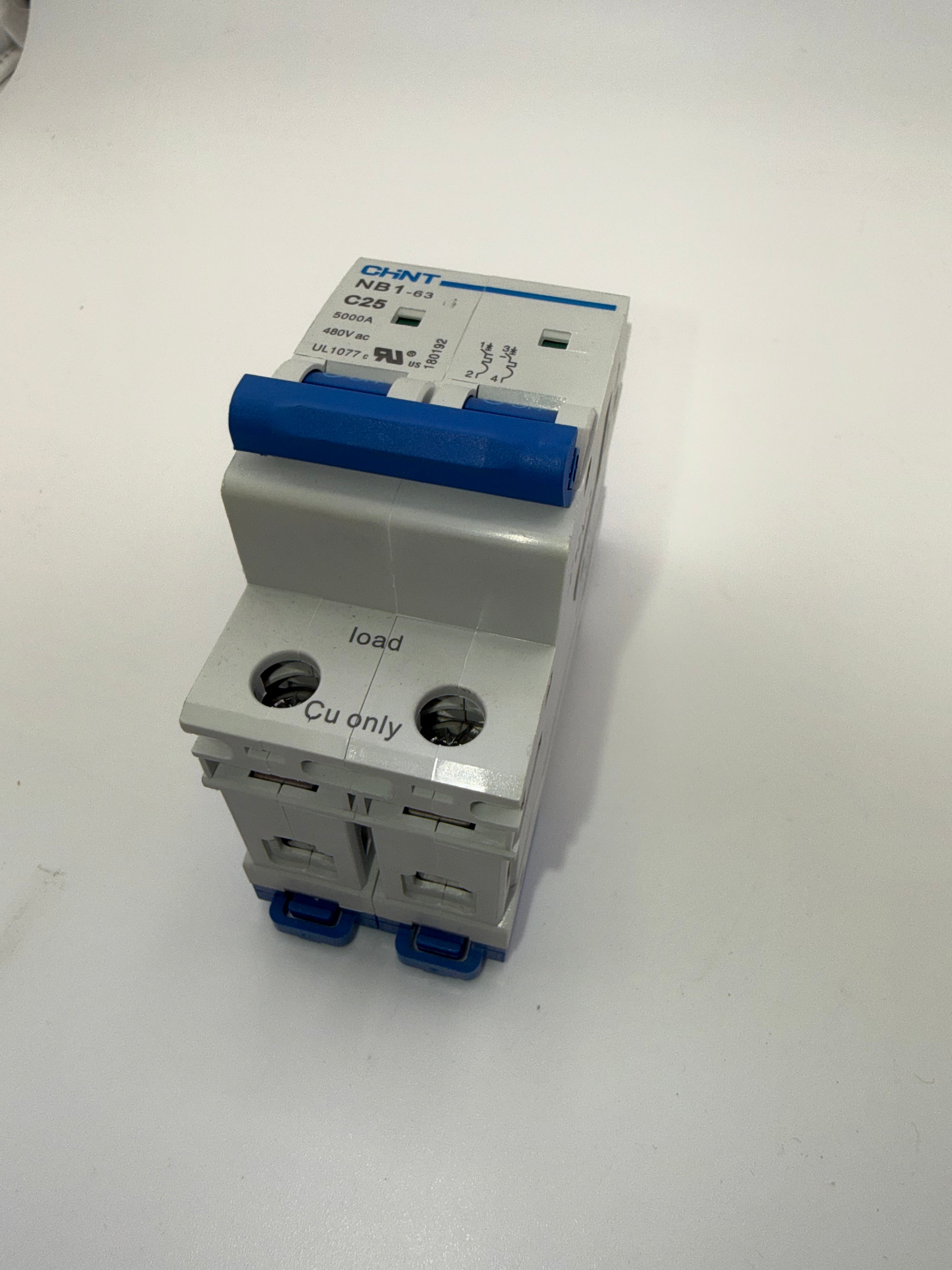

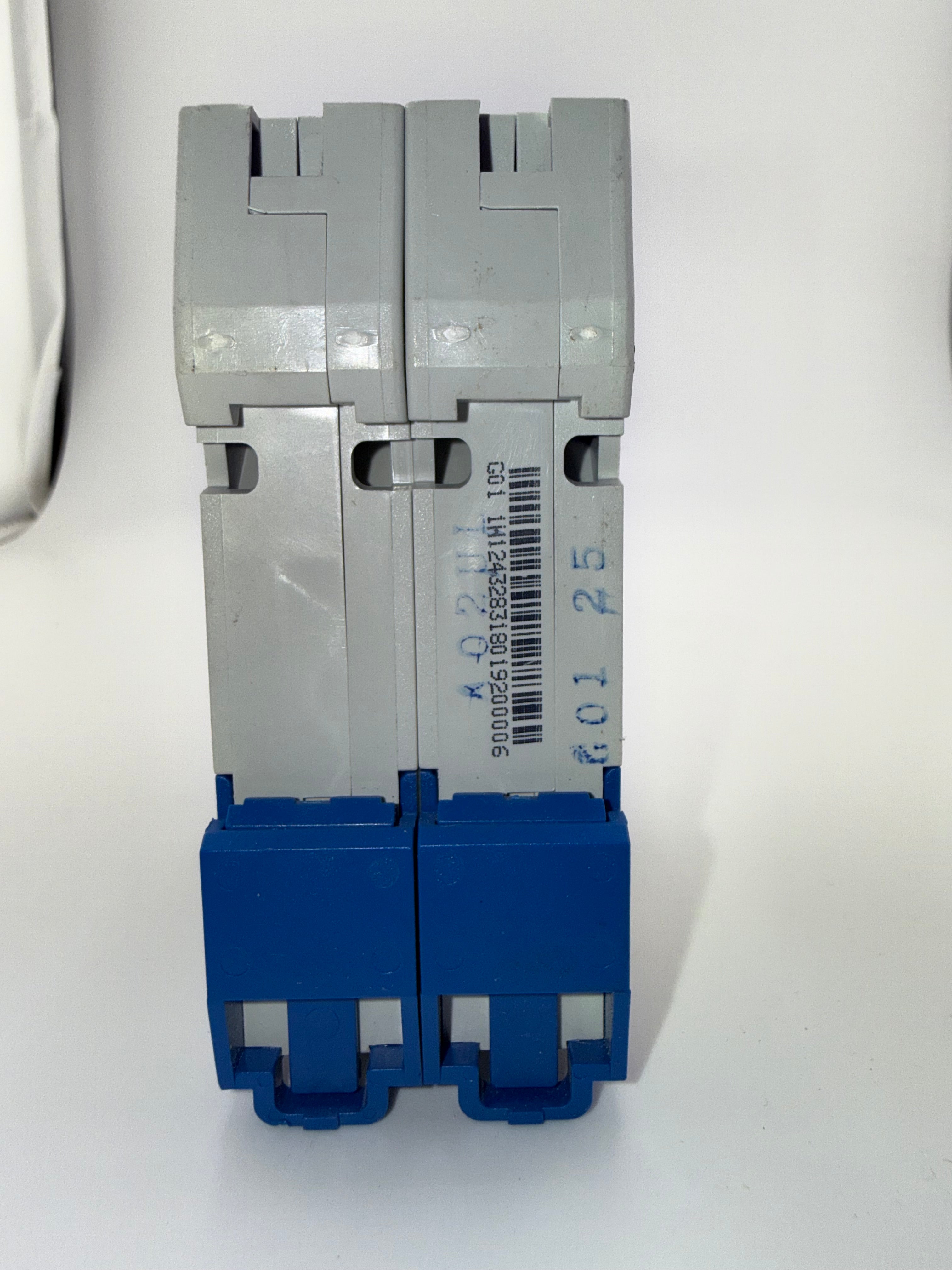

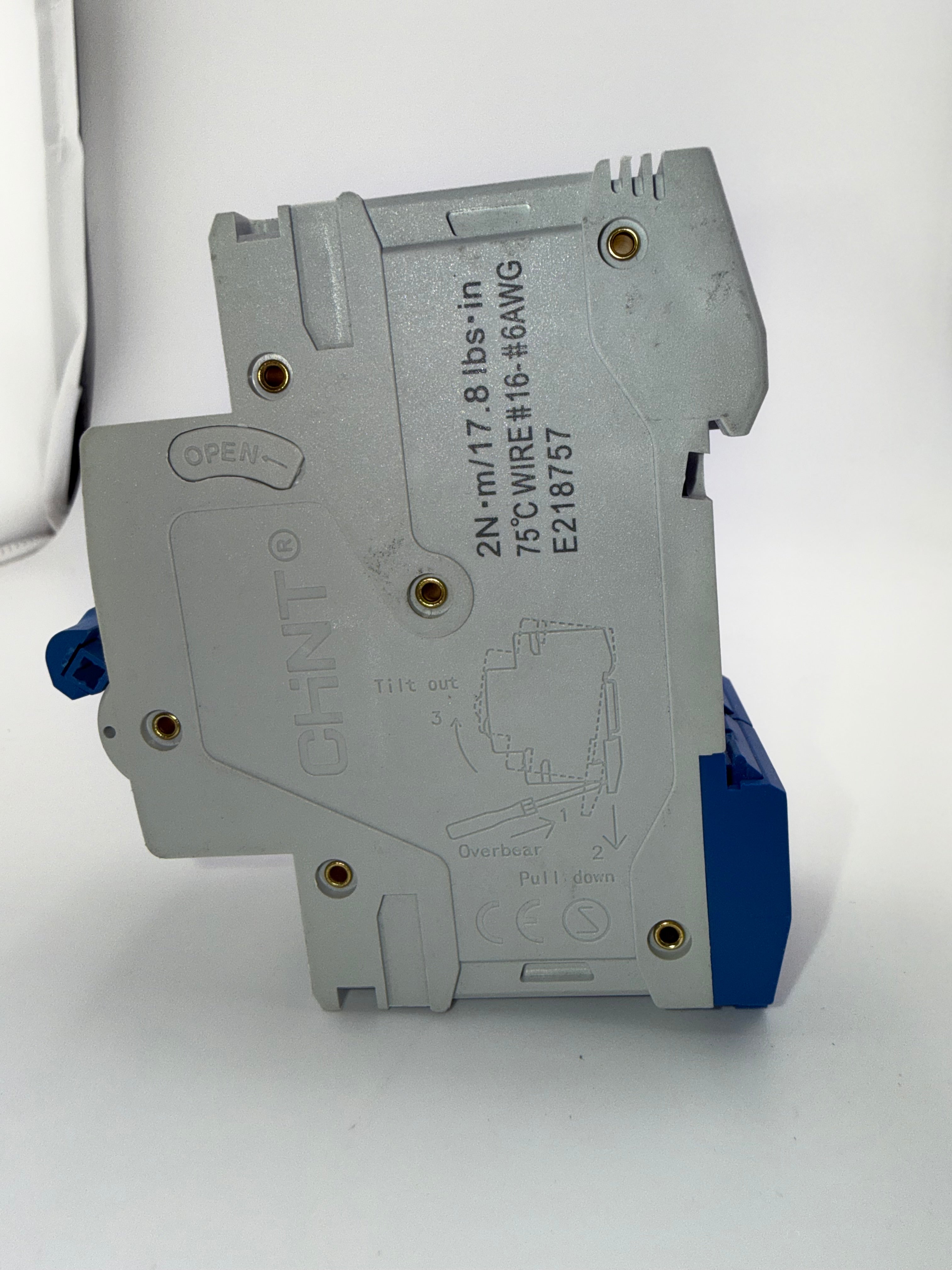

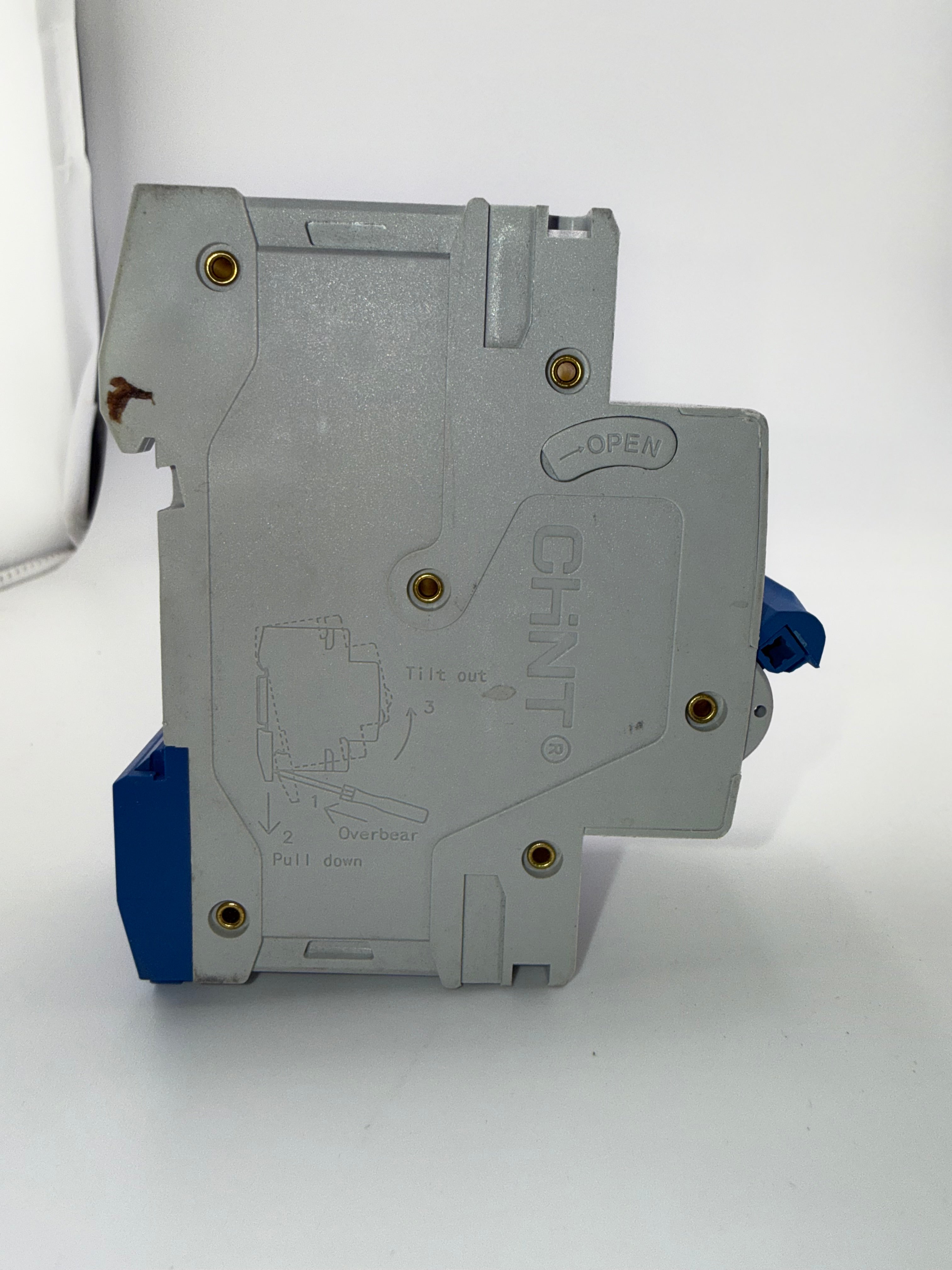

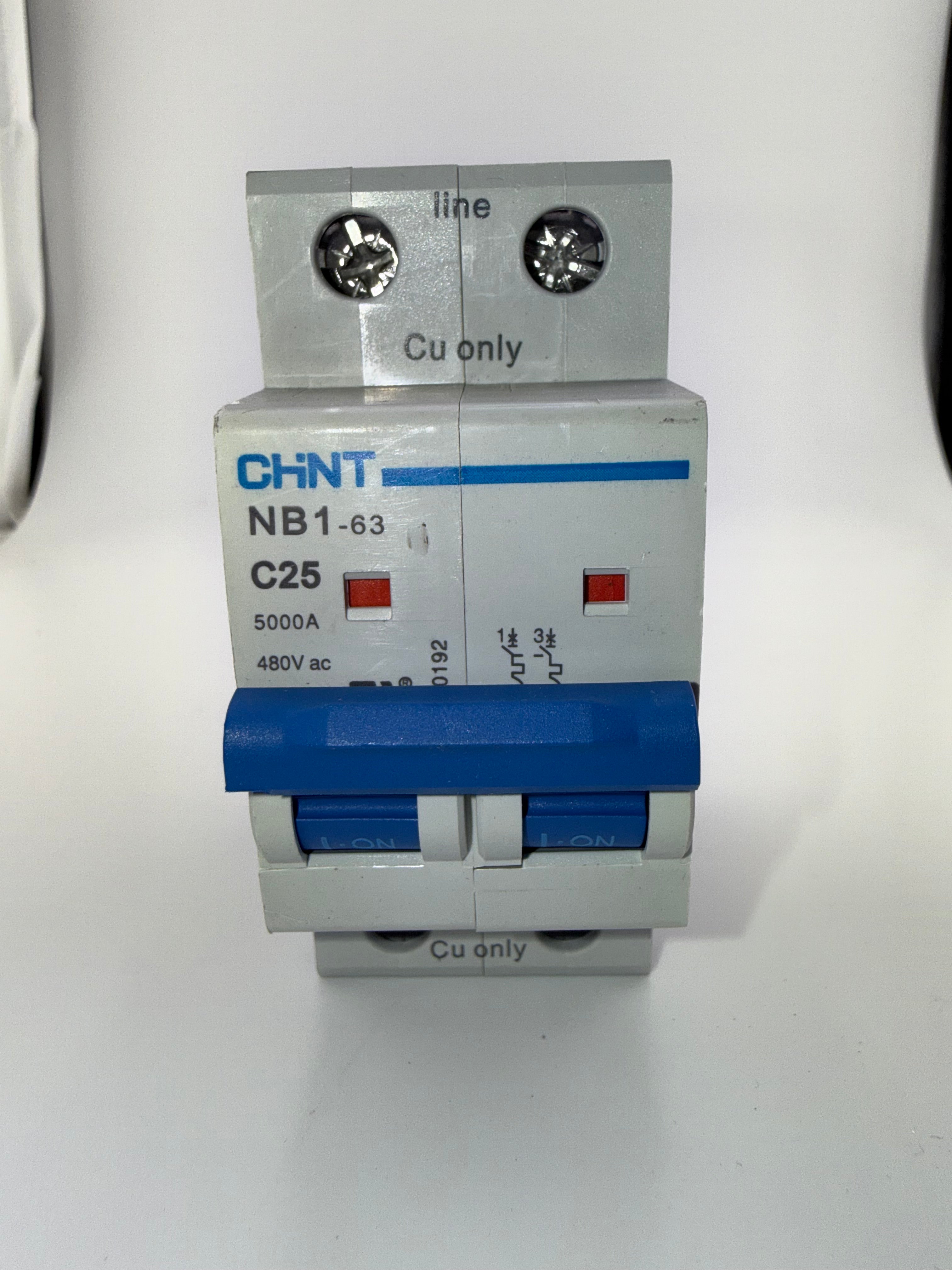

CHINT 2-POLE 25A

A 25 Amp, 2-pole Chint mini circuit breaker suitable for residential/commercial applications. It typically operates on 230–415 V AC (for two-phase or single-phase supply) and has a 6 kA breaking capacity similar to other Chint NB1 series breakers. It mounts on a 35mm DIN rail and accepts copper or aluminum wires (approximately #18 through #4 AWG) under its screw terminals.

Product Specifications

Brand / Manufacturer : Chint

Type : NB1

Category : Circuit Breaker

Cat. No : NB1-C25-2P

Poles : 2-Pole

Amperage (A) : 25

Voltage (V) : 240/415

Connection Type : Din-Rail

Interrupting Current (AIC)  : 6,000

Dimensions (Inches) L x W x H : 3.39 in (L) x 1.42 in (W) x 3.07in (H)

Weight (Lbs) : 0.85
