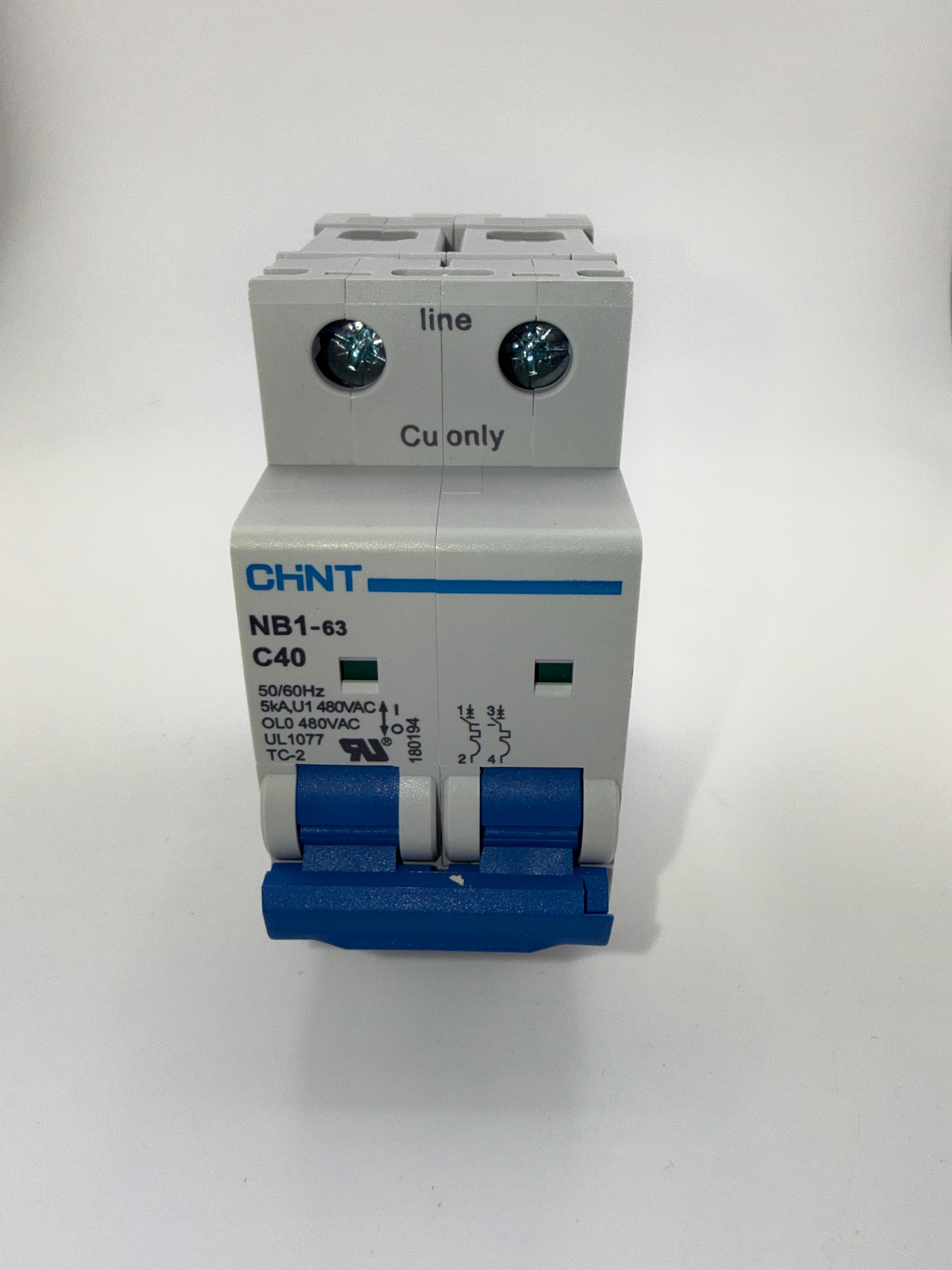

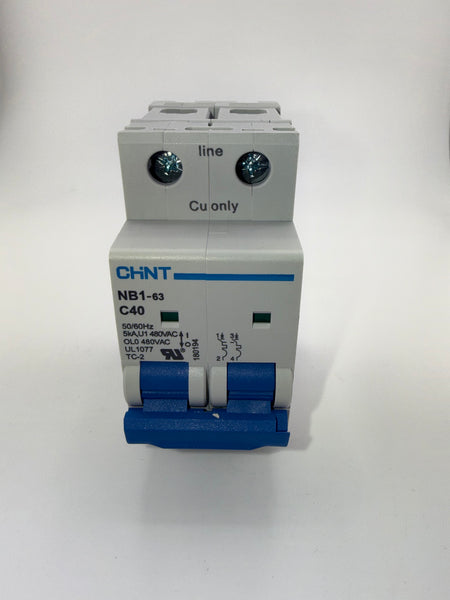

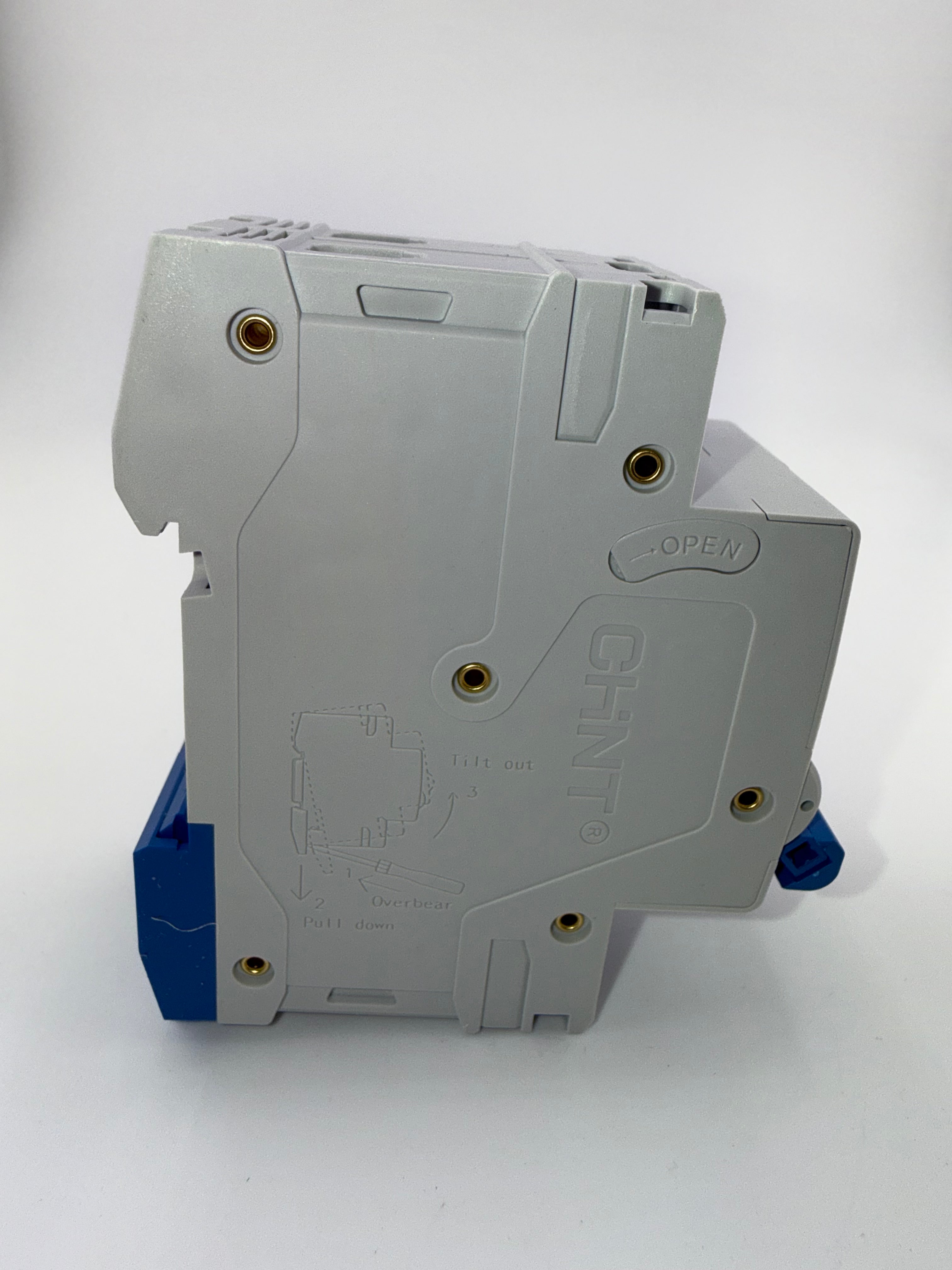

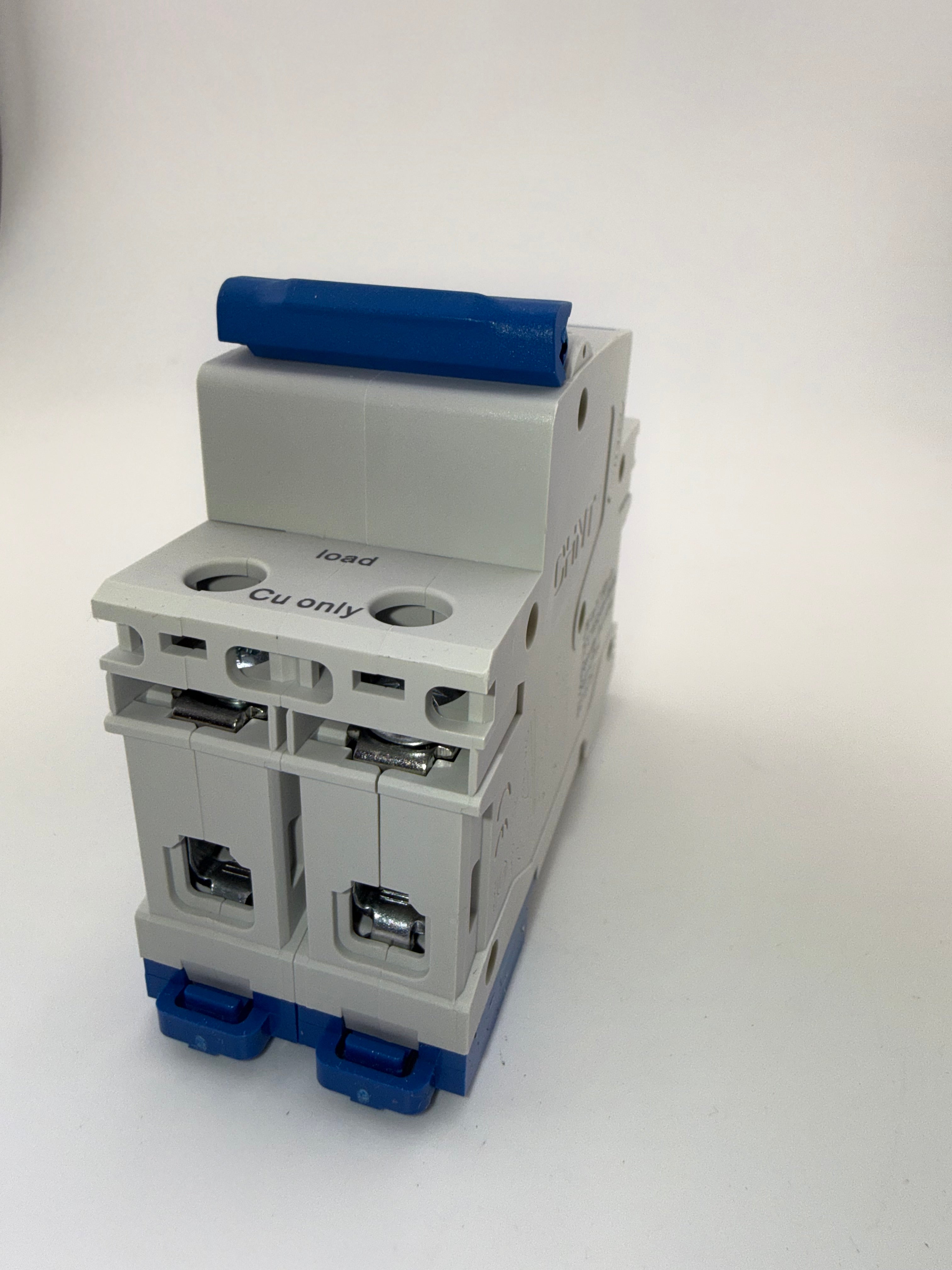

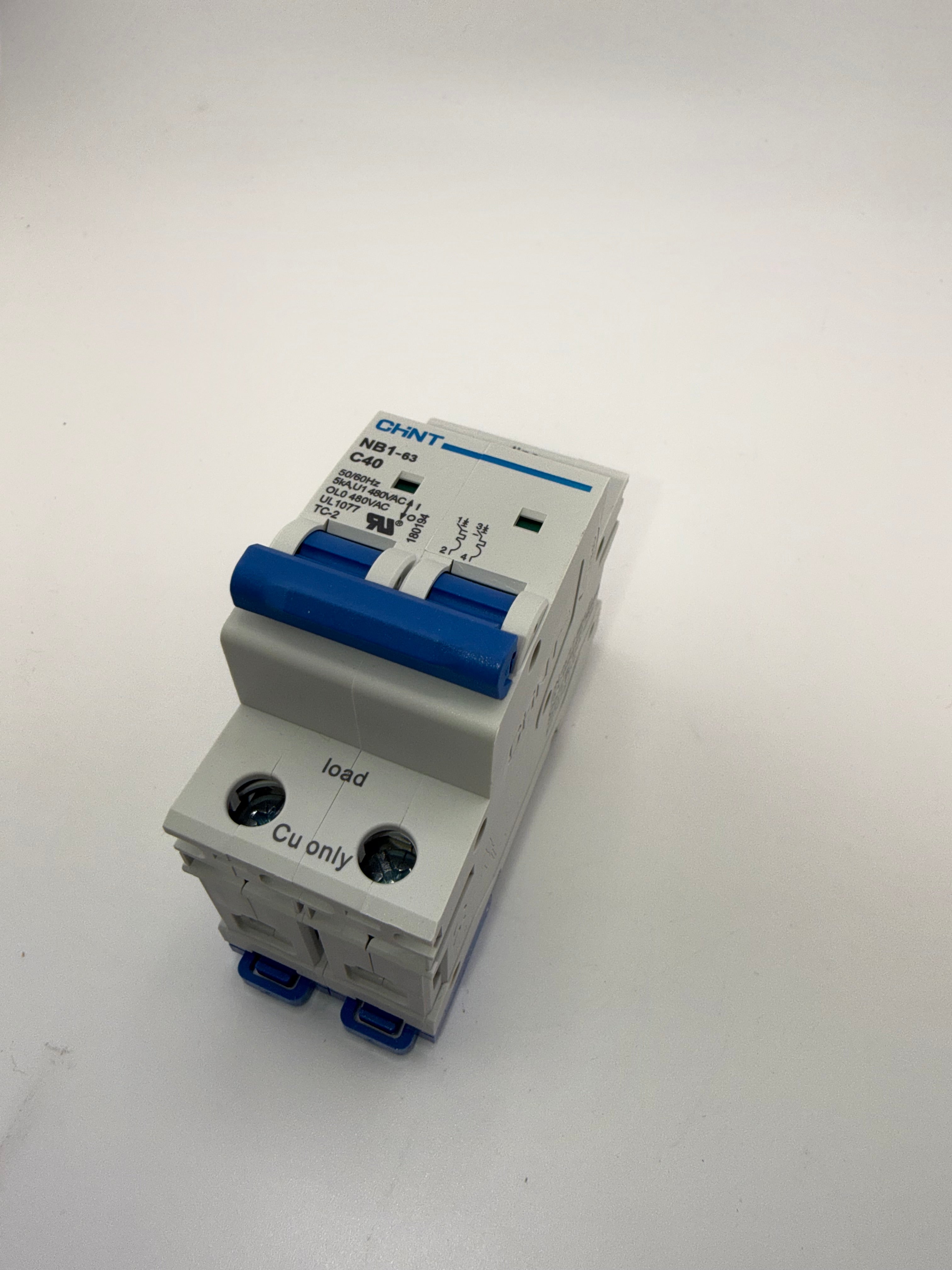

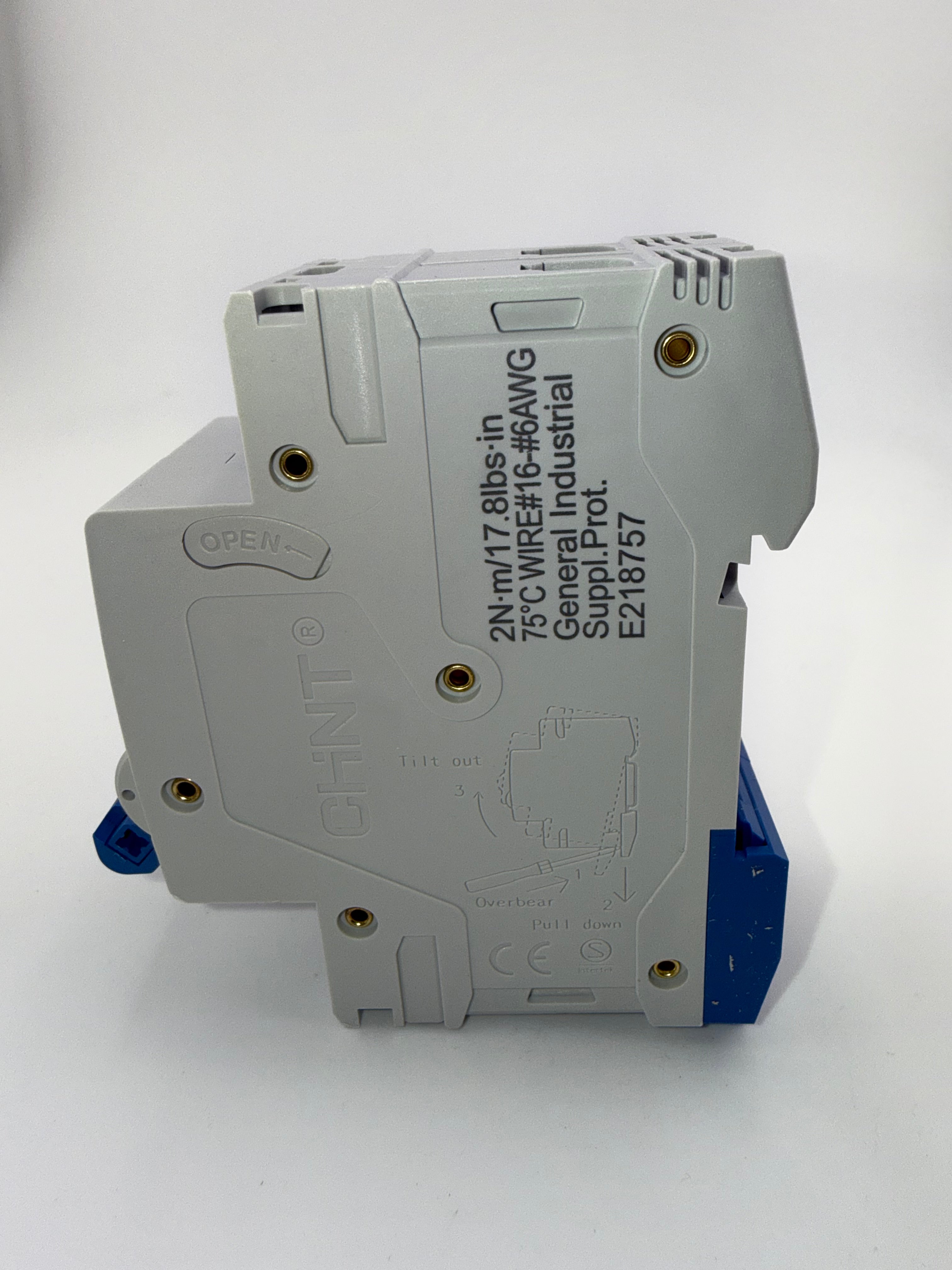

CHINT 2-POLE 40A

A 40 Amp, two-pole Chint MCB (miniature circuit breaker) built for protecting circuits at up to around 415 V AC. It offers a short-circuit interrupt capacity of about 6,000 A, which is typical for IEC miniature breakers. The unit clips onto a DIN rail and handles incoming/outgoing wires from roughly #18 AWG up to #4 AWG, making it suitable for higher-load circuits in homes or light industry.

Product Specifications

Brand / Manufacturer : Chint

Type : NB1

Category : Circuit Breaker

Cat. No : NB1-C40-2P

Poles : 2-Pole

Amperage (A) : 40

Voltage (V) : 240/415

Connection Type : Din-Rail

Interrupting Current (AIC)  : 6,000

Dimensions (Inches) L x W x H : 3.39 in (L) x 1.42 in (W) x 3.07in (H)

Weight (Lbs) : 0.85
