CHINT 2-POLE 63A

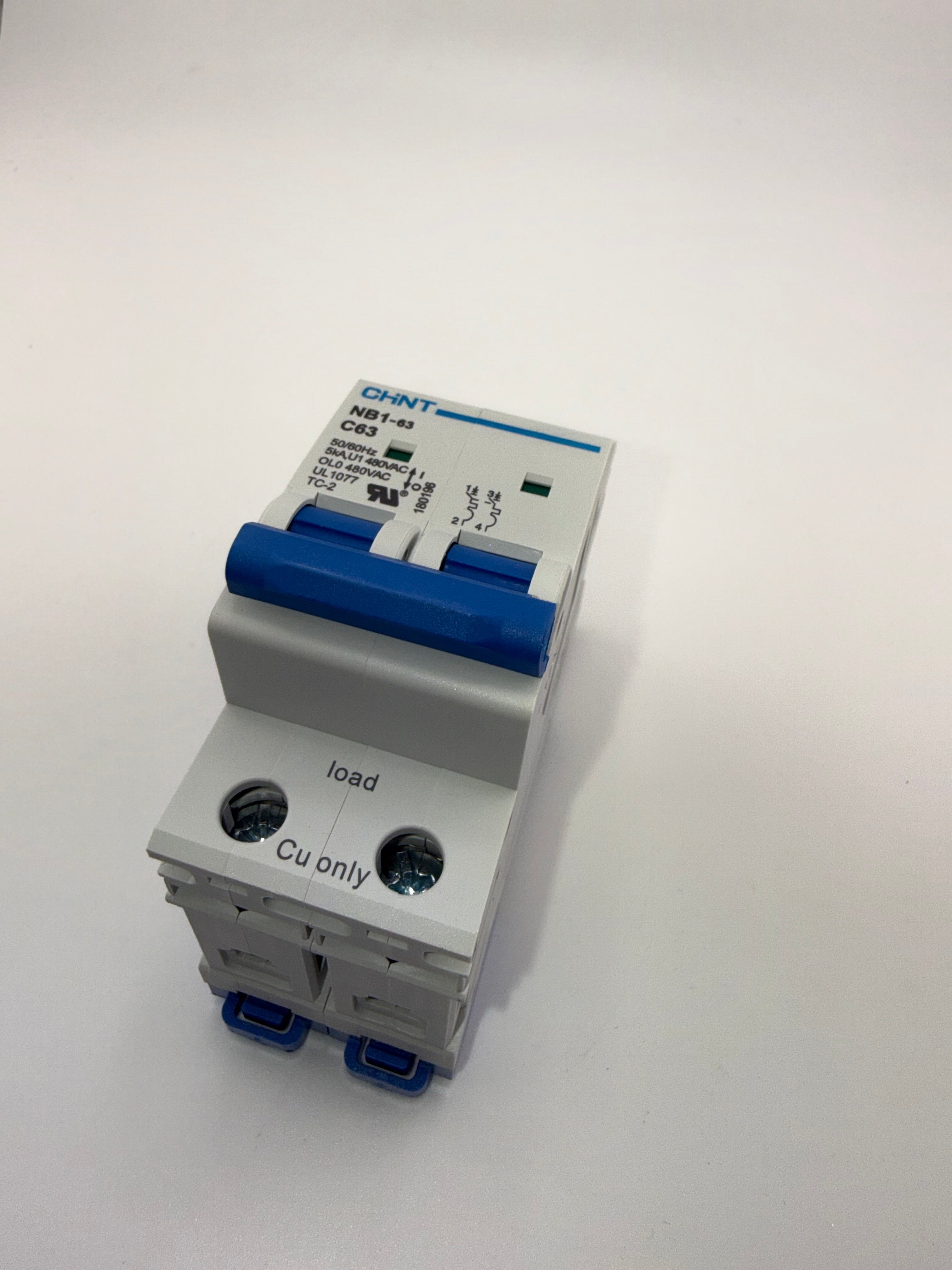

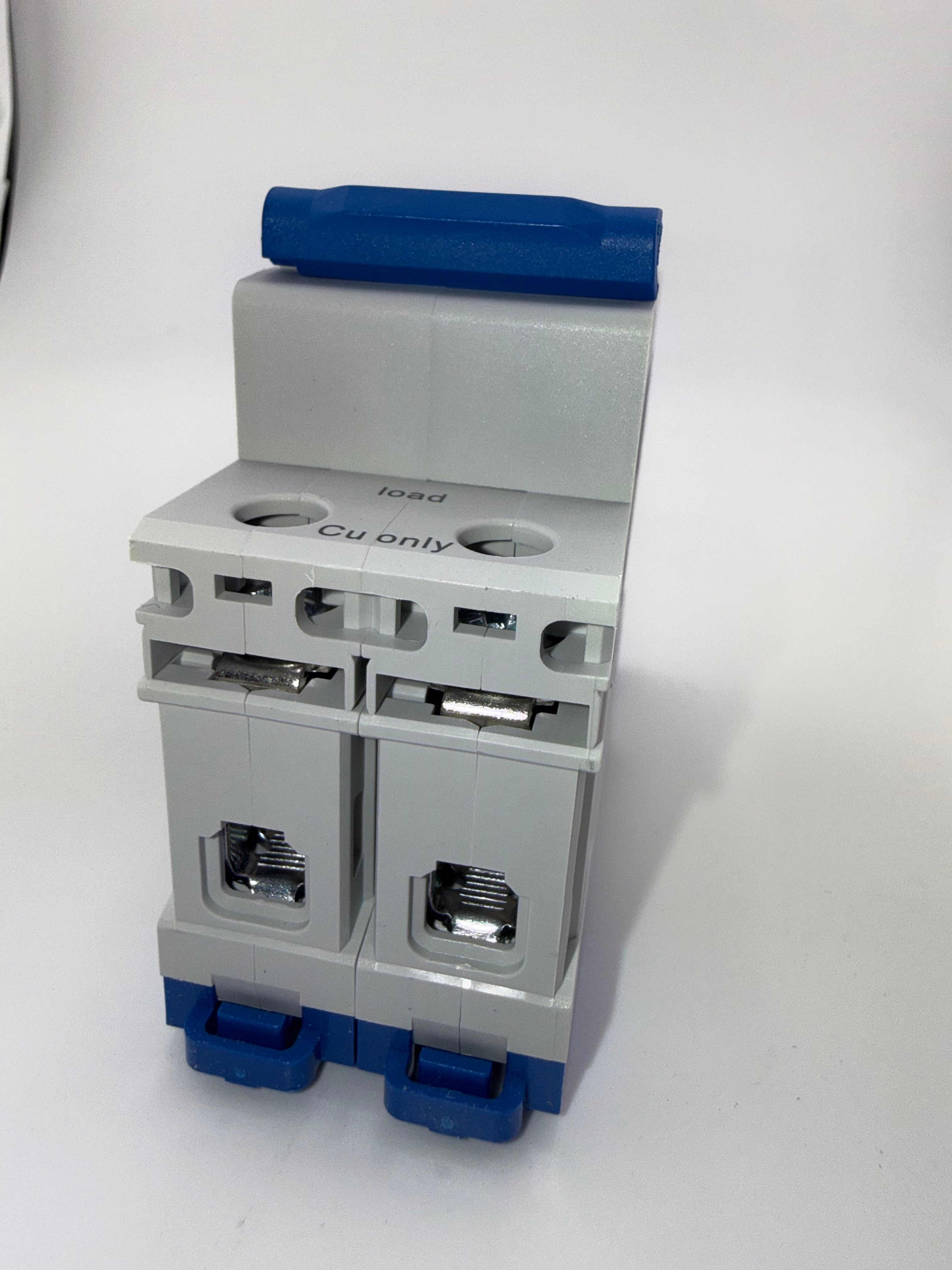

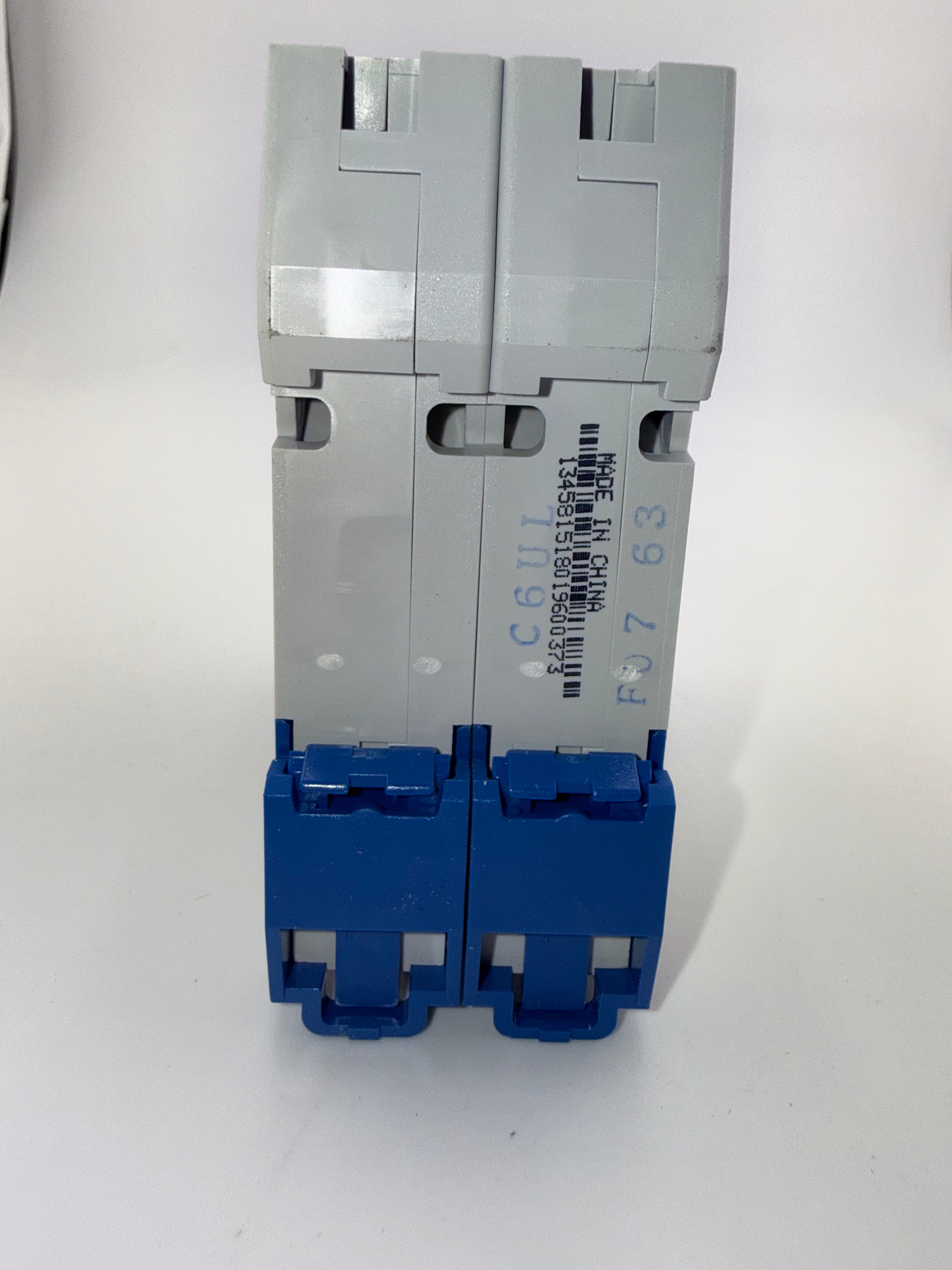

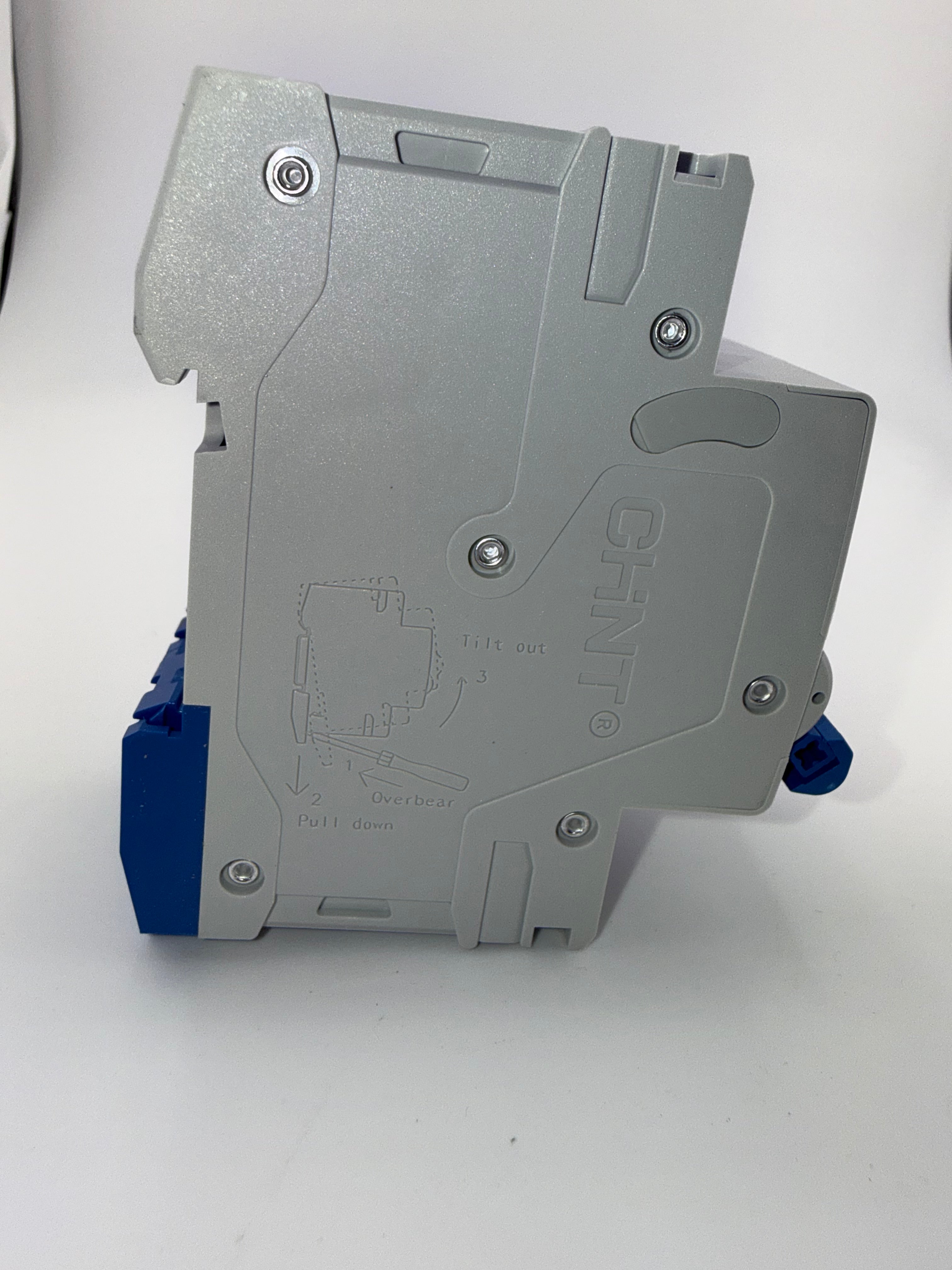

A 63 Amp, double-pole circuit breaker from Chint’s low-voltage MCB range. It’s rated for up to 415 V AC operation on two linked poles and can safely interrupt up to a 6 kA fault current. This breaker is DIN-rail mountable and uses screw clamp terminals that typically accommodate conductors from about #18 AWG to #4 AWG, covering the full range of its current capacity.

Product Specifications

Brand / Manufacturer : Chint

Type : NB1

Category : Circuit Breaker

Cat. No : NB1-C63-2P

Poles : 2-Pole

Amperage (A) : 63

Voltage (V) : 240/415

Connection Type : Din-Rail

Interrupting Current (AIC)  : 6,000

Dimensions (Inches) L x W x H : 3.39 in (L) x 1.42 in (W) x 3.07in (H)

Weight (Lbs) : 0.85
