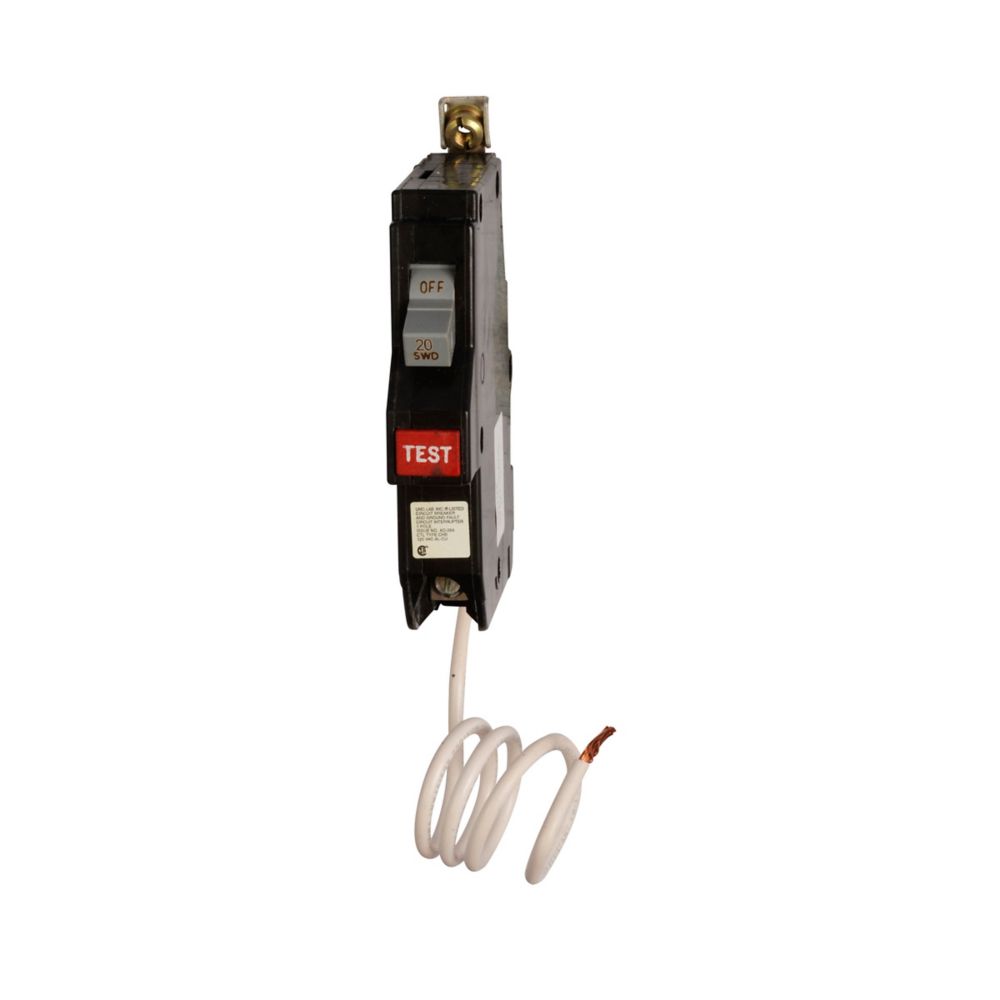

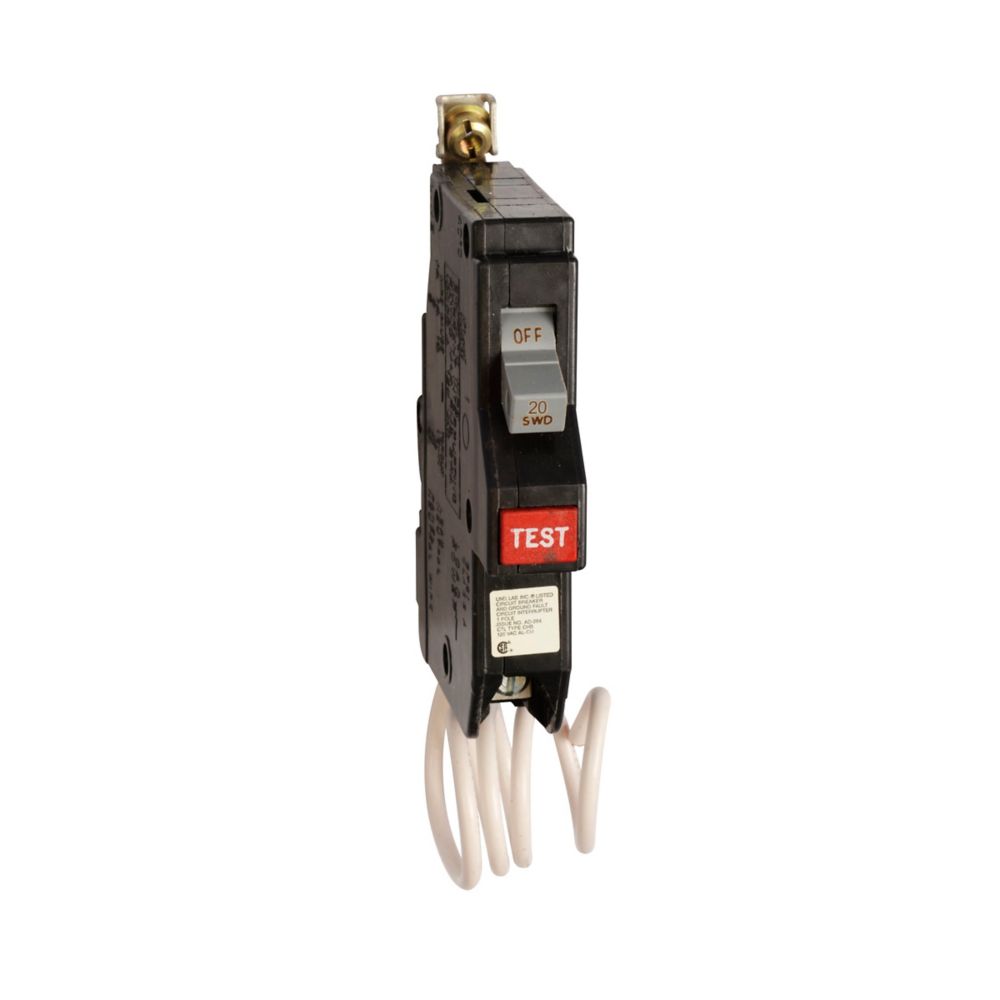

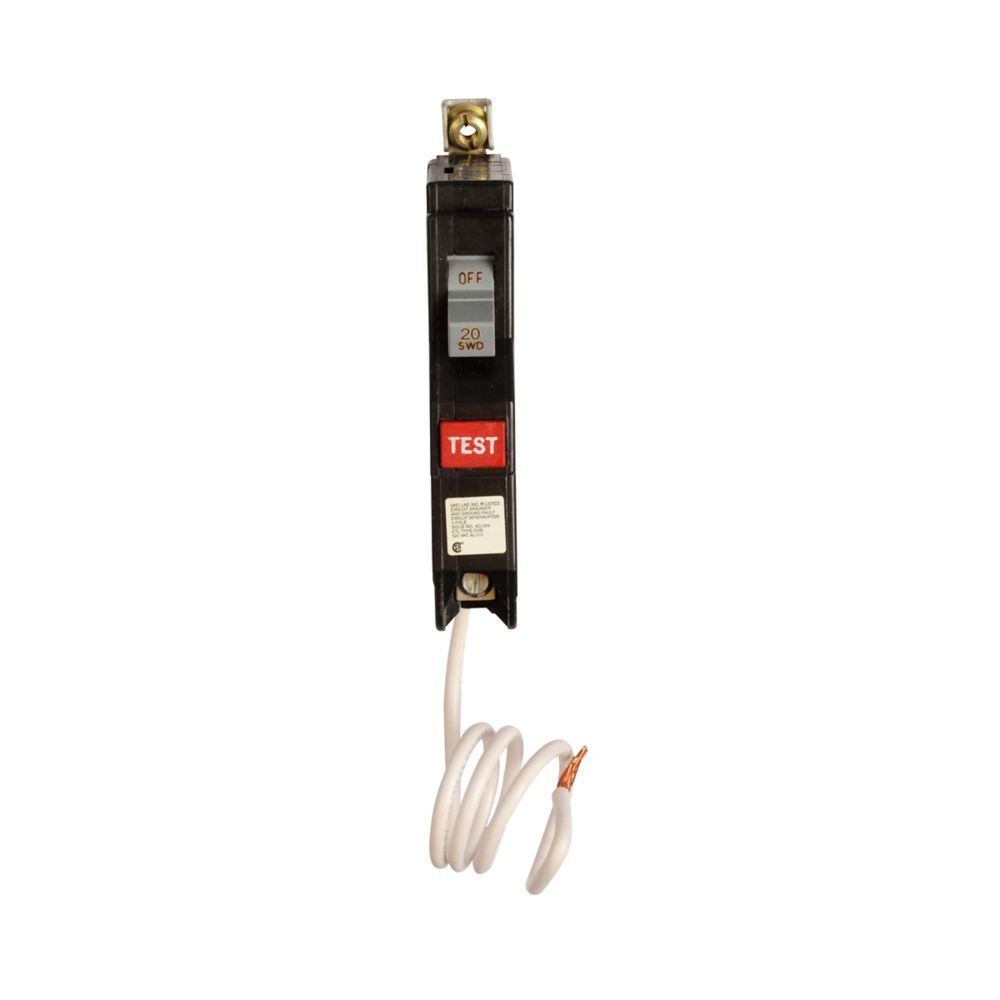

CUTLER-HAMMER SINGLE-POLE 20A BOLT-ON GFI

A 20 Amp, single-pole ground-fault circuit breaker by Cutler-Hammer (Eaton) that bolts onto the panel bus (typically used in certain load centers or panelboards). It provides Class A GFCI protection (tripping on ~5 mA ground faults) for 120 V circuits and is rated for standard branch circuit interruption (commonly around 10 kAIC; some industrial versions up to 22 kA). This bolt-on GFI breaker mounts securely via a screw, and its terminals generally accept about #14 to #8 AWG conductors (suitable for 20A branch wiring with a pigtail neutral connection).

Product Specifications

Brand / Manufacturer : Cutler-Hammer

Type : CHB

Category : Circuit Breaker

Cat. No : CHB120GF

Poles : Single-Pole

Amperage (A) : 20

Voltage (V) : 120

Connection Type : Bolt-on

Interrupting Current (AIC)  : 10,000

Dimensions (Inches) L x W x H : 3.6 in (L) x 0.7 in (W) x 2.7 in (H)

Weight (Lbs) : 0.25
