EATON 2-POLE 100A

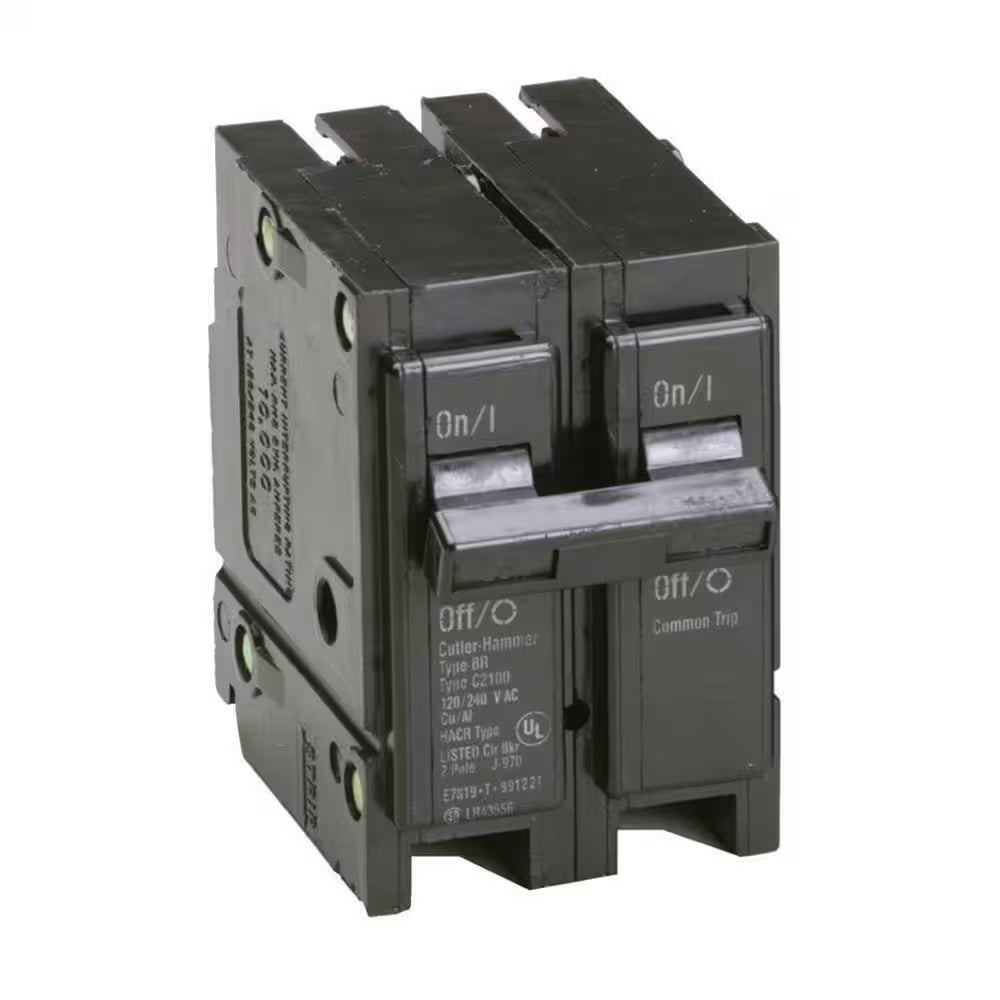

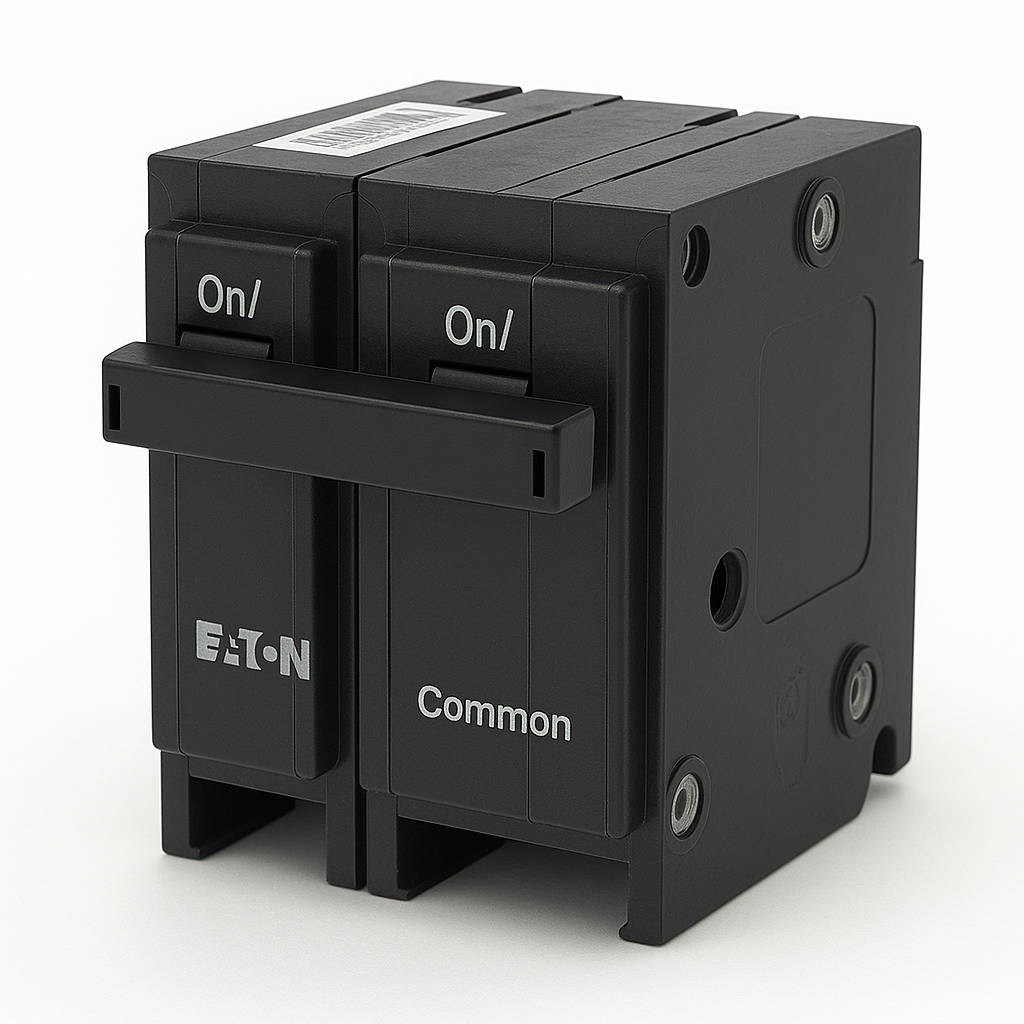

A 100 Amp, two-pole Eaton circuit breaker (Type BR style) for residential loadcenters. It’s typically used as a high-capacity branch or backfed main breaker, rated for 120/240 V AC service at 100A with a 10 kA interrupting rating. This plug-on breaker has lug terminals supporting large wire sizes (approximately #4 AWG up to 1/0 AWG ) to handle the heavy current safely.

Product Specifications

Brand / Manufacturer : Eaton

Type : BR

Category : Circuit Breaker

Cat. No : BR2100

Poles : 2-Pole

Amperage (A) : 100

Voltage (V) : 120/240

Connection Type : Plug-in

Interrupting Current (AIC)  : 10,000

Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)

Weight (Lbs) : 0.6
