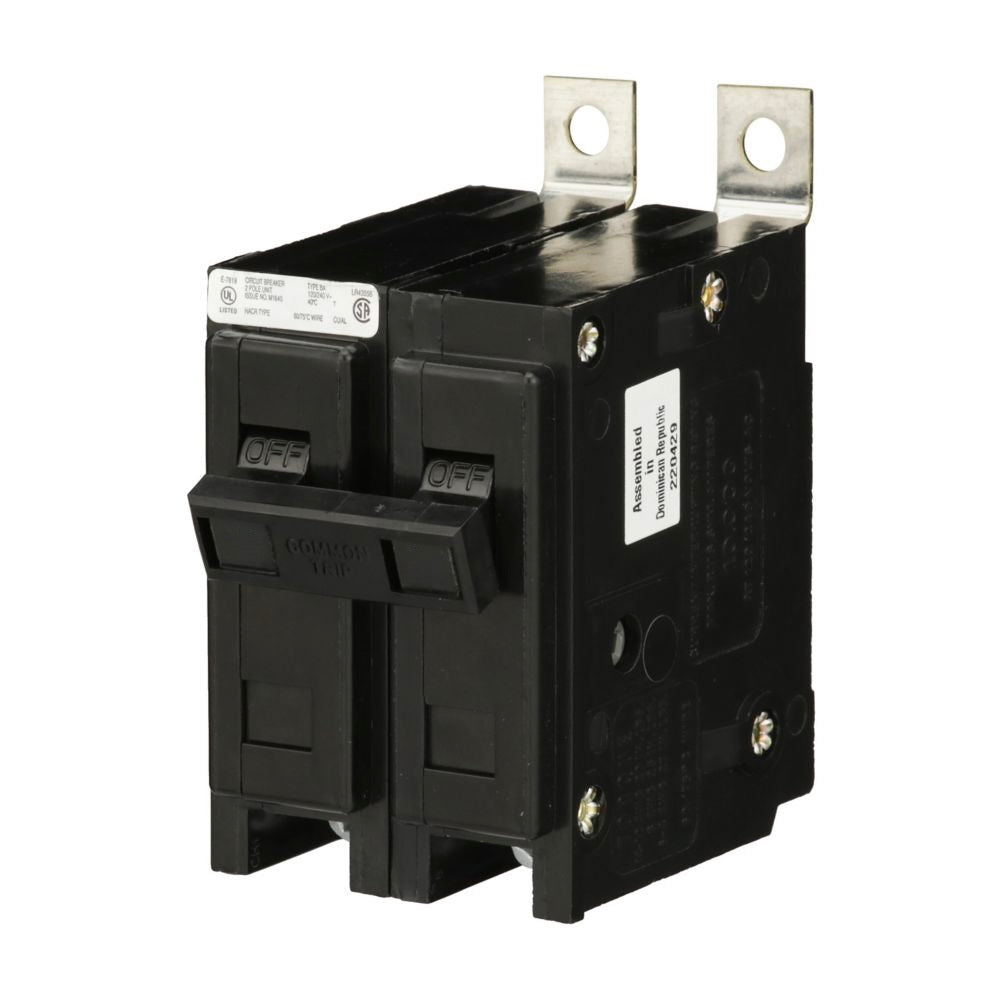

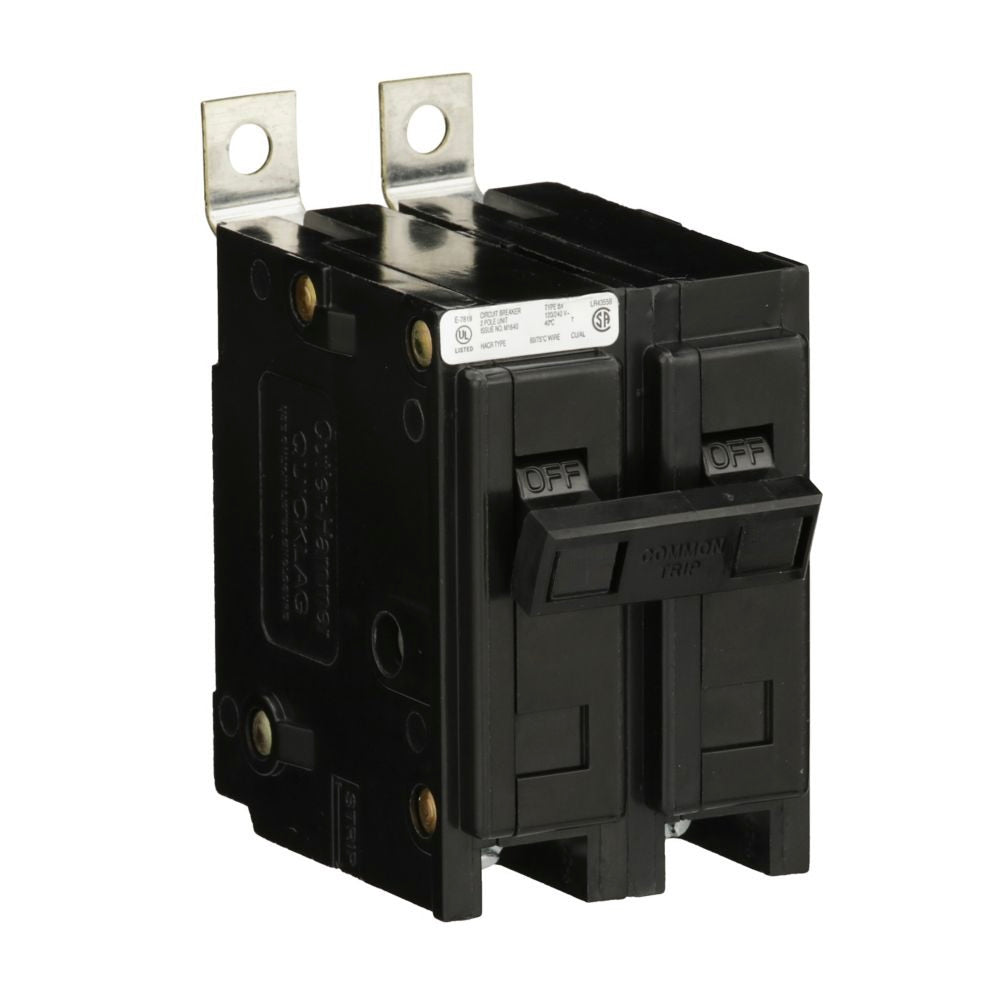

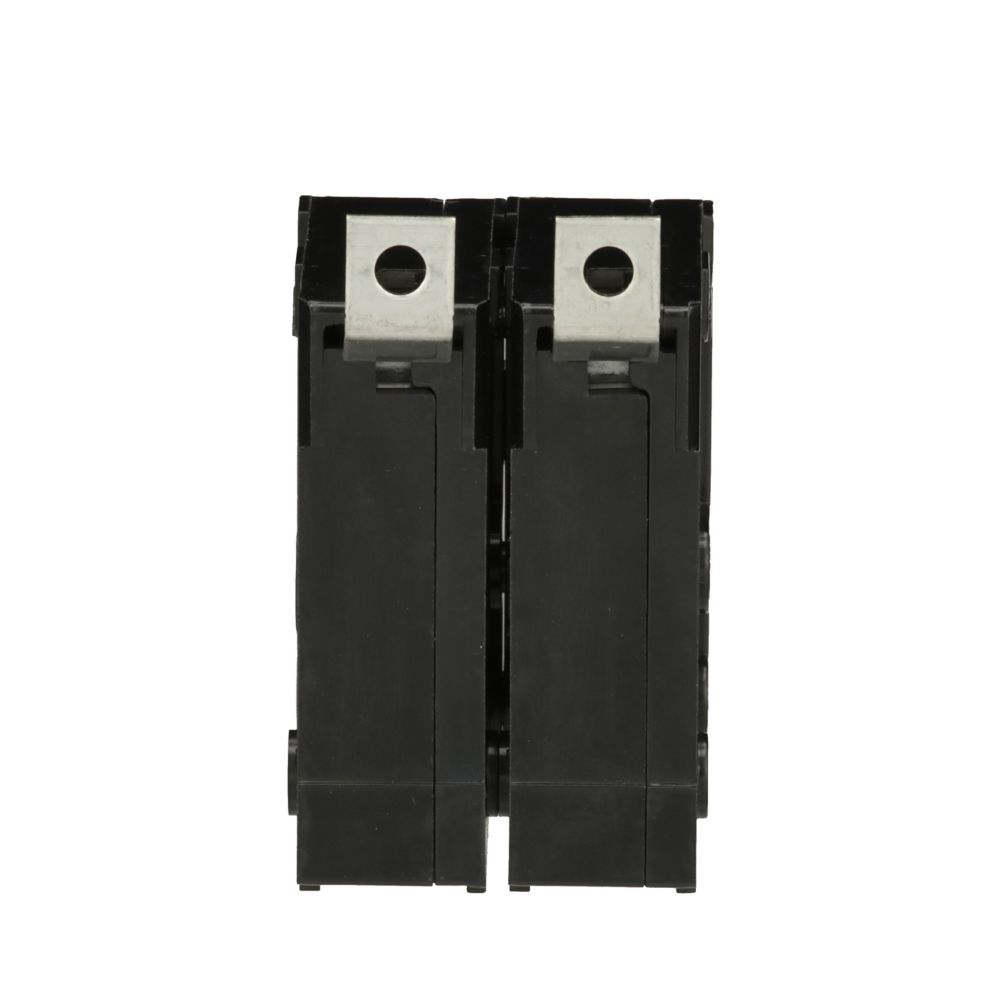

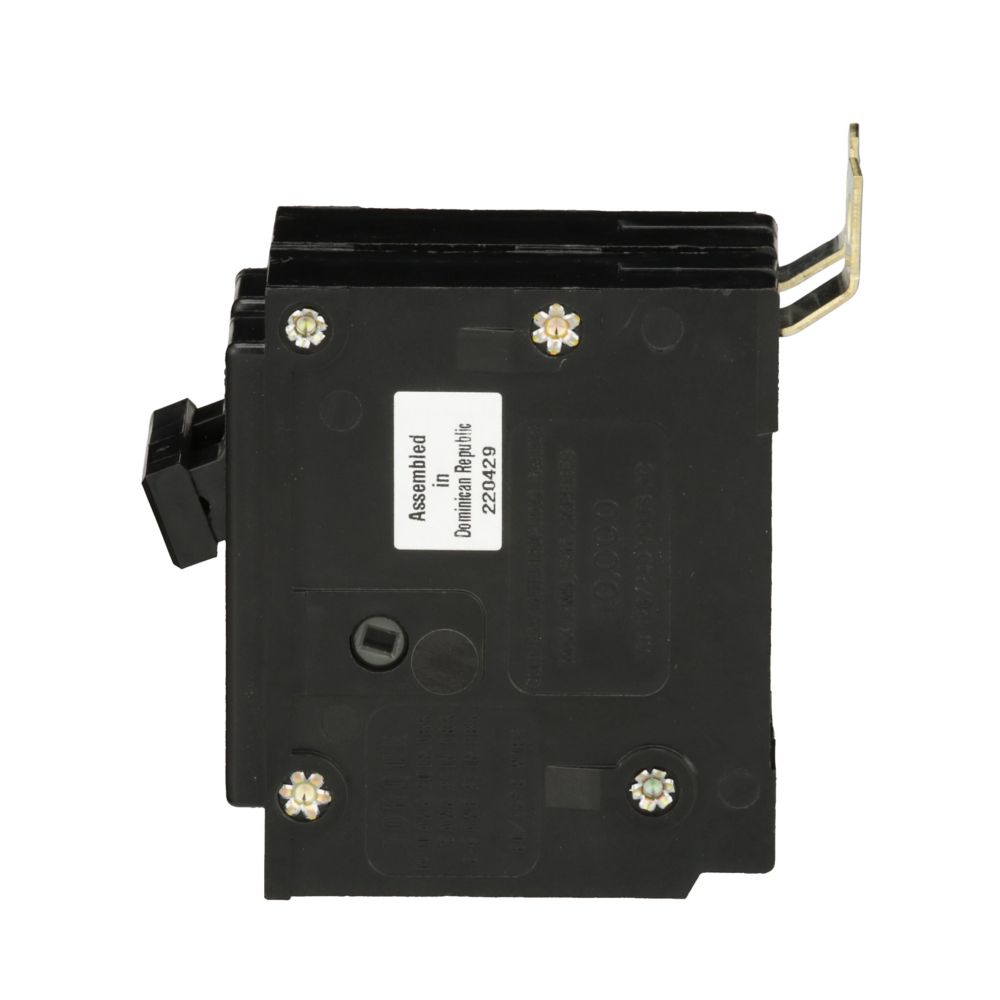

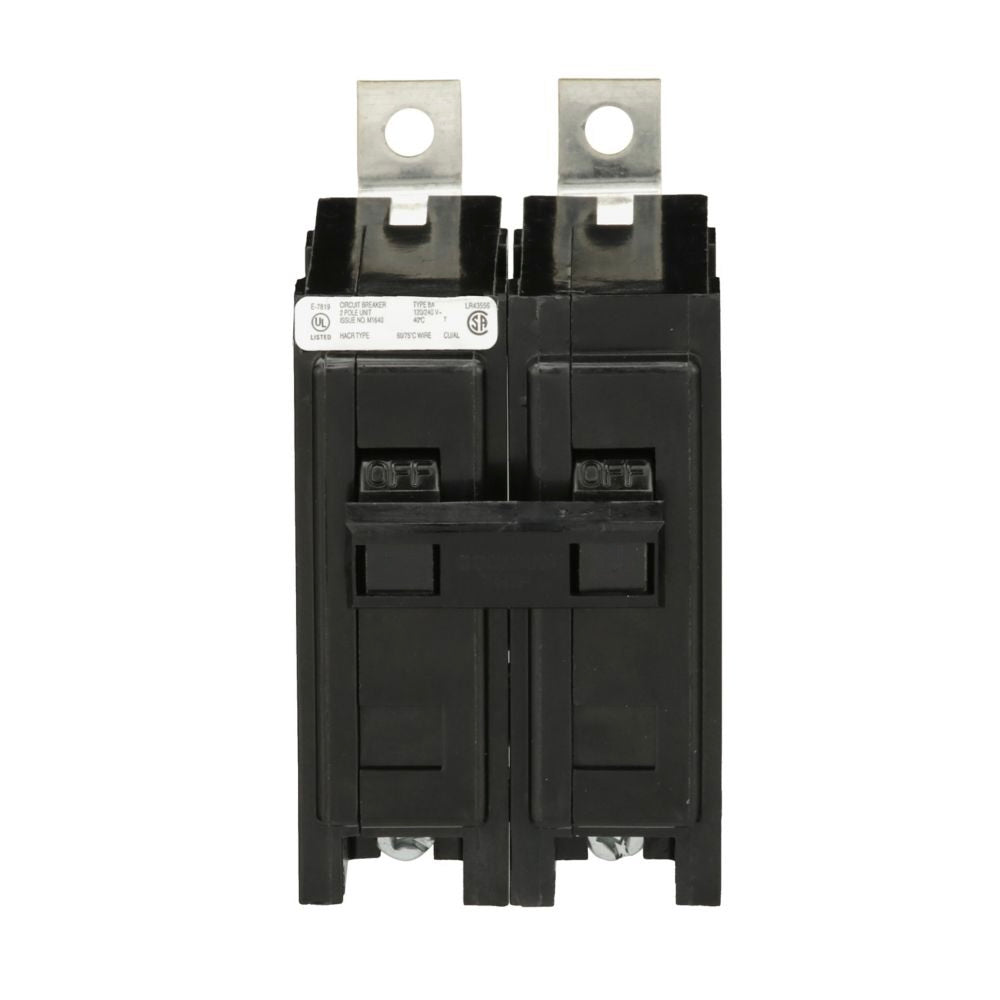

EATON 2-POLE 100A BOLT-ON

A 100 Amp, double-pole Eaton breaker that uses a bolt-on mounting (often the Quicklag Type BAB series) for installation in panelboards. It supports 120/240 V AC circuits at 100A and typically carries a 10 kAIC interrupt rating. The bolt-on connection ensures a secure attachment to the bus bar, and the breaker’s lugs are sized for large conductors (on the order of #4 up to 1/0 AWG) suitable for feeder or subpanel applications.

Product Specifications

Brand / Manufacturer : Eaton

Type : BA

Category : Circuit Breaker

Cat. No : BAB2100

Poles : 2-Pole

Amperage (A) : 100

Voltage (V) : 120/240

Connection Type : Bolt-on

Interrupting Current (AIC)  : 10,000

Dimensions (Inches) L x W x H : 2.906 in (L) x 2.0 in (W) x 2.906 in (H)

Weight (Lbs) : 0.55
