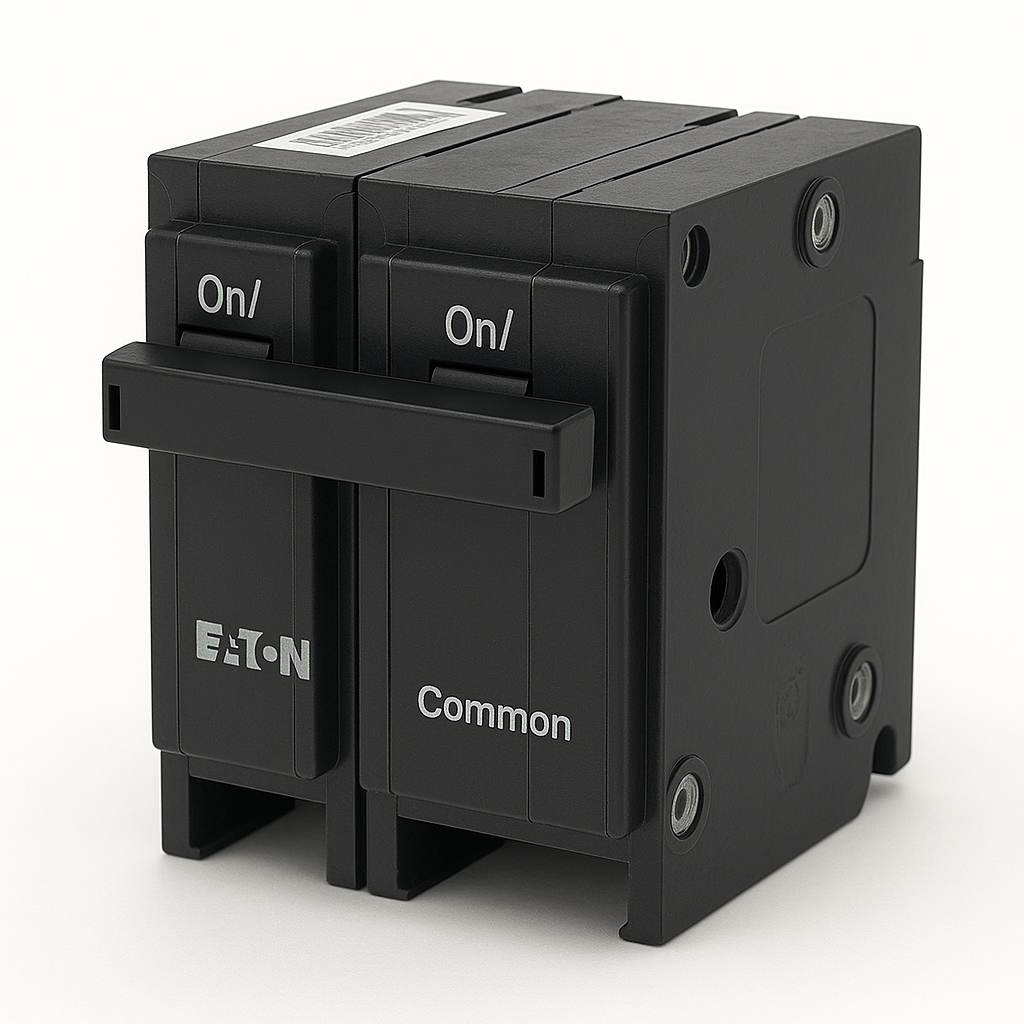

EATON 2-POLE 110A

A 110 Amp, 2-pole Eaton circuit breaker (commonly a Type BR plug-on model) used for high-load residential applications. It is rated for 110 A at 120/240 V AC with a 10 kA interrupting capacity, and it snaps into Eaton BR-series breaker panels. This breaker accepts heavy gauge wires (about #4 AWG to 1/0 AWG Cu/Al) to deliver power to large equipment or subpanels.

Product Specifications

Brand / Manufacturer : Eaton

Type : BR

Category : Circuit Breaker

Cat. No : BR2110

Poles : 2-Pole

Amperage (A) : 110

Voltage (V) : 120/240

Connection Type : Plug-in

Interrupting Current (AIC)  : 10,000

Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)

Weight (Lbs) : 0.6
