EATON 2-POLE 125A
Regular price
$149.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

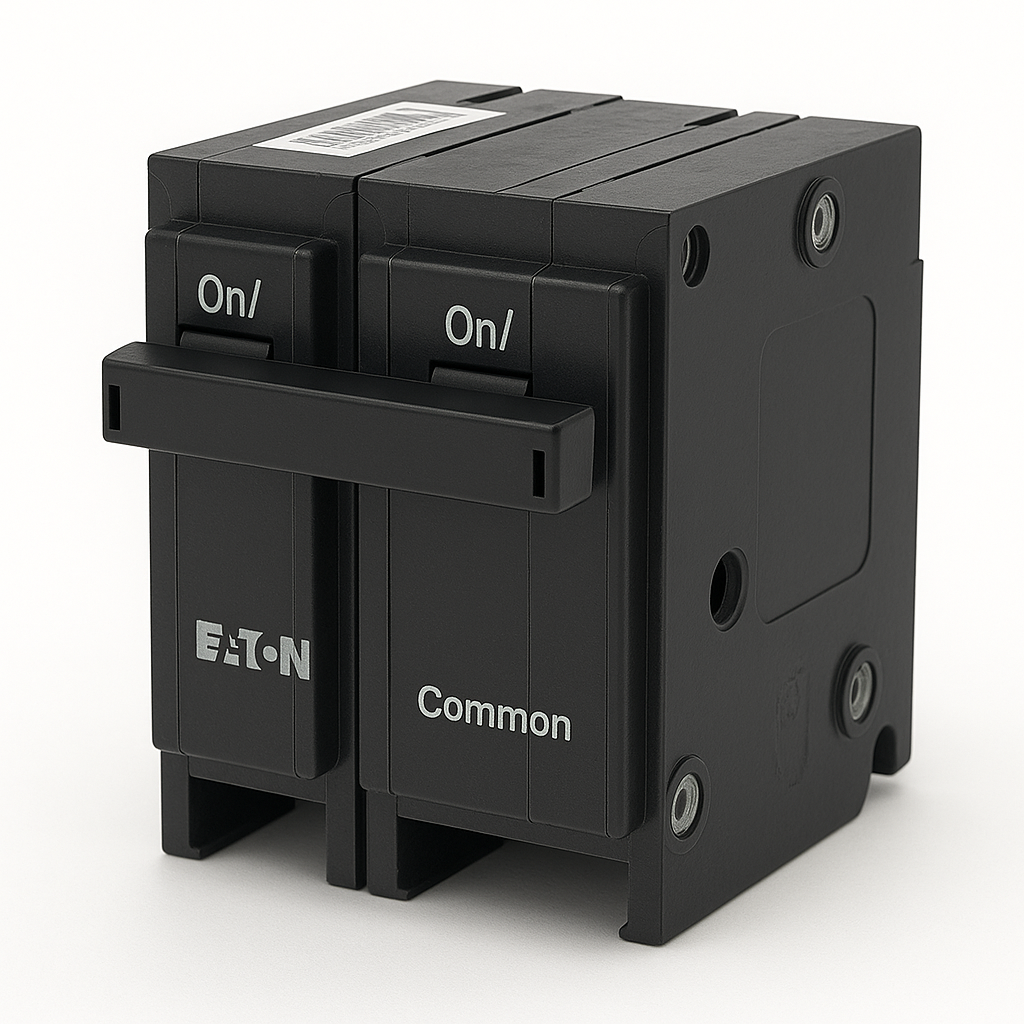

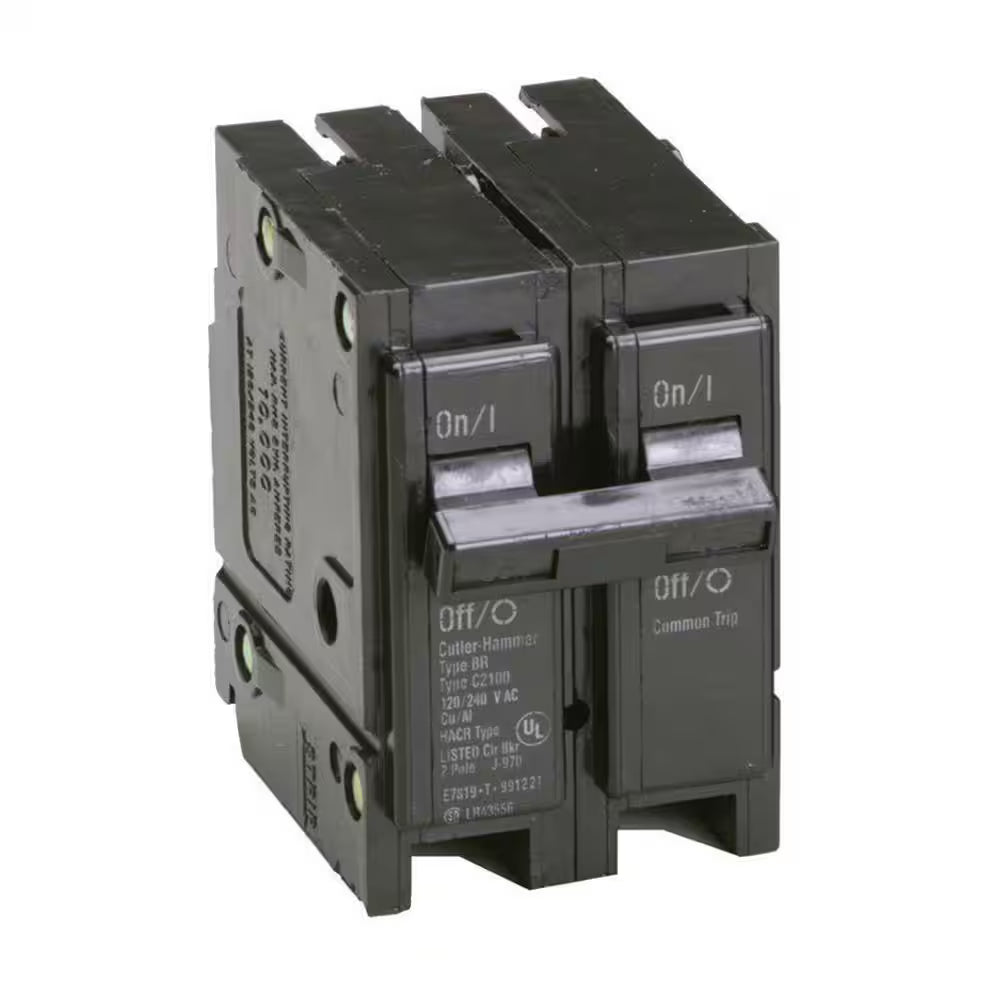

A 125 Amp, double-pole Type BR breaker from Eaton for BR-series load centers. It’s rated at 120/240 VAC with a 10 kAIC interrupting rating, mounts in a 1-inch per pole slot (plug-on style), and accepts wire sizes from #4 AWG up to 2/0 AWG.
Product Specifications
Brand / Manufacturer : Eaton
Type : BR
Category : Circuit Breaker
Cat. No : BR2125
Poles : 2-Pole
Amperage (A) : 125
Voltage (V) : 120/240
Connection Type : Plug-in
Interrupting Current (AIC) : 10,000
Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)
Weight (Lbs) : 0.6
