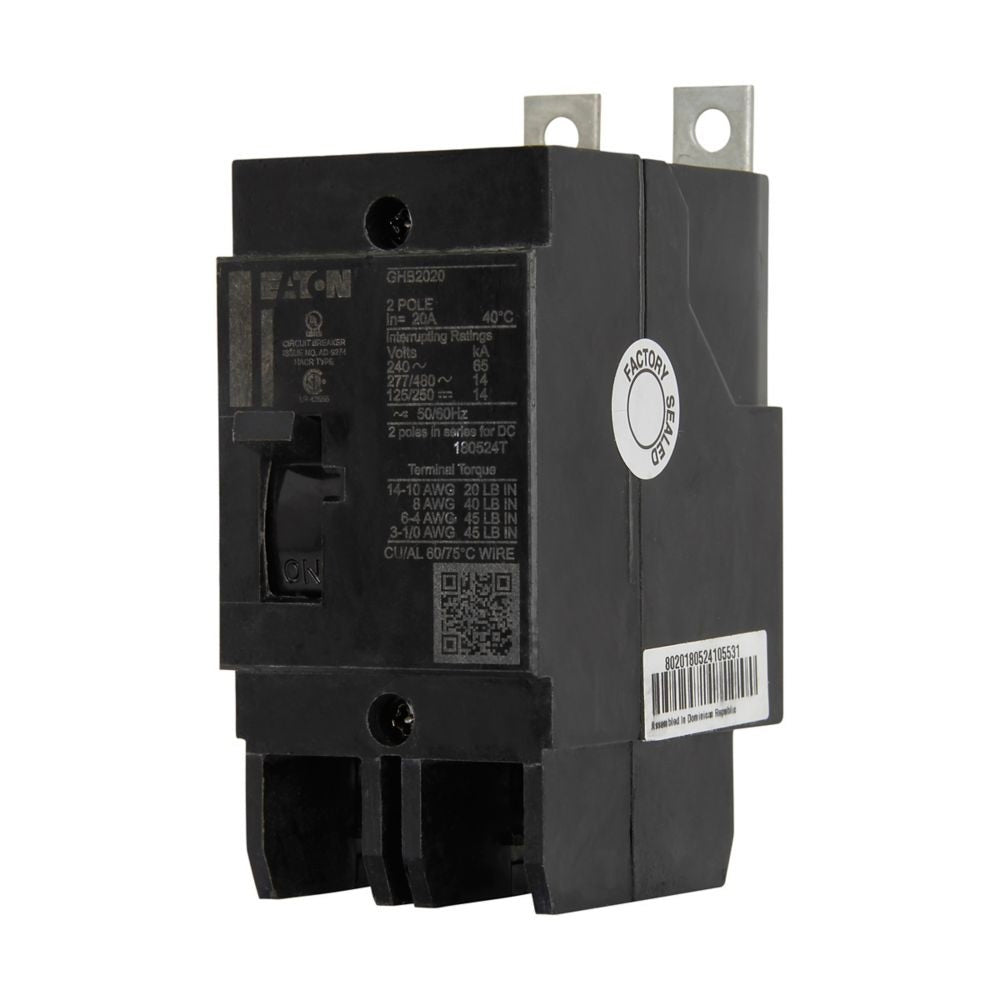

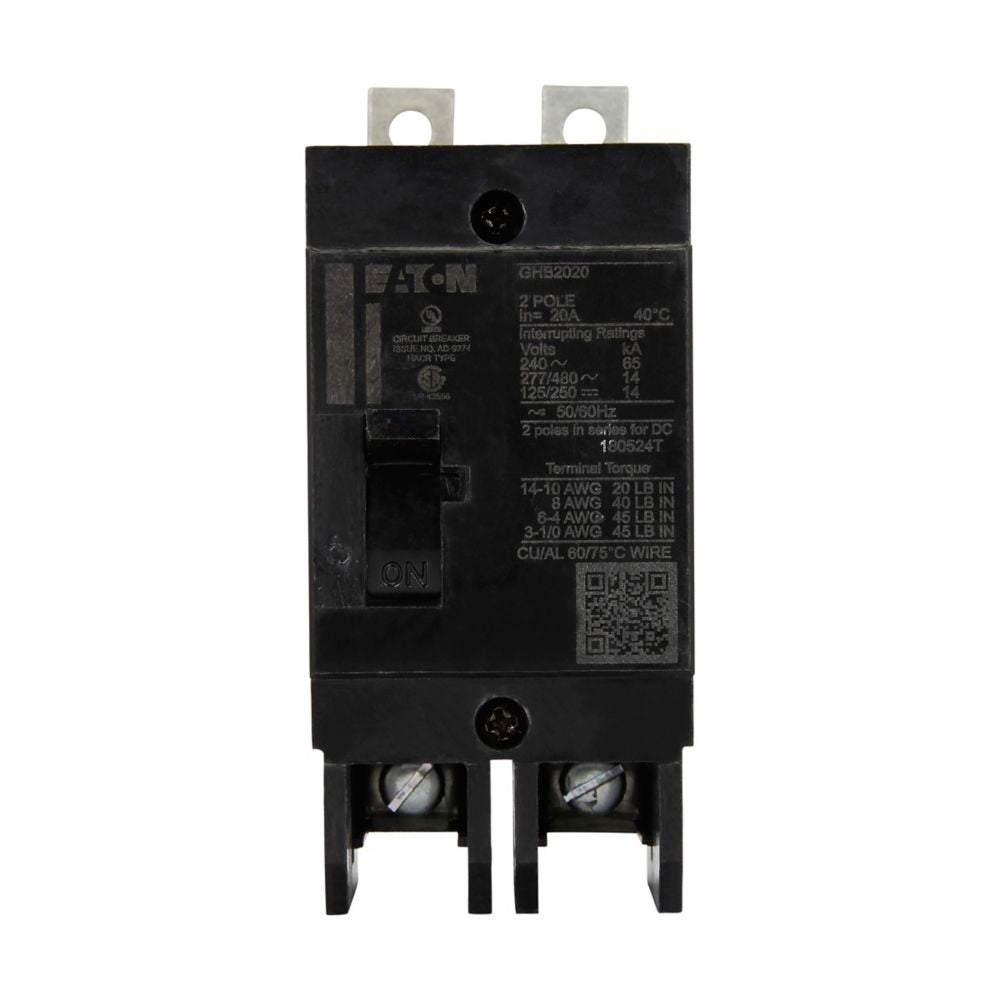

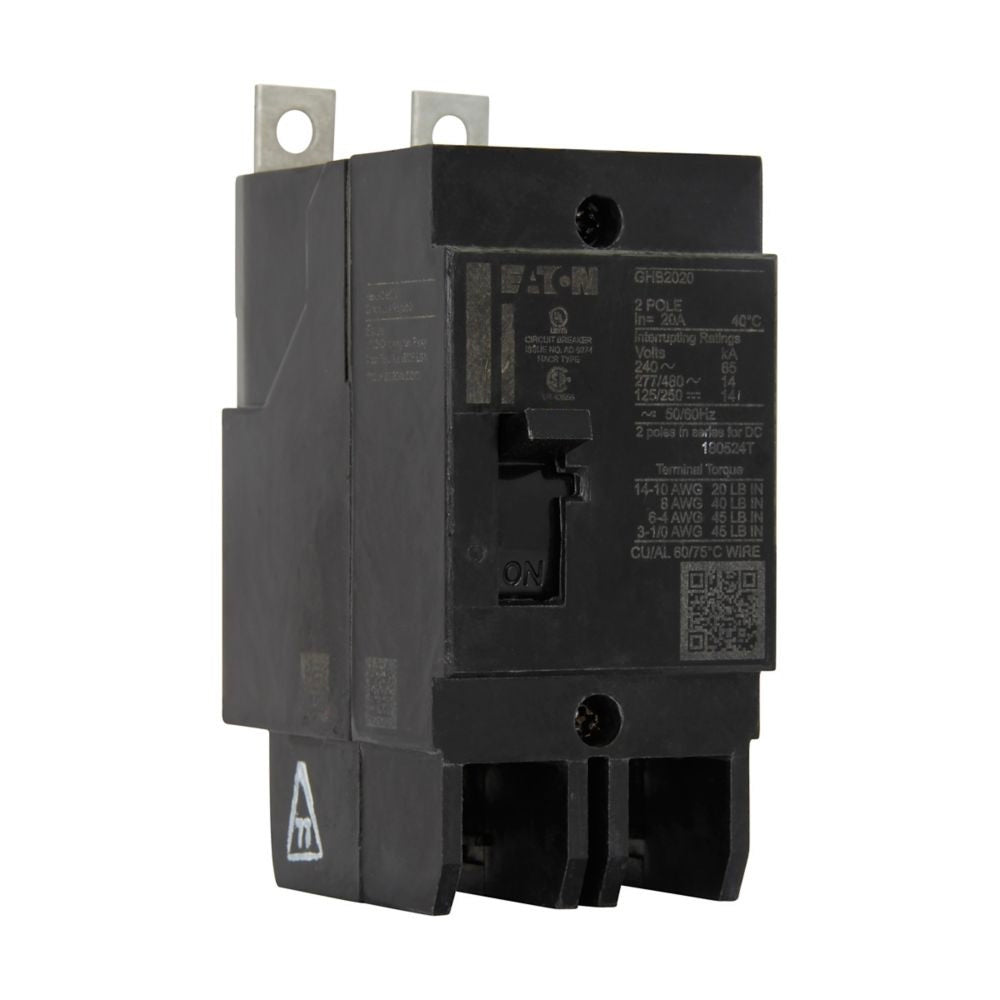

EATON 2-POLE 20A BOLT-ON 277V MCCB

A 20 Amp, two-pole Eaton Series C Type GHB molded case circuit breaker designed for bolt-on use in three-phase 277/480 V panelboards. It is rated for up to 480Y/277 VAC (and 125/250 VDC) with a 14 kA interrupting capacity at that voltage (65 kA at 240 VAC), and it accepts conductors roughly from #10 AWG up to 1/0 AWG.

Product Specifications

Brand / Manufacturer : Eaton

Type : GHB

Category : Circuit Breaker

Cat. No : GHB2020

Poles : 2-Pole

Amperage (A) : 20

Voltage (V) : 277/480

Connection Type : Bolt-on

Interrupting Current (AIC)  : 10,000

Dimensions (Inches) L x W x H : 2.63 in (L) x 2.0 in (W) x 4.0in (H)

Weight (Lbs) : 0.95
