EATON 2-POLE 30A
Regular price
$28.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

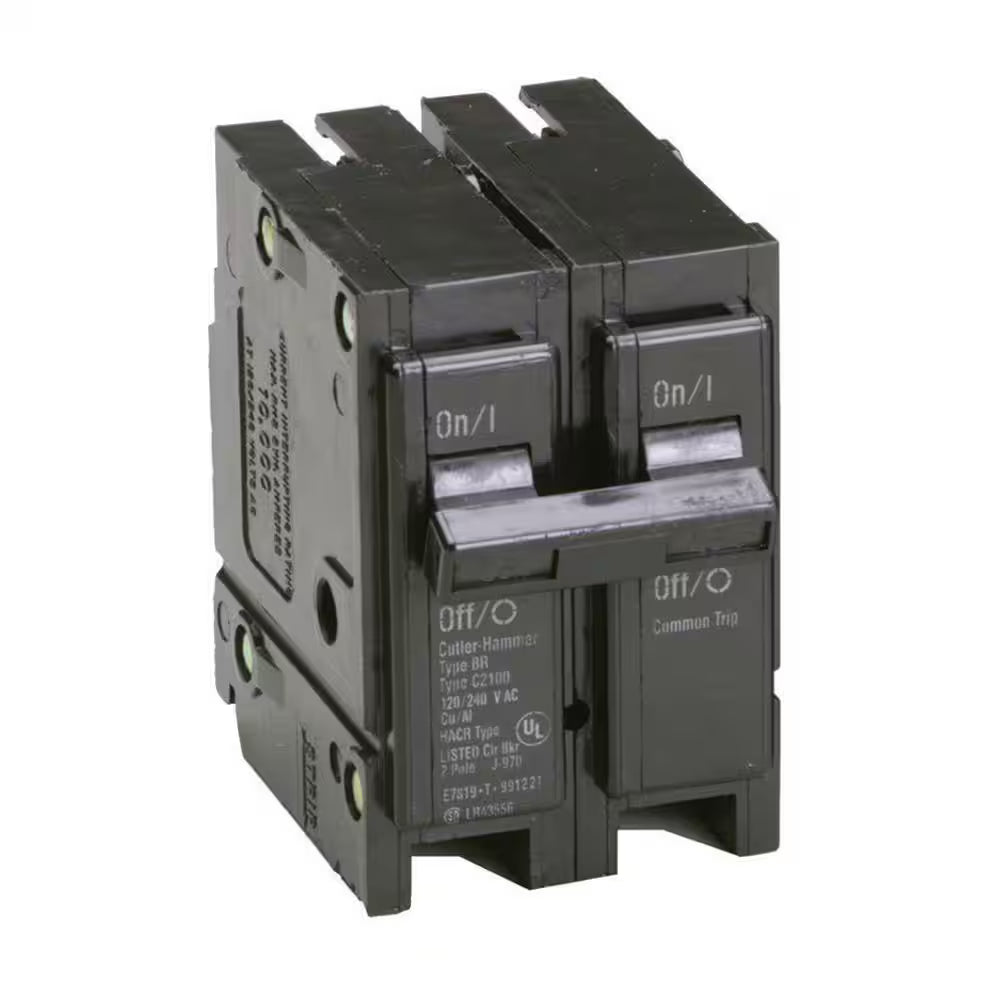

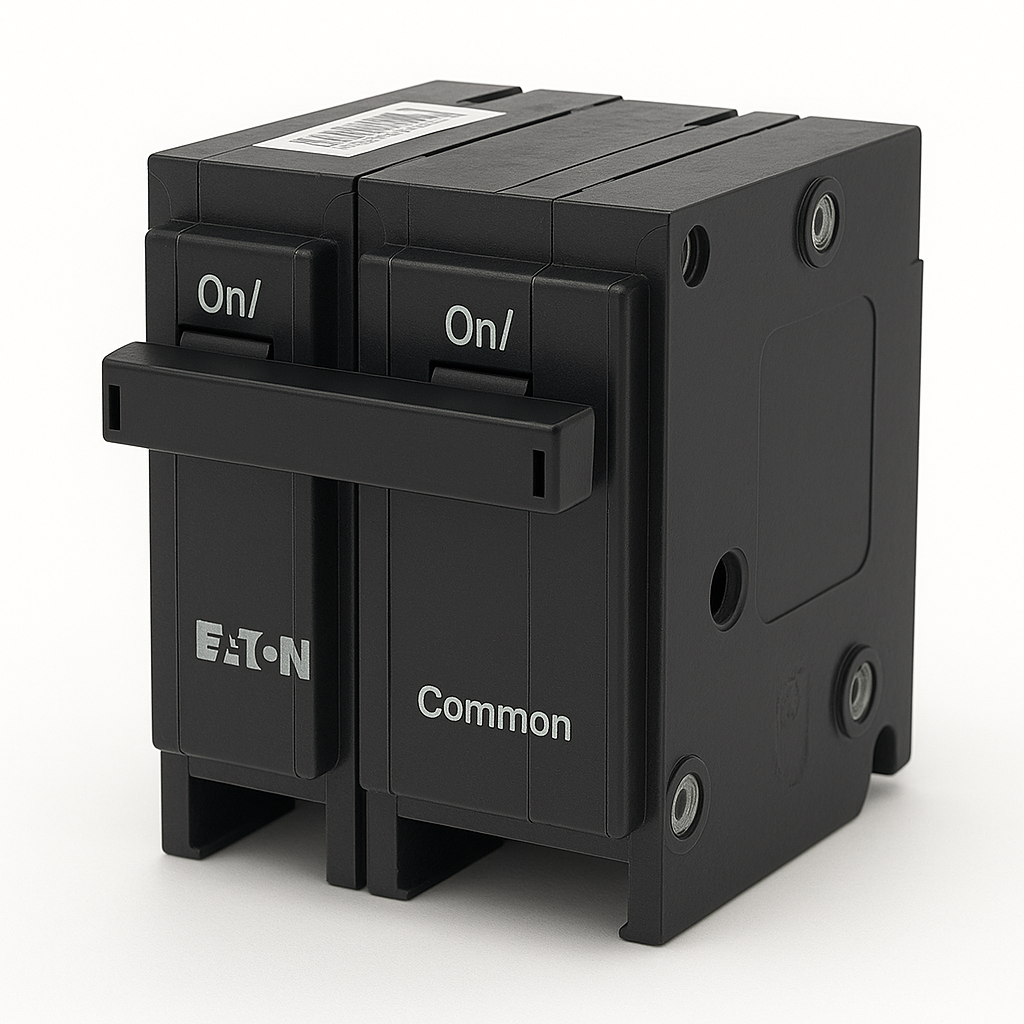

A 30 Amp, double-pole Type BR breaker by Eaton used in residential and light commercial load centers. It is a plug-on style breaker rated for 120/240 VAC with a 10 kAIC short-circuit rating, and it accepts branch circuit conductors ranging from #14 to #4 AWG .
Product Specifications
Brand / Manufacturer : Eaton
Type : BR
Category : Circuit Breaker
Cat. No : BR230
Poles : 2-Pole
Amperage (A) : 30
Voltage (V) : 120/240
Connection Type : Plug-in
Interrupting Current (AIC) : 10,000
Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)
Weight (Lbs) : 0.6
