EATON 2-POLE 40A
Regular price
$28.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

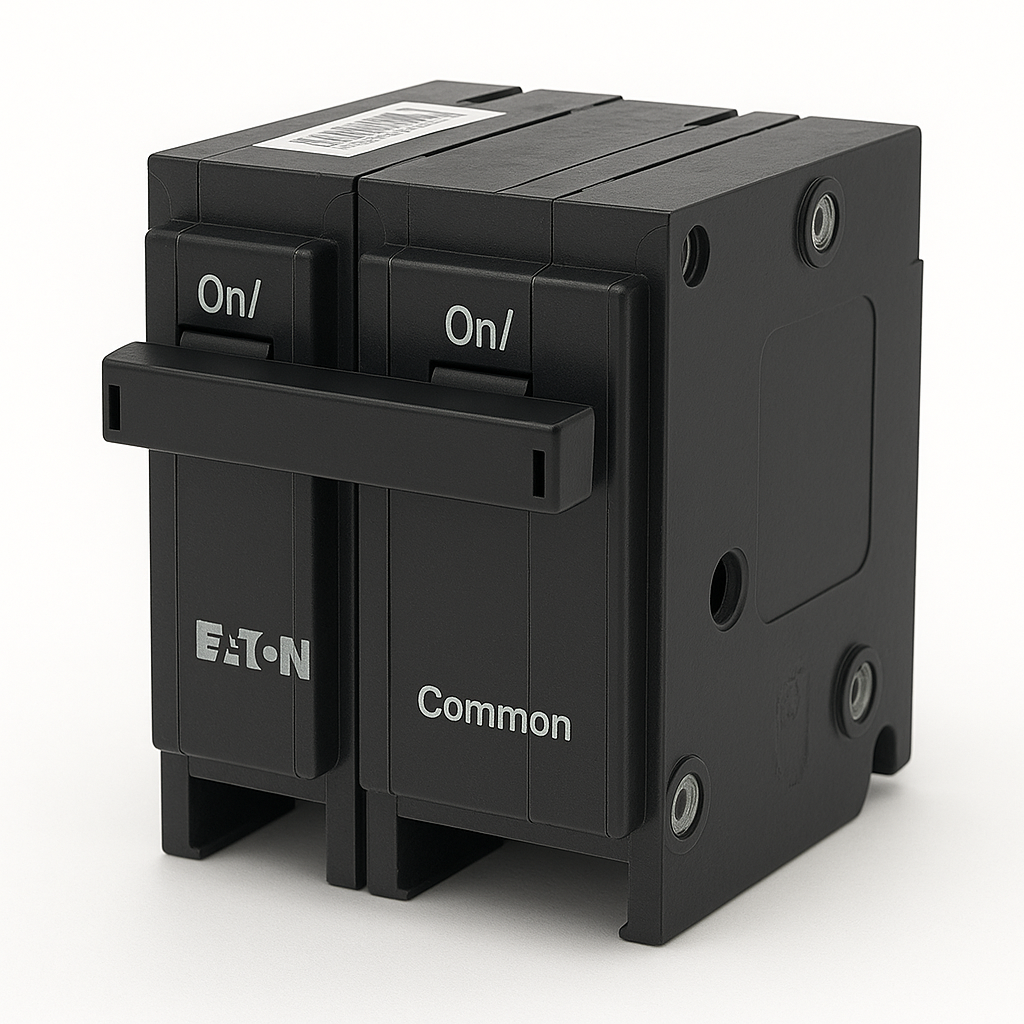

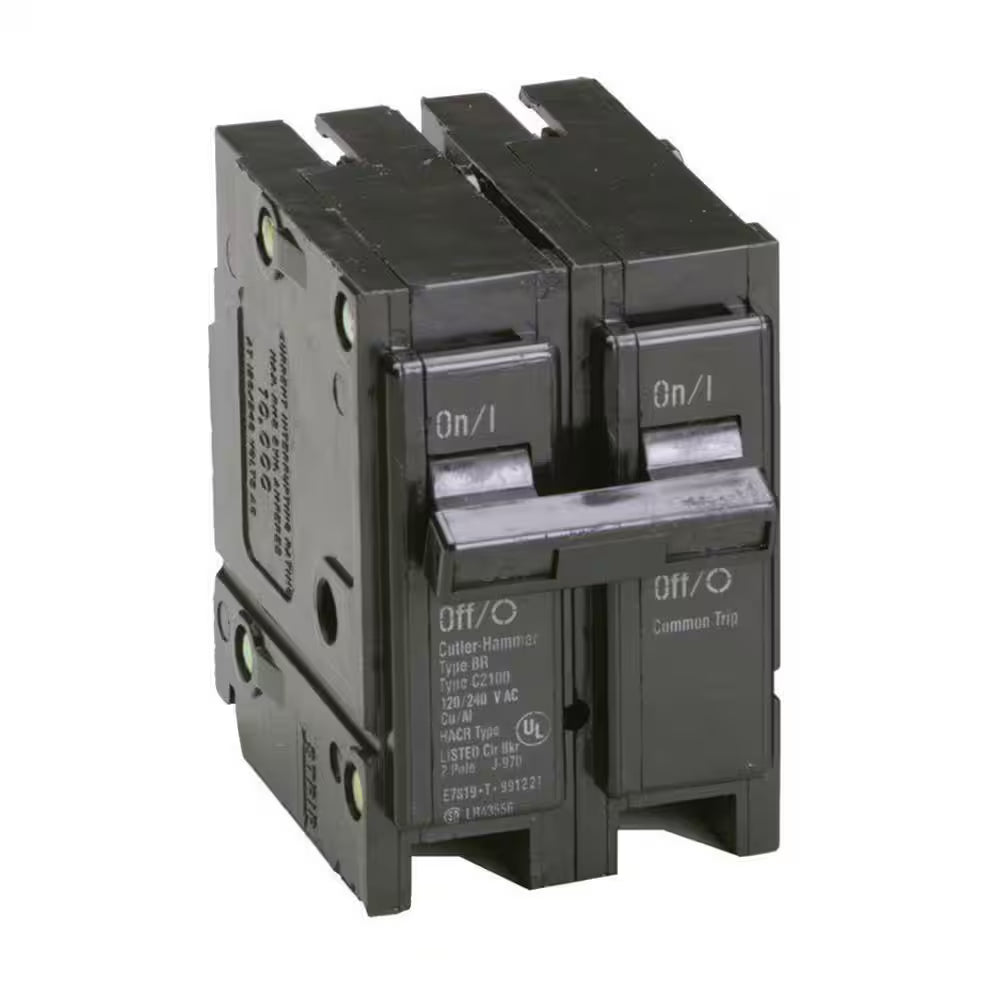

A 40 Amp two-pole Eaton Type BR thermal-magnetic breaker for 120/240 VAC service. This plug-on breaker features common internal trip and is rated 10 kAIC, with terminals accepting #14–4 AWG Cu/Al wiring. It fits Eaton Type BR load centers and compatible Bryant or Challenger panels.
Product Specifications
Brand / Manufacturer : Eaton
Type : BR
Category : Circuit Breaker
Cat. No : BR240
Poles : 2-Pole
Amperage (A) : 40
Voltage (V) : 120/240
Connection Type : Plug-in
Interrupting Current (AIC) : 10,000
Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)
Weight (Lbs) : 0.6
