EATON 2-POLE 45A
Regular price
$32.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

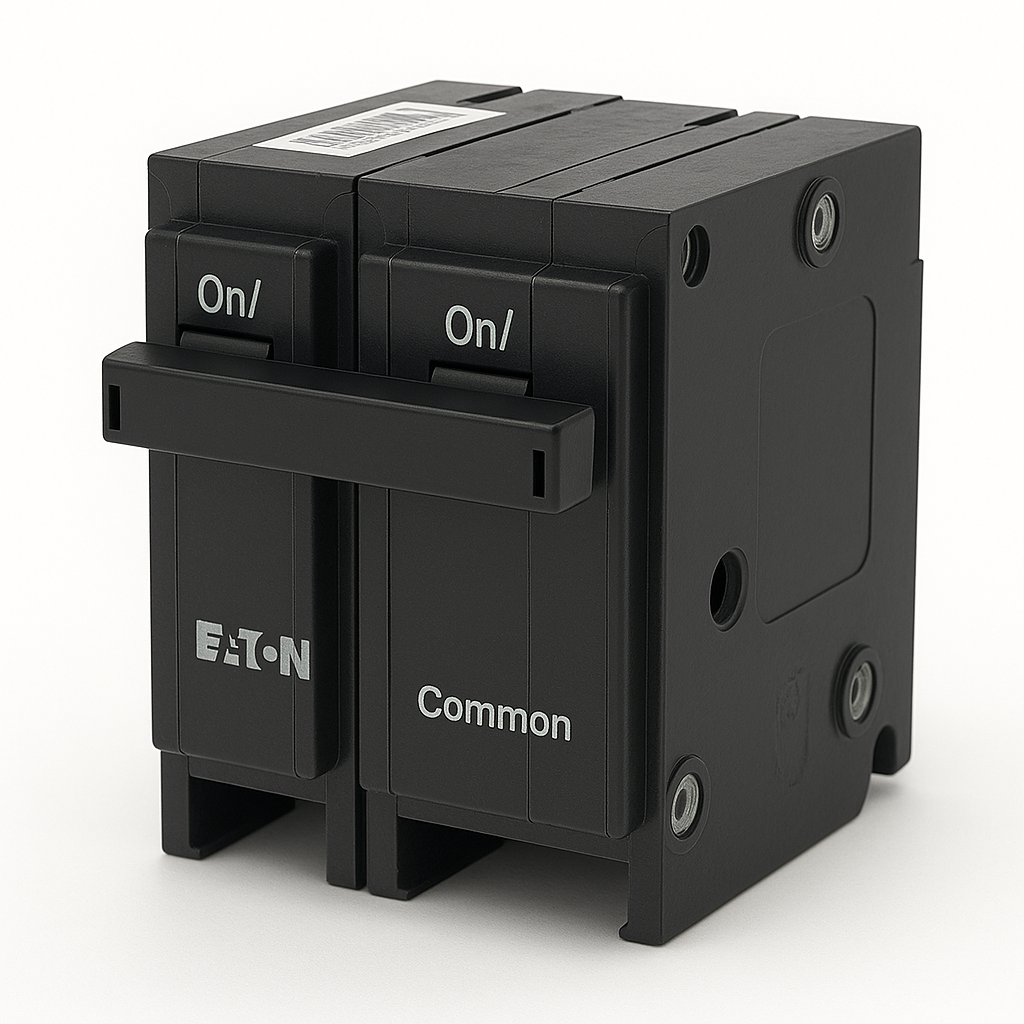

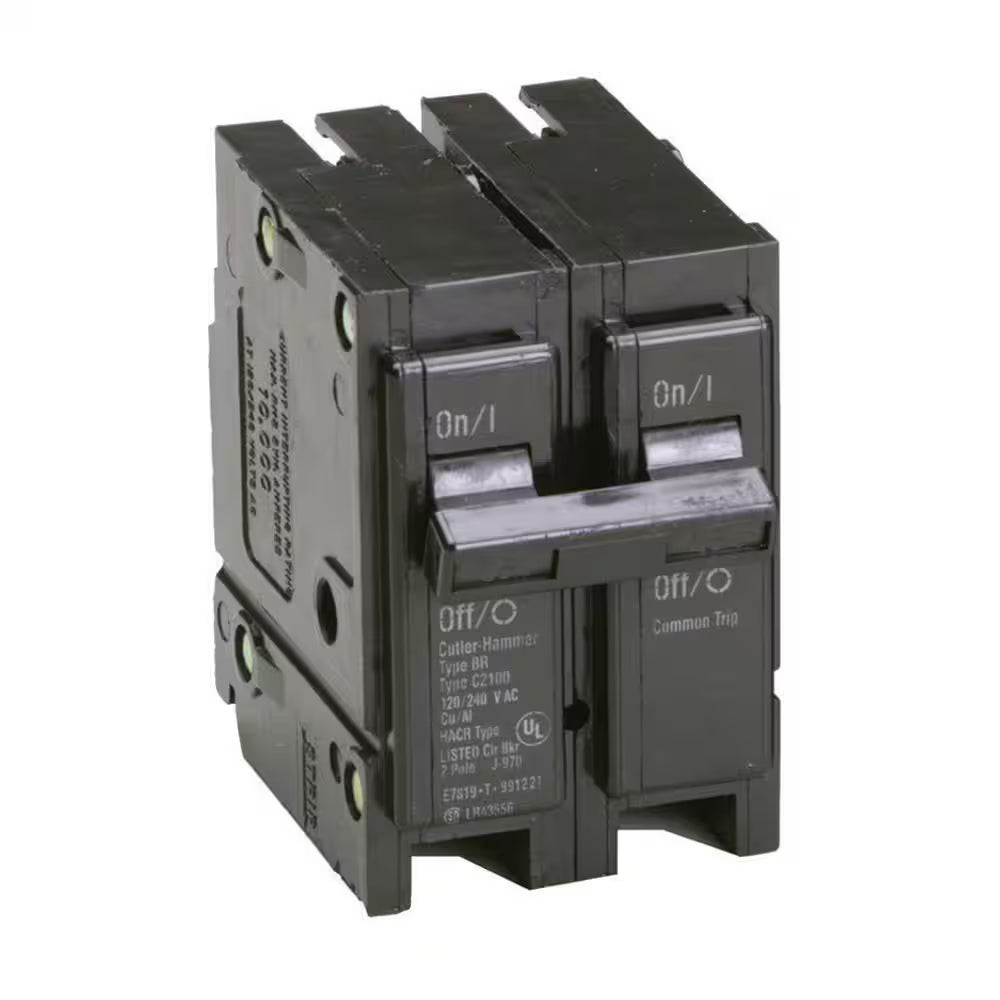

A 45 Amp two-pole Eaton Type BR plug-on circuit breaker rated for 120/240 VAC. It has a 10 kAIC short-circuit rating and accepts #14–4 AWG Cu/Al wires. Fits Eaton BR loadcenters and provides simultaneous trip protection across both poles.
Product Specifications
Brand / Manufacturer : Eaton
Type : BR
Category : Circuit Breaker
Cat. No : BR245
Poles : 2-Pole
Amperage (A) : 45
Voltage (V) : 120/240
Connection Type : Plug-in
Interrupting Current (AIC) : 10,000
Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)
Weight (Lbs) : 0.6
