EATON 2-POLE 80A
Regular price
$79.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

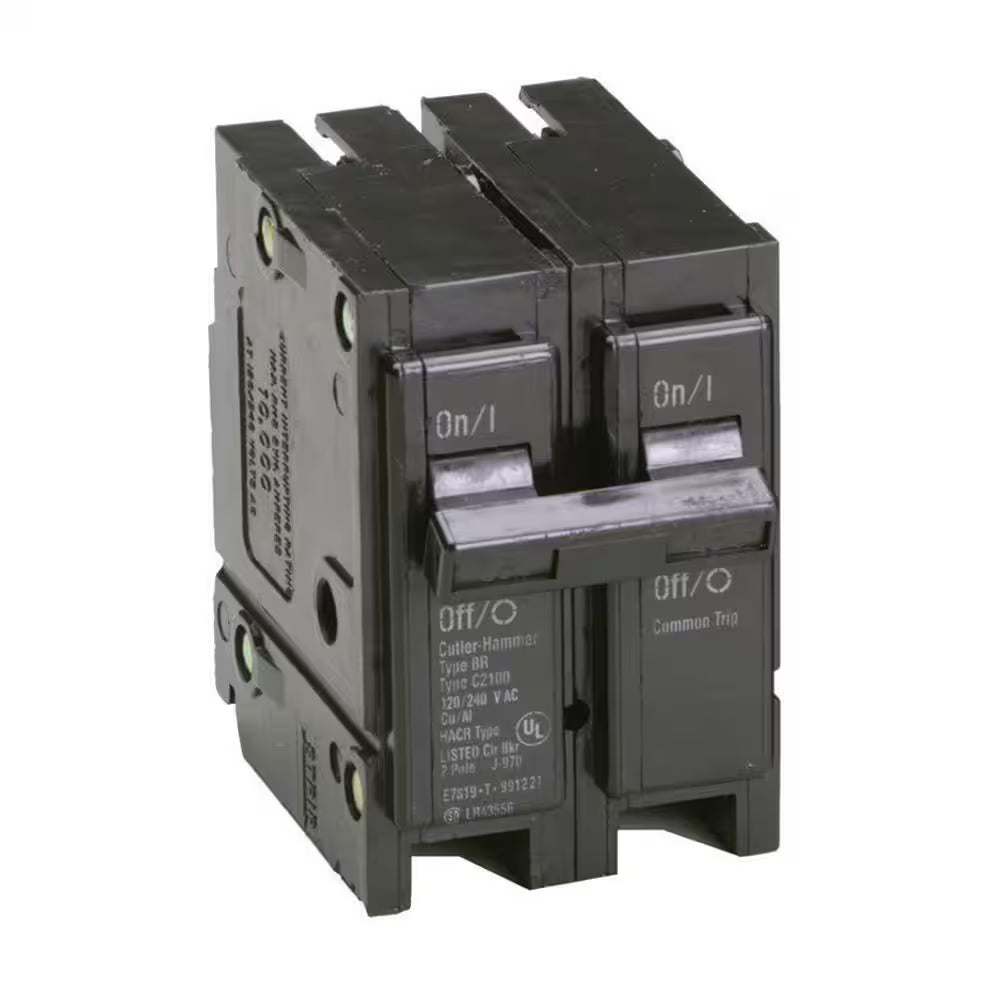

An 80 Amp, double-pole Eaton Type BR breaker made for BR series load centers (Cutler-Hammer/Eaton). It’s rated for 120/240 V AC with a 10 kA interrupting capacity and mounts via a plug-on connection to the panel’s bus. This breaker supports copper or aluminum conductors from about #8 AWG up to 1/0 AWG.
Product Specifications
Brand / Manufacturer : Eaton
Type : BR
Category : Circuit Breaker
Cat. No : BR280
Poles : 2-Pole
Amperage (A) : 80
Voltage (V) : 120/240
Connection Type : Plug-in
Interrupting Current (AIC) : 10,000
Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)
Weight (Lbs) : 0.6
