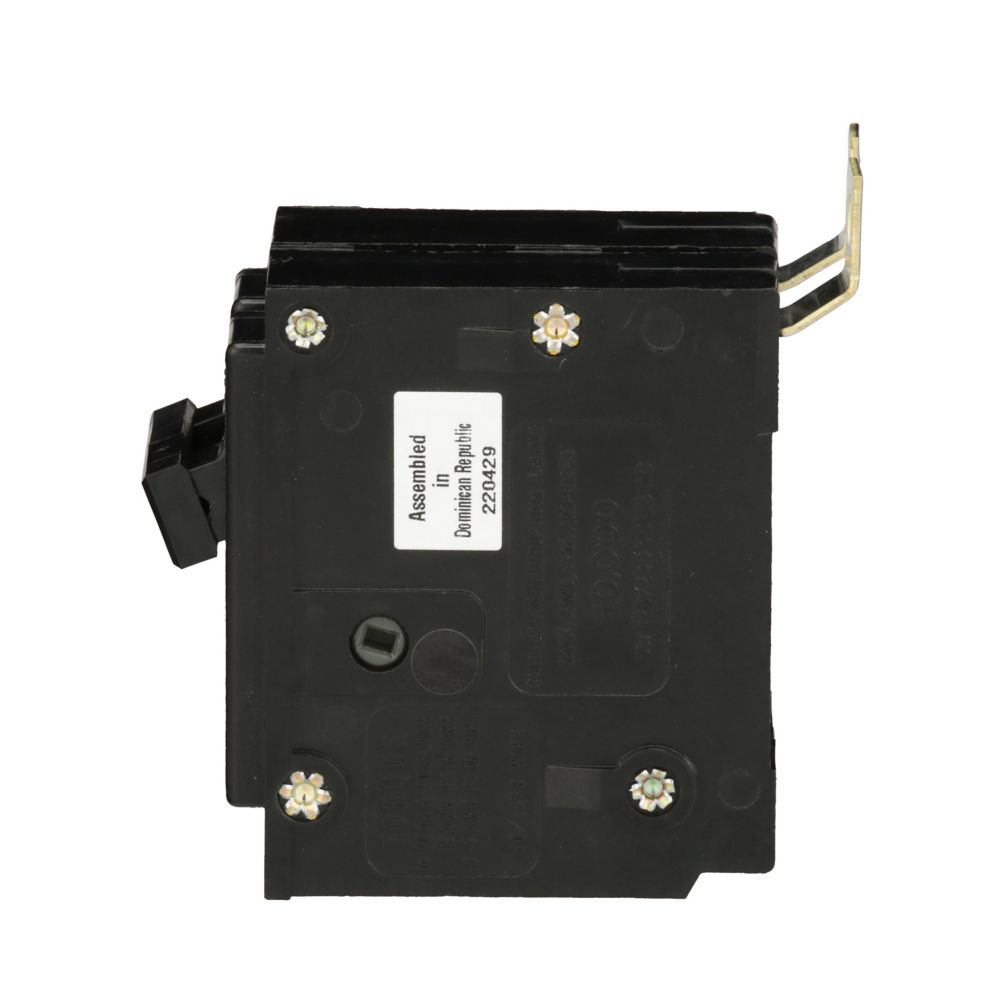

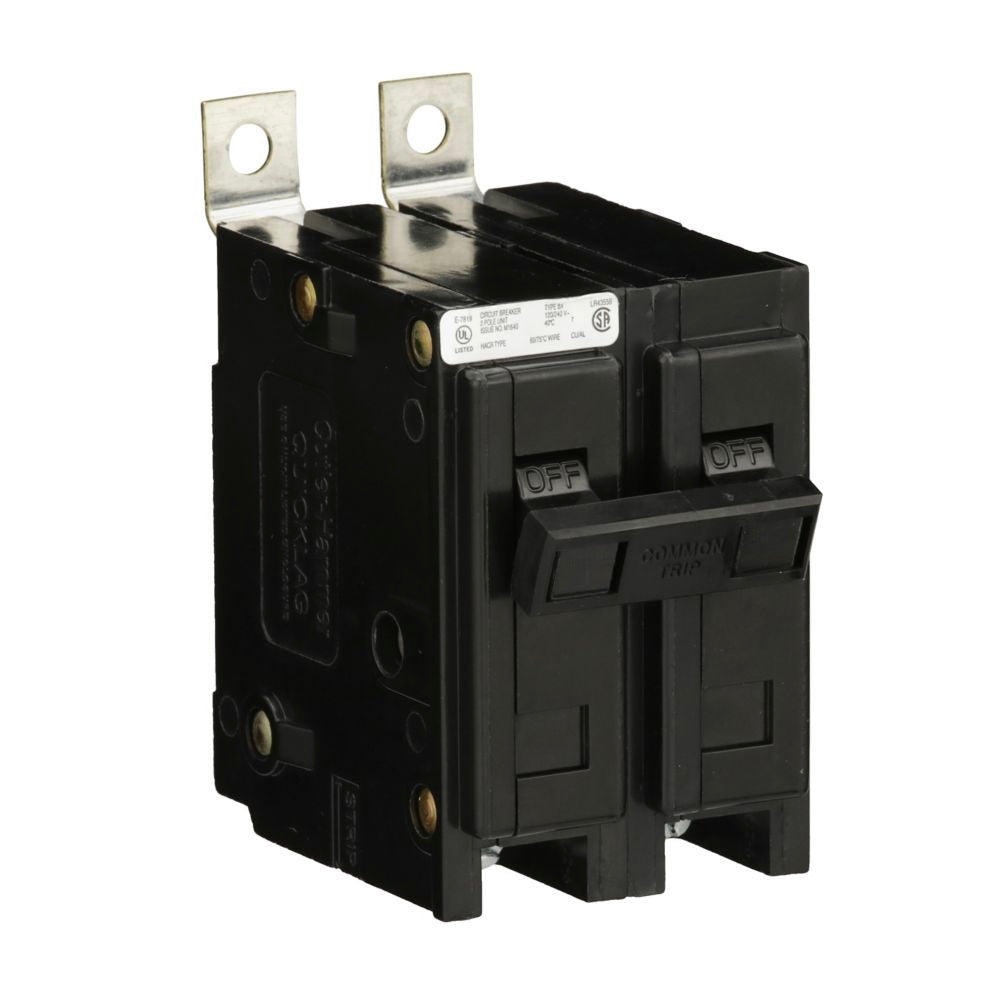

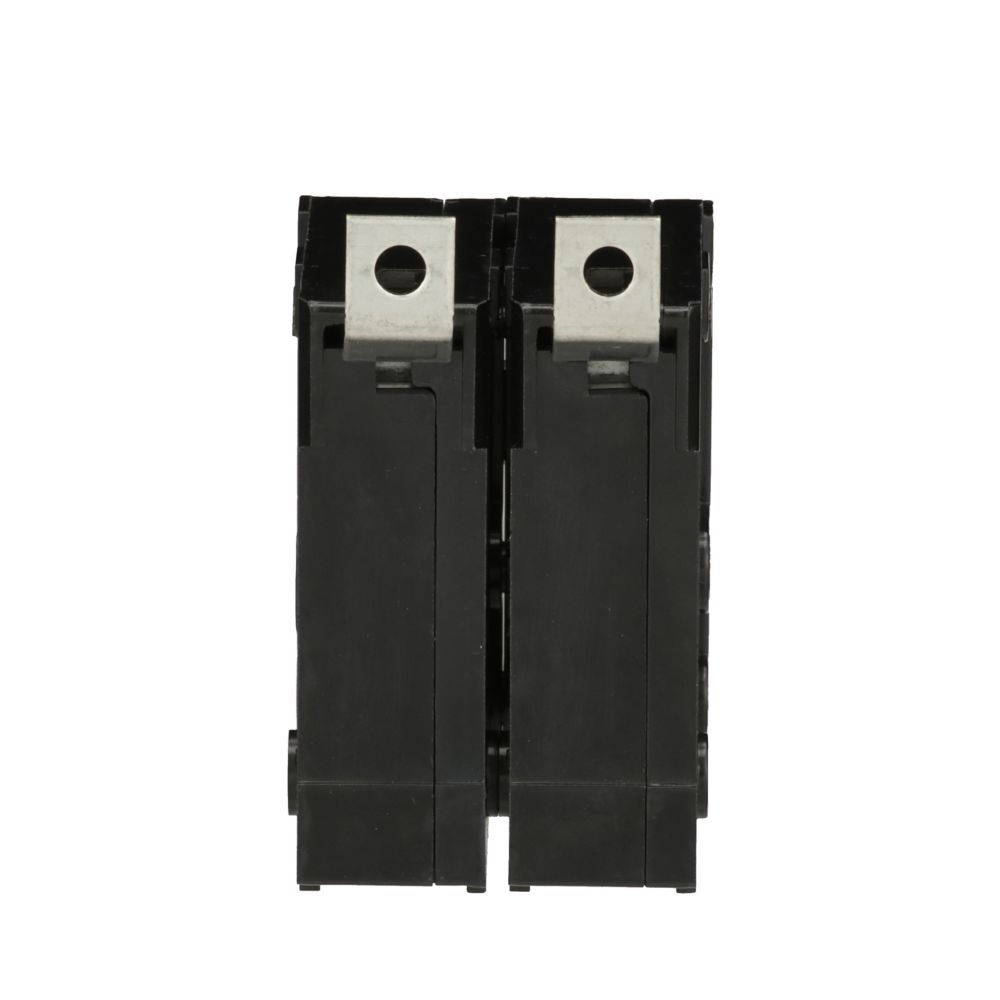

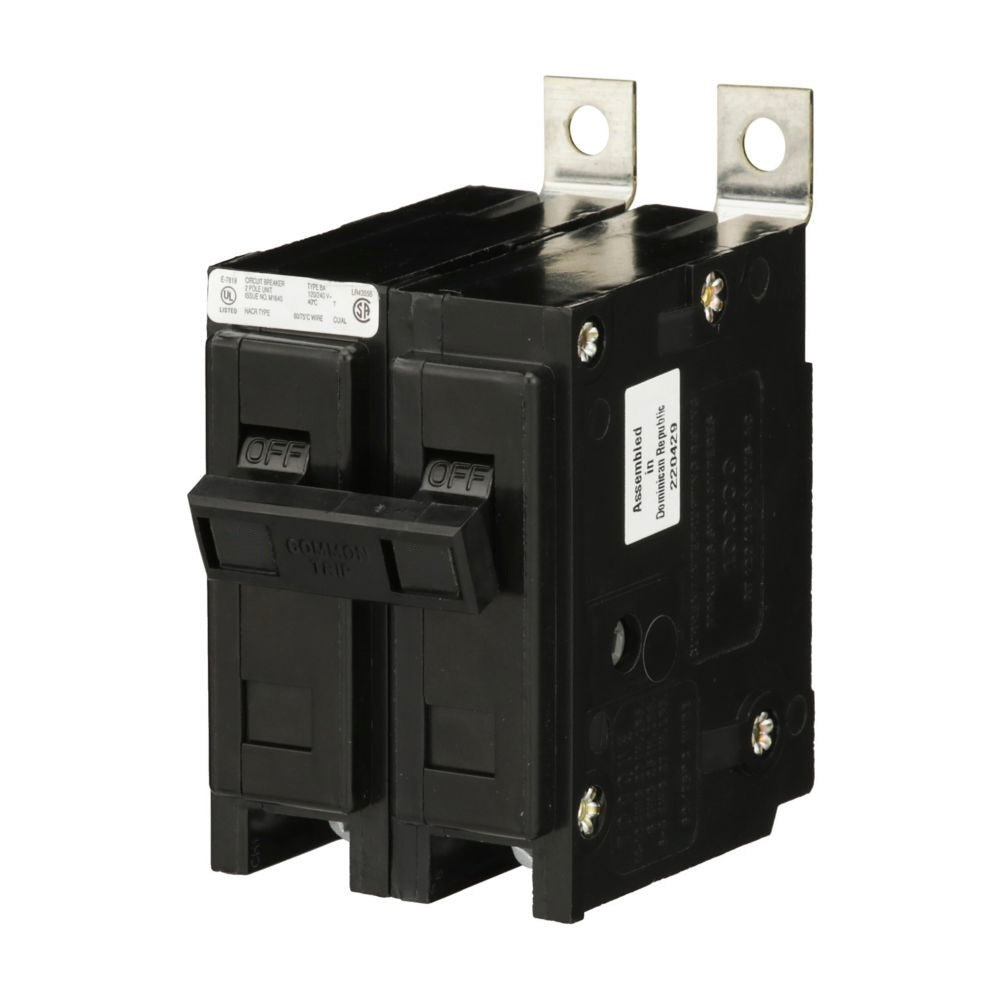

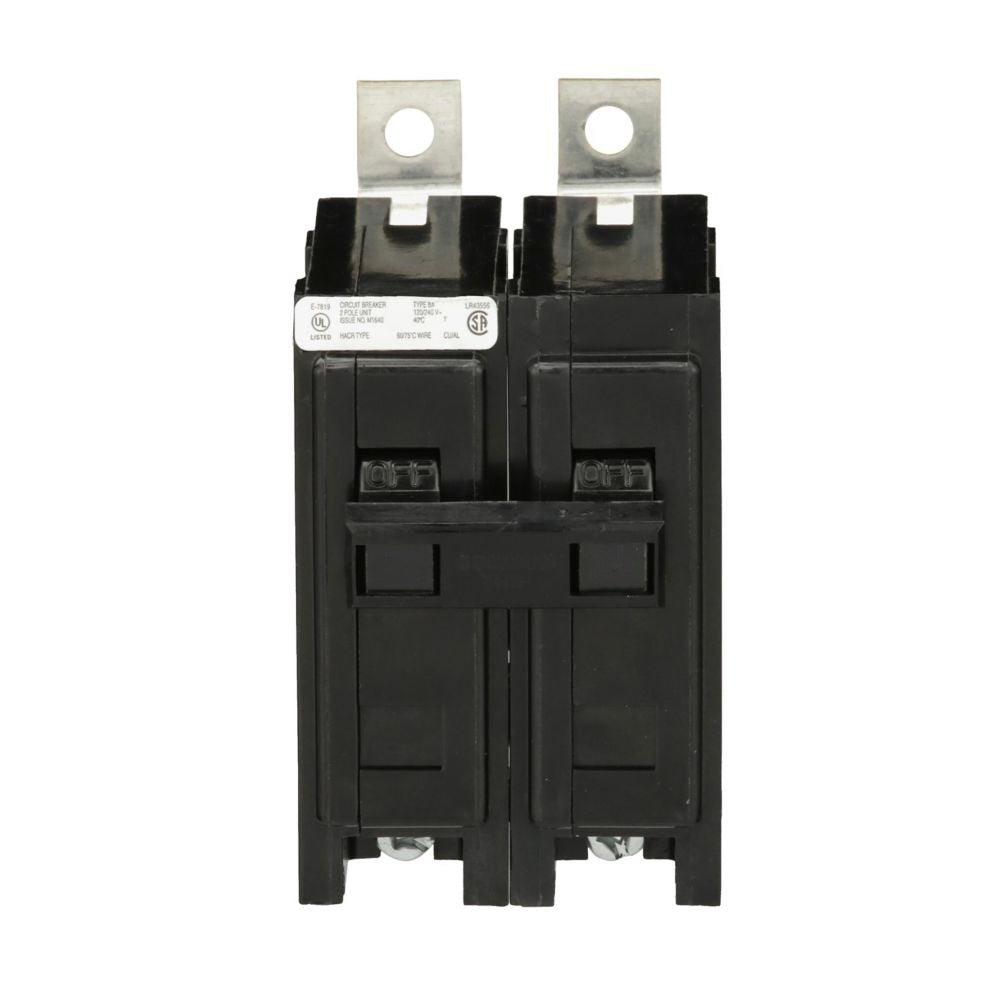

EATON 2-POLE 80A BOLT-ON

An 80 Amp, two-pole Eaton Type BAB industrial breaker that bolts onto the bus of compatible Eaton panelboards. It is rated for 120/240 V AC and provides a 10 kA interrupting capacity. The breaker includes a load-side lug for the branch circuit and accepts copper or aluminum wires (approximately #8 to 1/0 AWG).

Product Specifications

Brand / Manufacturer : Eaton

Type : BA

Category : Circuit Breaker

Cat. No : BAB2080

Poles : 2-Pole

Amperage (A) : 80

Voltage (V) : 120/240

Connection Type : Bolt-on

Interrupting Current (AIC) : 10,000

Dimensions (Inches) L x W x H : 2.906 in (L) x 2.0 in (W) x 2.906 in (H)

Weight (Lbs) : 0.55
