EATON 2-POLE 90A

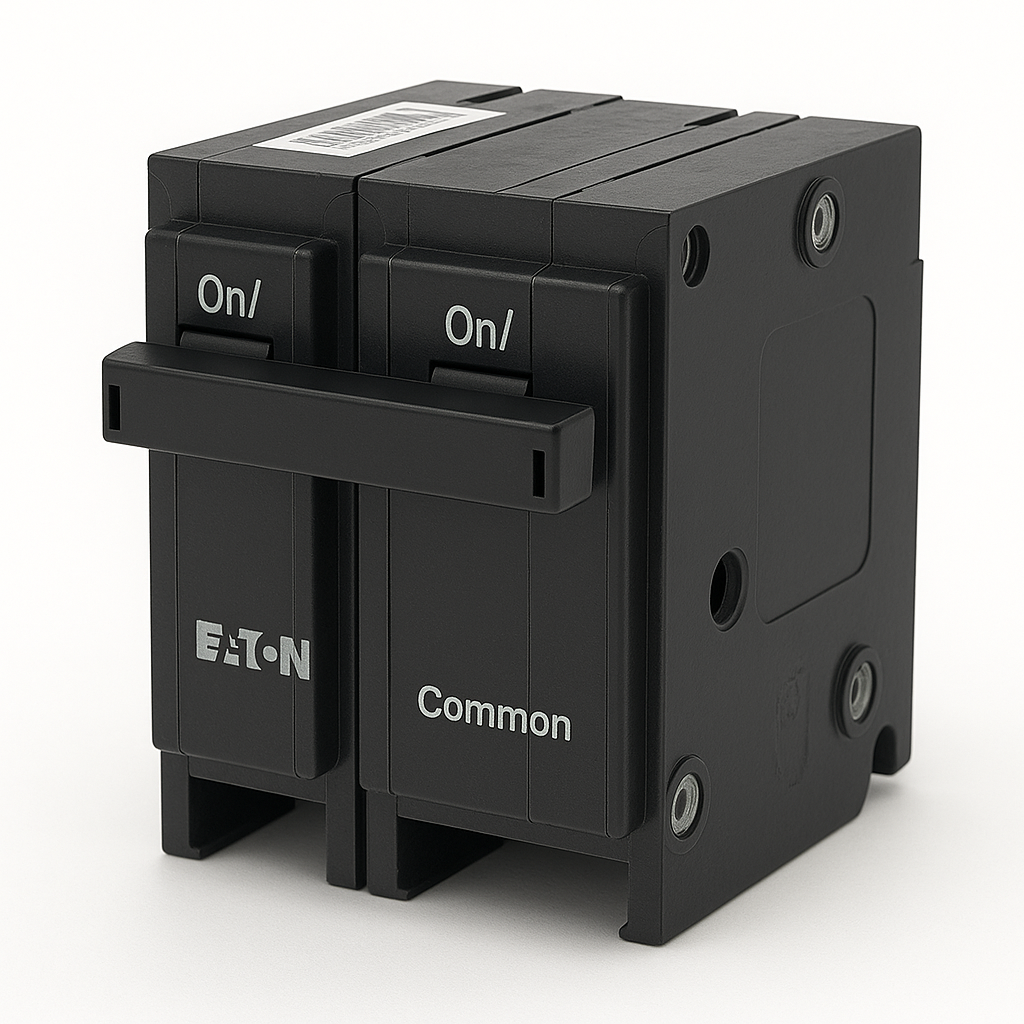

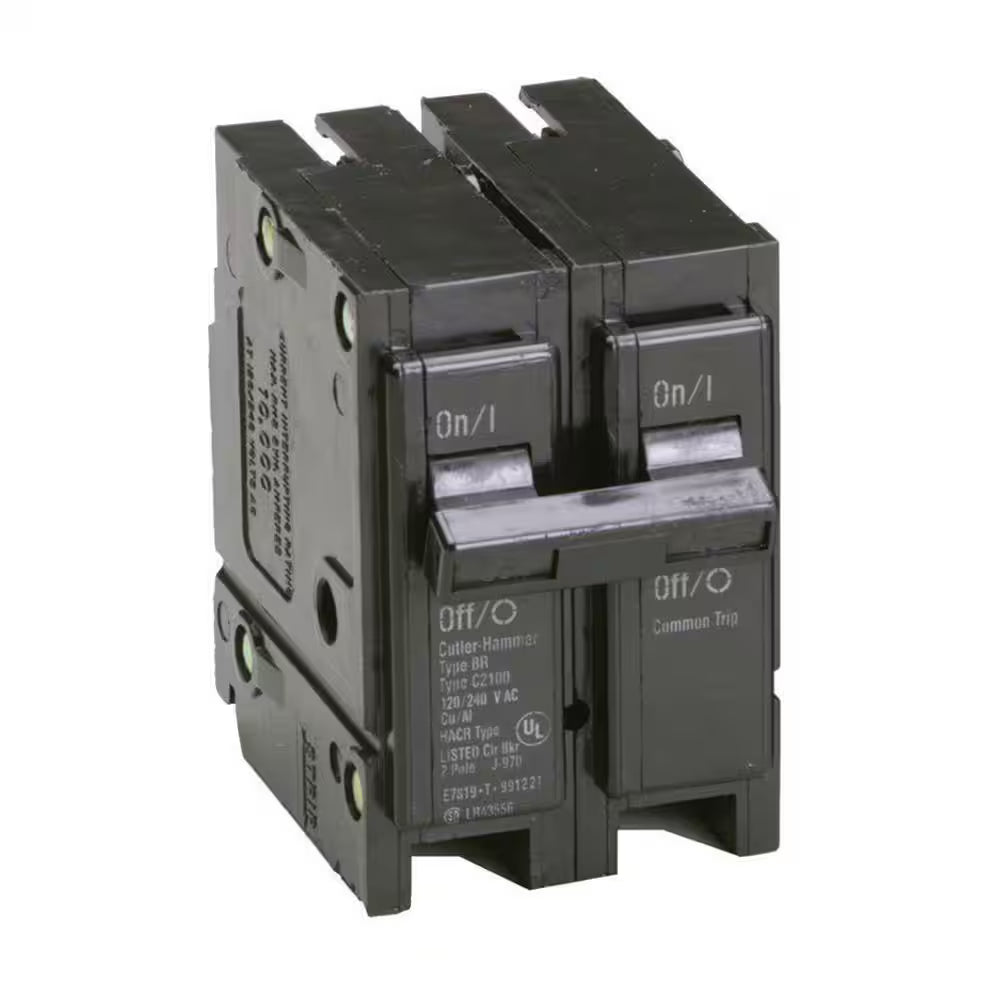

A 90 Amp, double-pole Eaton Type BR circuit breaker used in Eaton BR series load centers. It’s designed for 120/240 V AC applications, carries a 10 kA interrupting rating, and installs with a plug-in mount onto the panel’s bus. The breaker has screw clamp terminals for outgoing wires and supports conductor sizes from roughly #8 AWG up to 1/0 AWG.

Product Specifications

Brand / Manufacturer : Eaton

Type : BR

Category : Circuit Breaker

Cat. No : BR290

Poles : 2-Pole

Amperage (A) : 90

Voltage (V) : 120/240

Connection Type : Plug-in

Interrupting Current (AIC) : 10,000

Dimensions (Inches) L x W x H : 1.9 in (L) x 2.0 in (W) x 2.5 in (H)

Weight (Lbs) : 0.6
