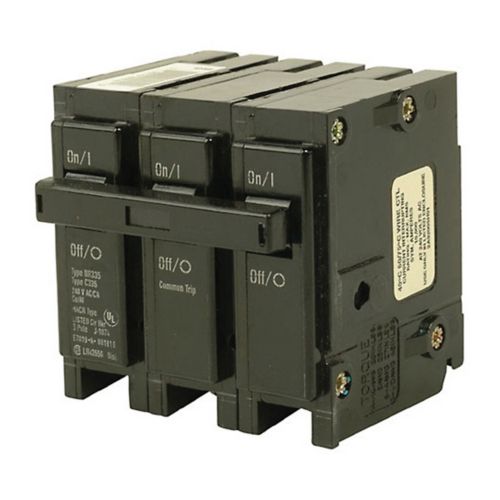

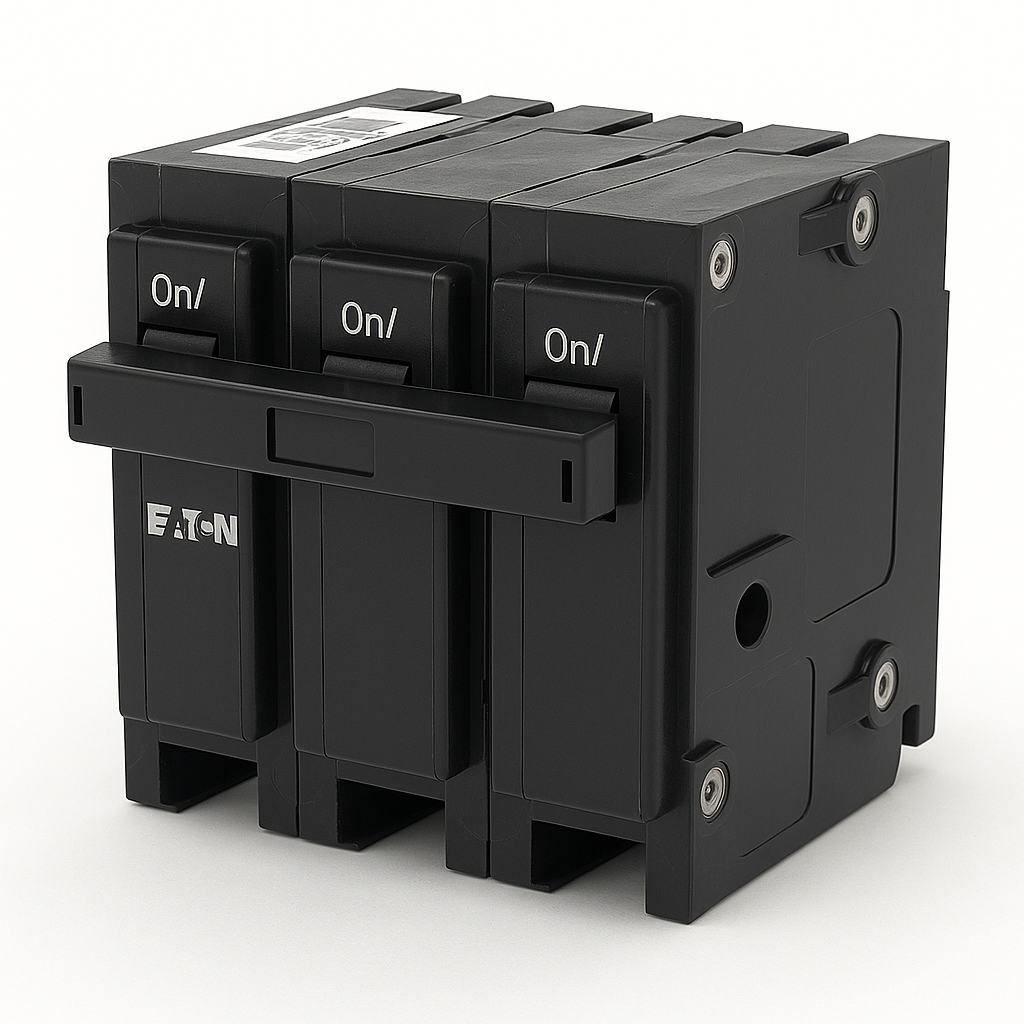

EATON 3-POLE 100A

A 100 Amp, three-pole Eaton Type BR breaker for use in Eaton BR series three-phase load centers or panelboards. It’s rated up to 240 V AC with a 10 kA interrupting capacity and has a common-trip design for 3-phase circuits. The breaker plugs onto the panel bus and includes terminal lugs for branch wiring, supporting wire sizes from roughly #4 AWG up to 1/0 AWG.

Product Specifications

Brand / Manufacturer : Eaton

Type : BR

Category : Circuit Breaker

Cat. No : BR3100

Poles : 3-Pole

Amperage (A) : 100

Voltage (V) : 120/240

Connection Type : Plug-in

Interrupting Current (AIC) : 10,000

Dimensions (Inches) L x W x H : 3.0 in (L) x 2.9 in (W) x 2.5 in (H)

Weight (Lbs) : 1.1
