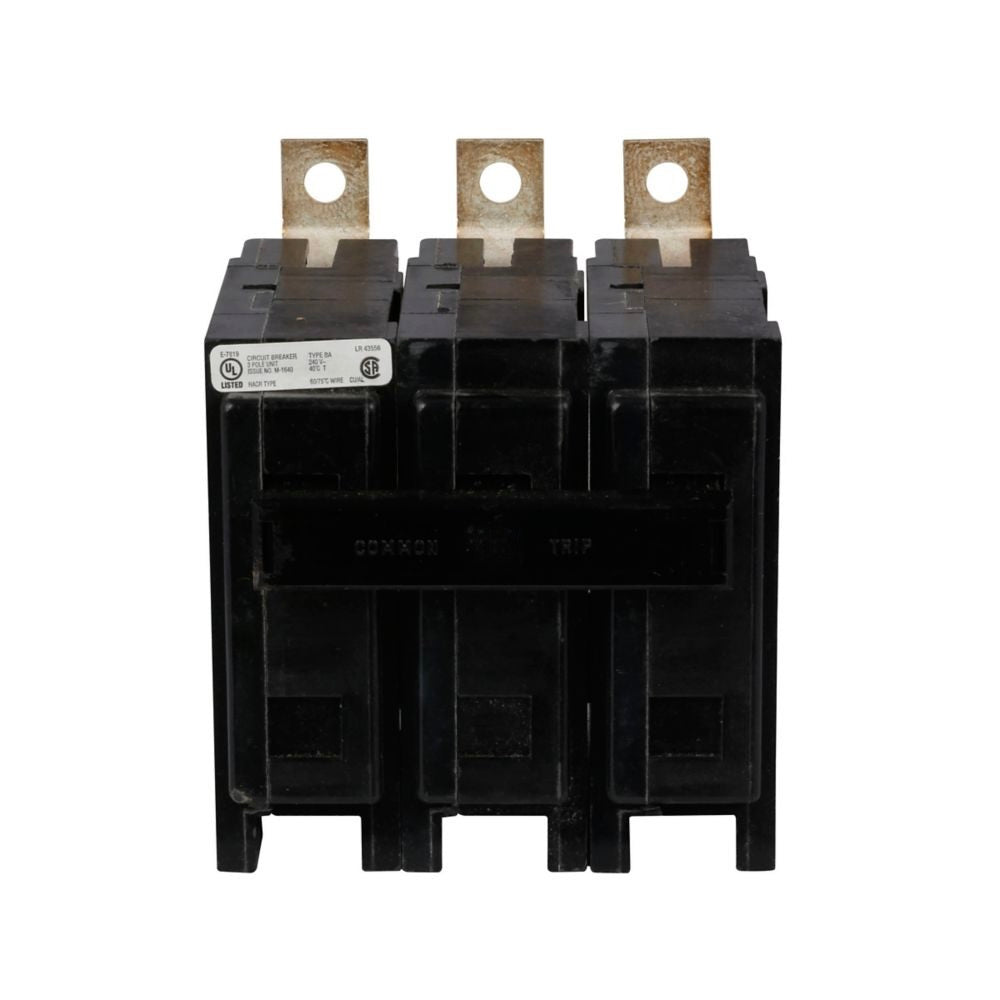

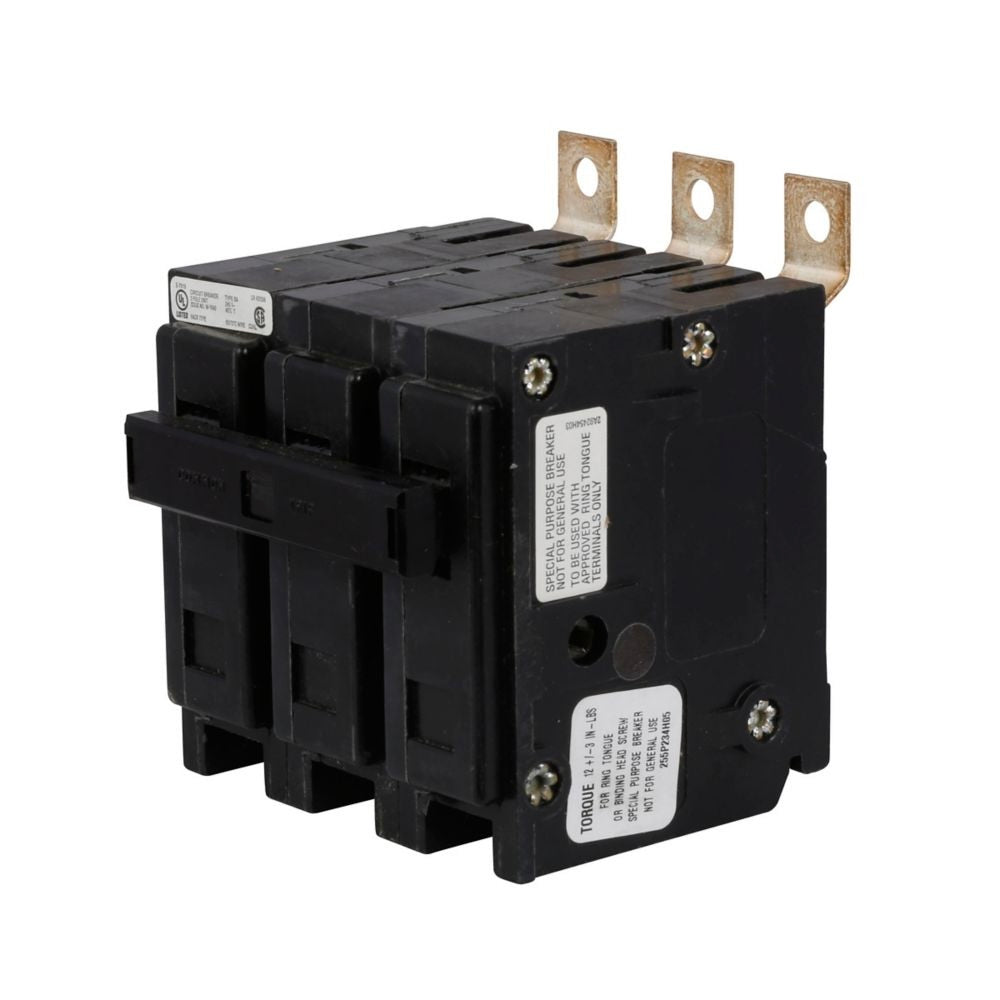

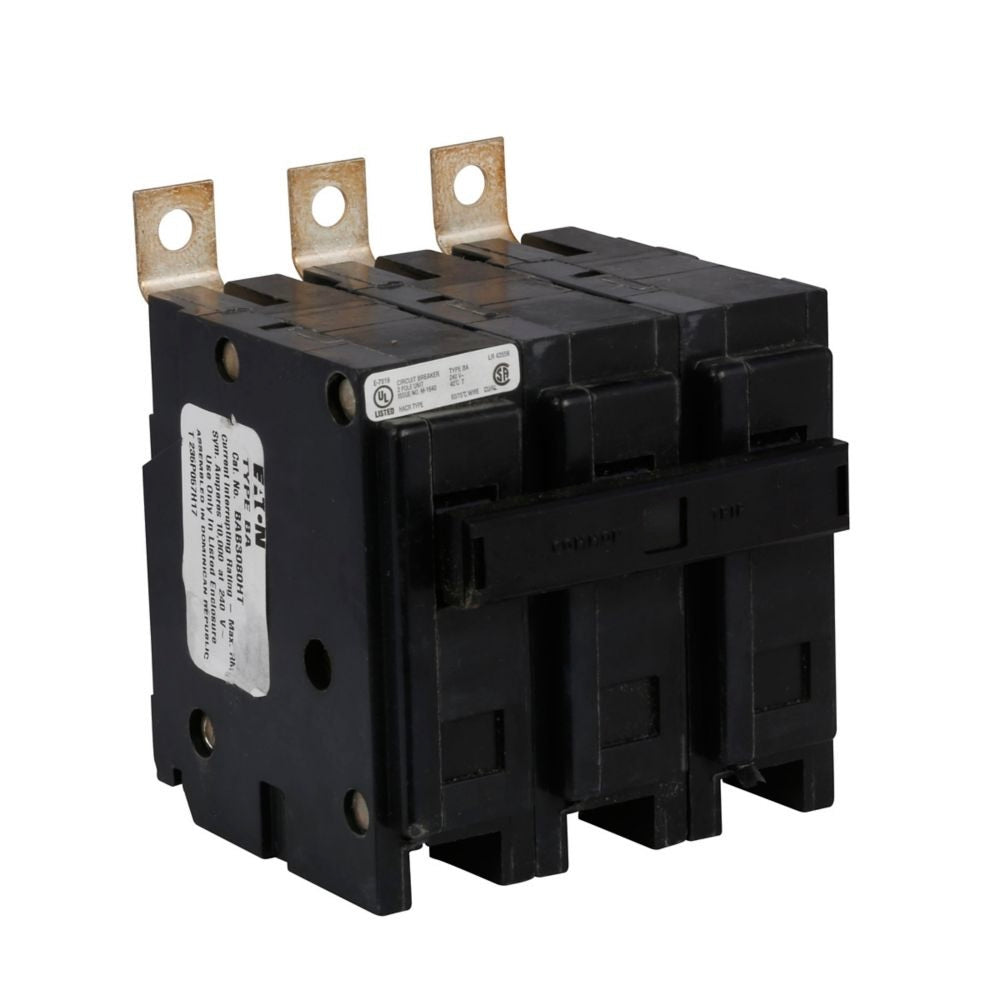

EATON 3-POLE 100A BOLT-ON

A 100 Amp, three-pole Eaton bolt-on breaker (Type BAB) suitable for Eaton commercial panelboards. This breaker is rated for 240 V AC and has a 10 kAIC interrupting rating. It attaches to the panel via a bolted connection and includes a load-side lug for the branch circuit conductors (accepting approximately #4 to 1/0 AWG copper or aluminum).

Product Specifications

Brand / Manufacturer : Eaton

Type : BA

Category : Circuit Breaker

Cat. No : BAB3100H

Poles : 3-Pole

Amperage (A) : 100

Voltage (V) : 240

Connection Type : Bolt-on

Interrupting Current (AIC) : 10,000

Dimensions (Inches) L x W x H : 2.9 in (L) x 3.0 in (W) x 2.9 in (H)

Weight (Lbs) : 1
