EATON 3-POLE 15A
Regular price
$95.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

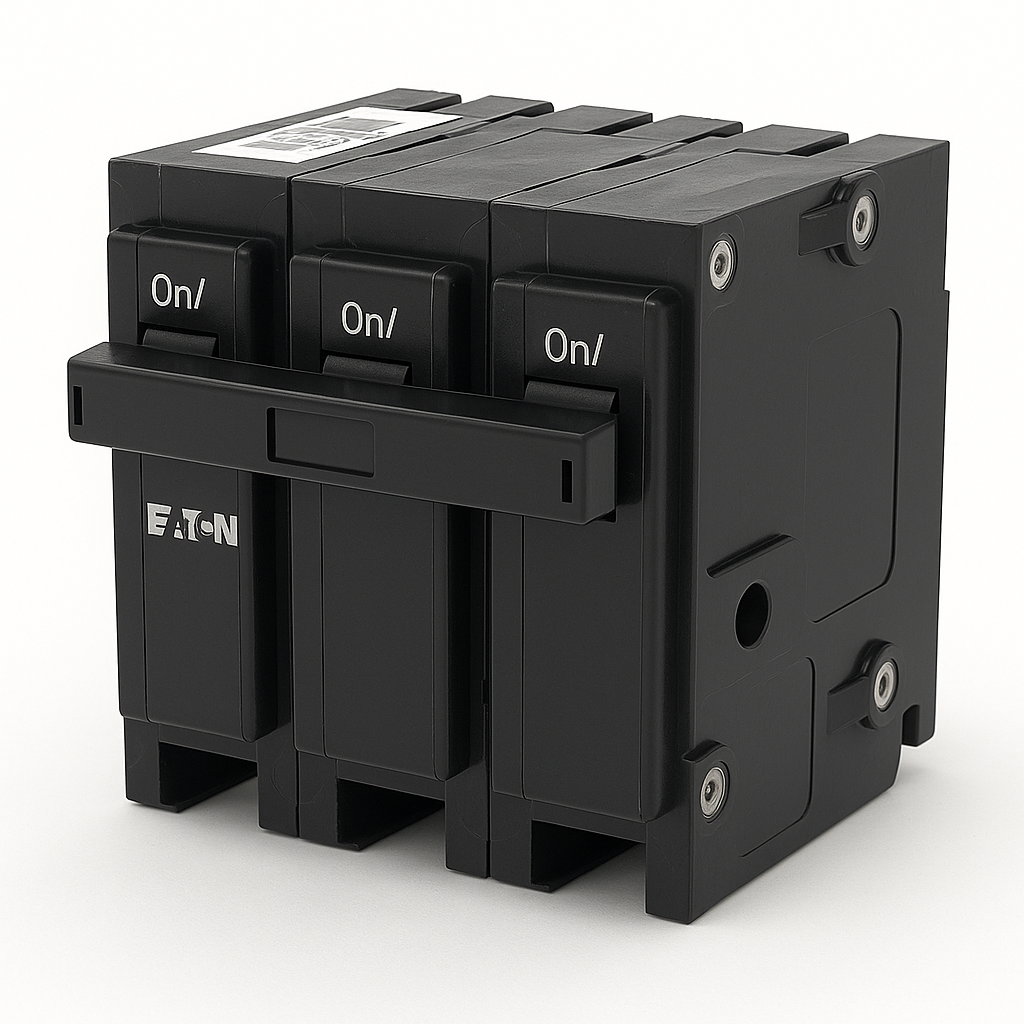

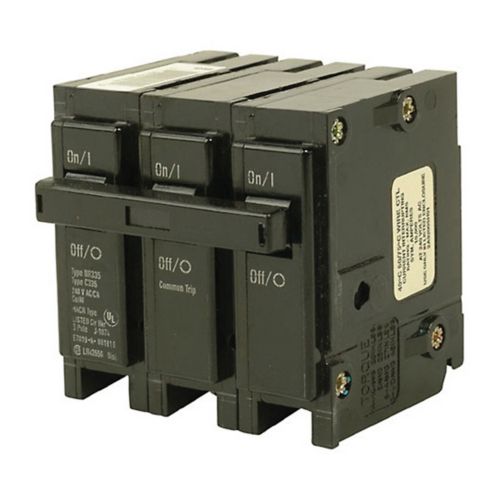

A 15 Amp, three-pole Eaton breaker (Type BR) made for BR series 3-phase load centers. It’s rated for 240 V AC with a 10 kA interrupting capacity and has a common trip across all poles. This breaker plugs onto the panel’s bus and accepts branch wires from #14 AWG up to #4 AWG.
Product Specifications
Brand / Manufacturer : Eaton
Type : BR
Category : Circuit Breaker
Cat. No : BR315
Poles : 3-Pole
Amperage (A) : 15
Voltage (V) : 120/240
Connection Type : Plug-in
Interrupting Current (AIC) : 10,000
Dimensions (Inches) L x W x H : 3.0 in (L) x 2.9 in (W) x 2.5 in (H)
Weight (Lbs) : 1.1
