EATON 3-POLE 15A BOLT-ON

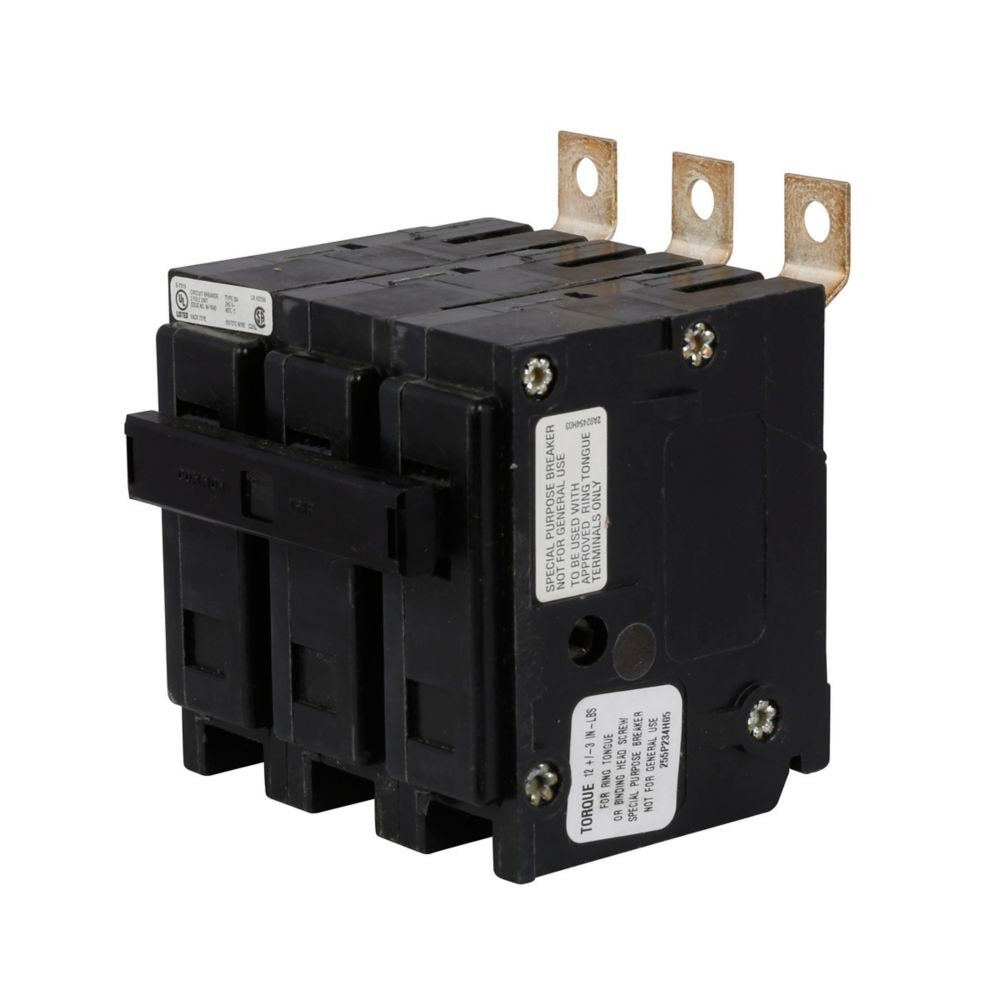

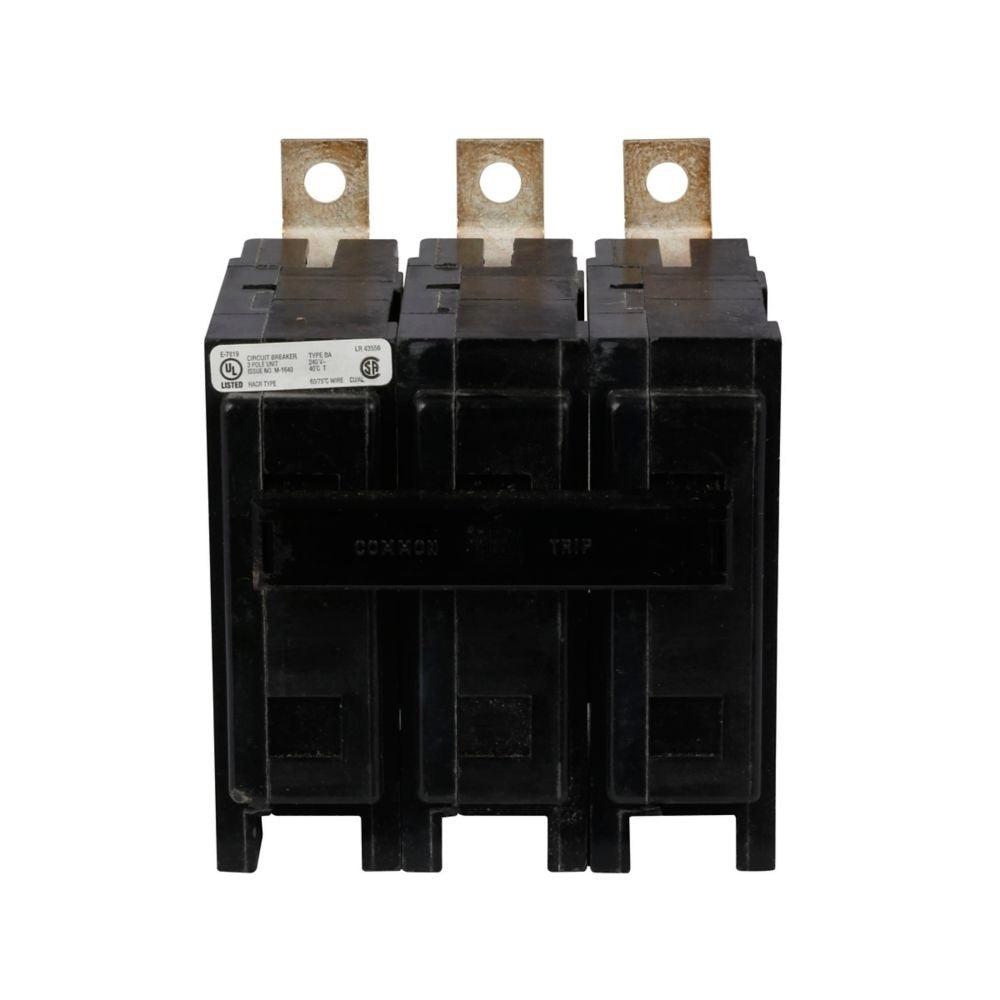

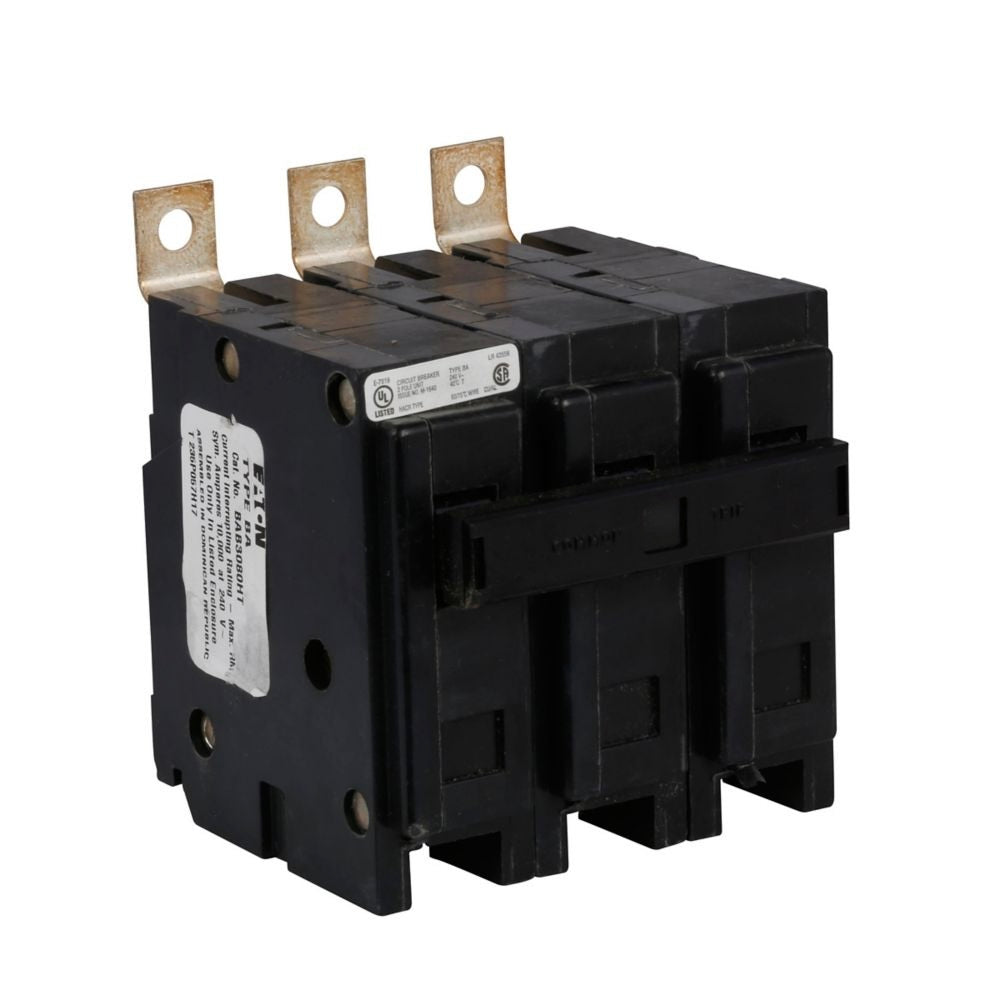

A 15 Amp, three-pole Eaton Type BAB bolt-on breaker for commercial panelboards. It is rated for 240 V AC with a 10 kA interrupting capacity and fastens to the panel bus with a bolt-on connection. The breaker has a single load-side lug for its three-phase output and supports wire sizes from about #14 to #4 AWG.

Product Specifications

Brand / Manufacturer : Eaton

Type : BA

Category : Circuit Breaker

Cat. No : BAB3015H

Poles : 3-Pole

Amperage (A) : 15

Voltage (V) : 240

Connection Type : Bolt-on

Interrupting Current (AIC) : 10,000

Dimensions (Inches) L x W x H : 2.9 in (L) x 3.0 in (W) x 2.9 in (H)

Weight (Lbs) : 1
