EATON 3-POLE 20A

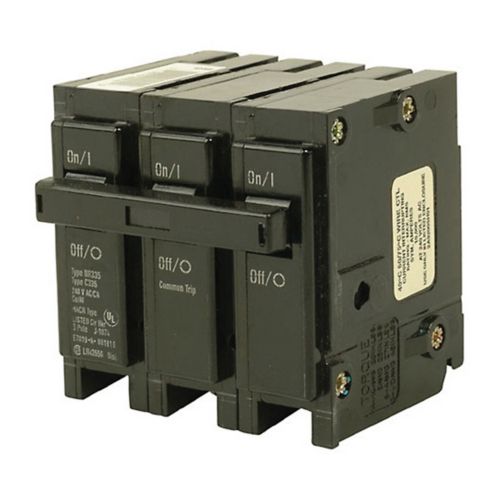

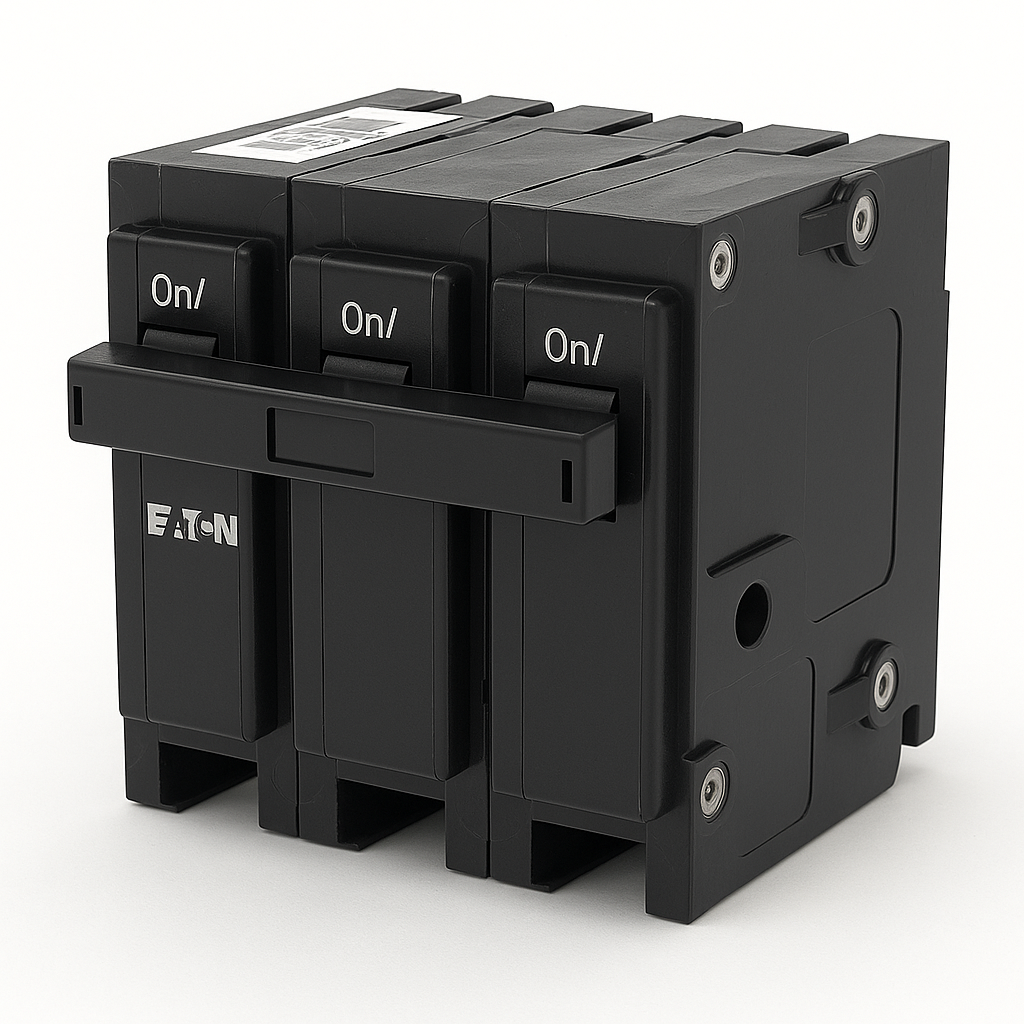

A 20 Amp, three-pole Eaton Type BR breaker for use in Eaton BR series three-phase panels. It is rated for 240 V AC and has a 10 kA interrupting capacity. This breaker snaps into the panel’s bus bar (plug-in mount) and has screw-clamp terminals for connecting branch circuit wires (approximately #14 to #4 AWG).

Product Specifications

Brand / Manufacturer : Eaton

Type : BR

Category : Circuit Breaker

Cat. No : BR320

Connection Type : Plug-in

Poles : 3-Pole

Amperage (A) : 20

Voltage (V) : 120/240

Interrupting Current (AIC) : 10,000

Dimensions (Inches) L x W x H : 3.0 in (L) x 2.9 in (W) x 2.5 in (H)

Weight (Lbs) : 1.1
