EATON 3-POLE 20A 22KAIC FEED-THRU

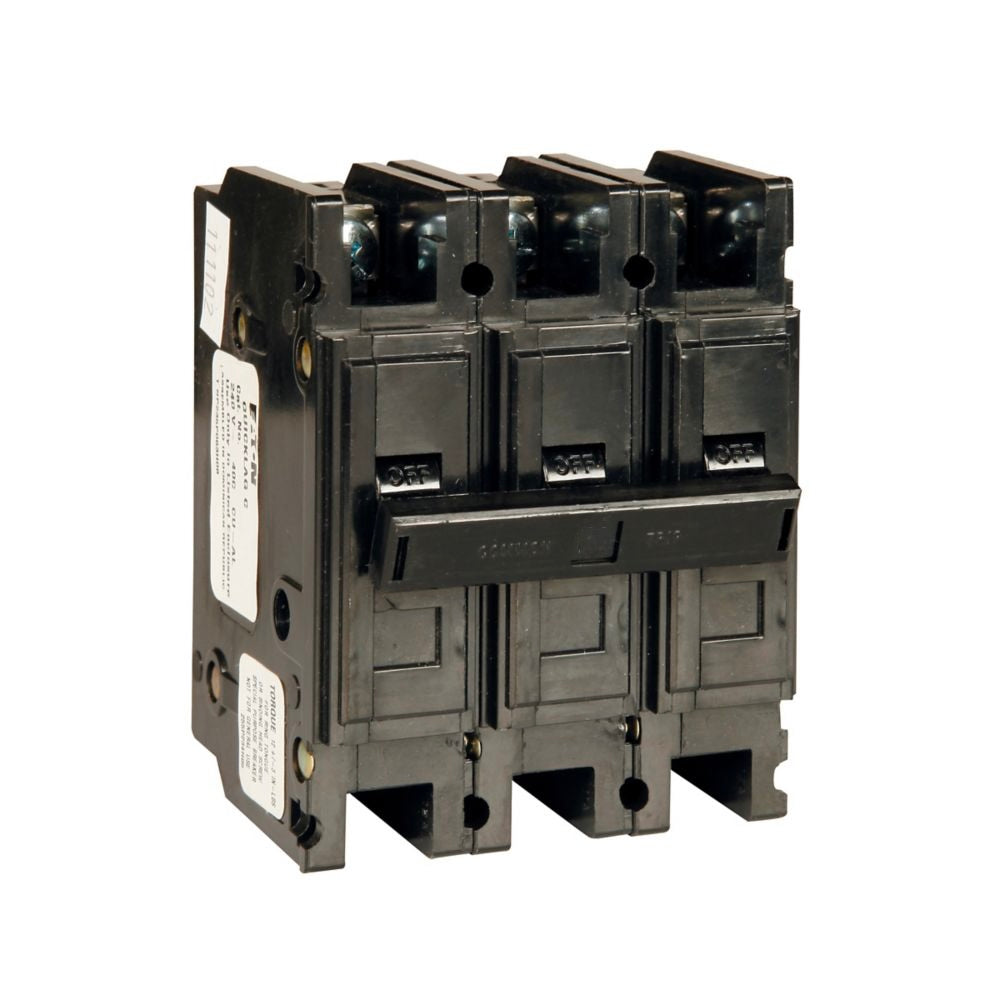

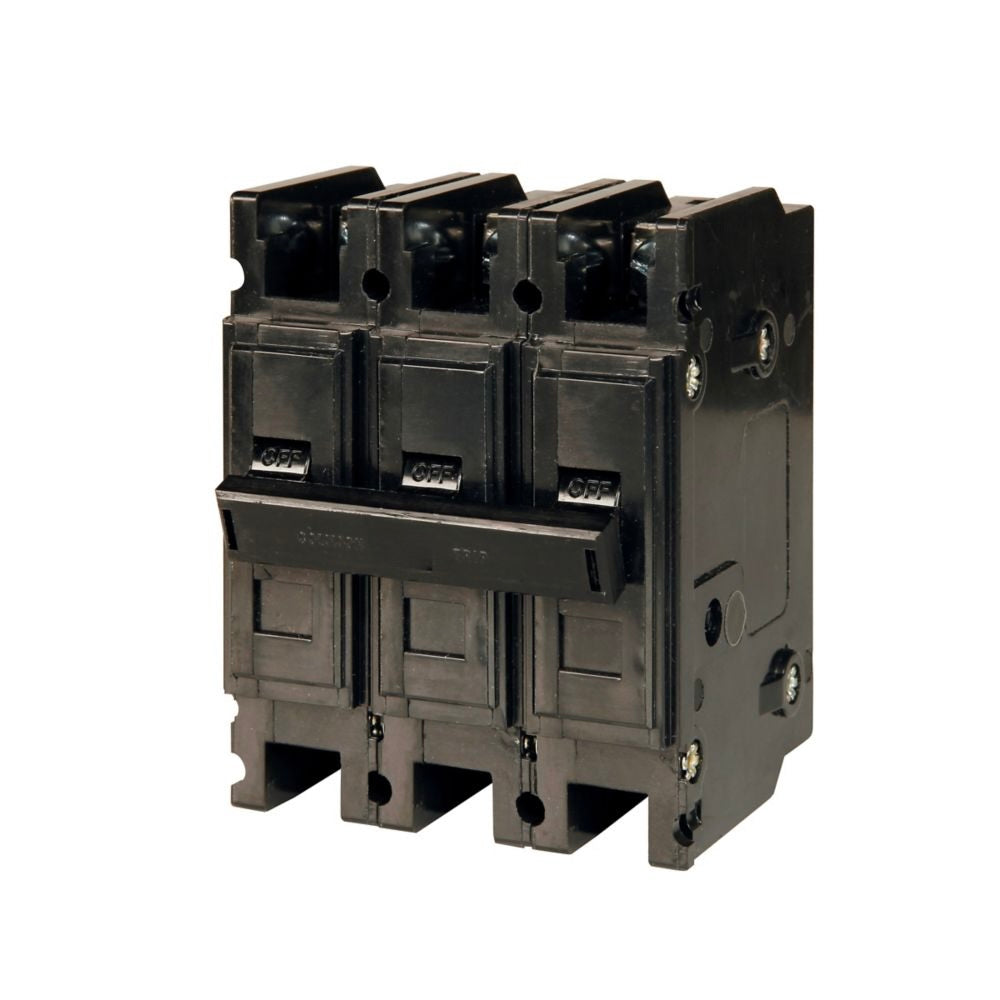

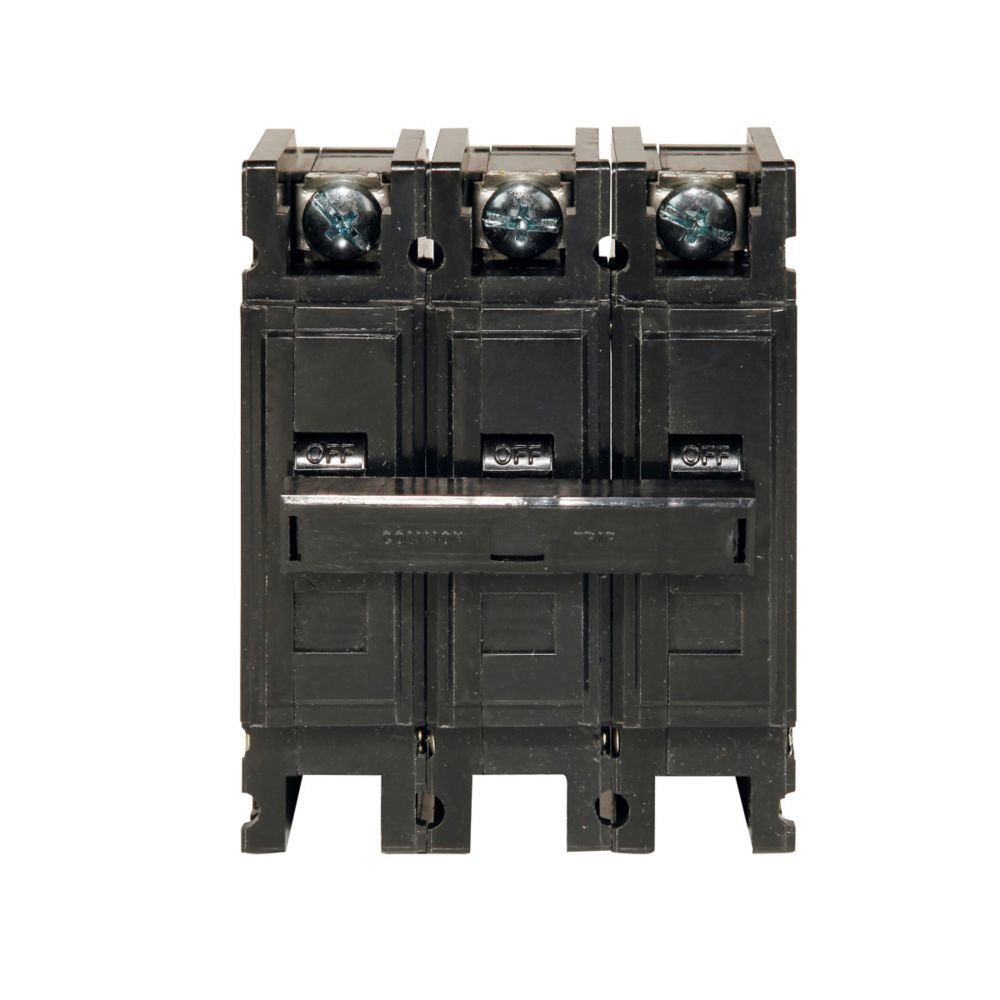

A 20 Amp, three-pole Eaton feed-thru breaker (Type QC) with a high interrupting capacity of 22 kA at 240 V AC. This cable-in/cable-out breaker is designed for specialized panel or equipment installations where higher fault current capability is needed. It mounts using bolt-on feed-through lugs and includes line/load terminals that accommodate wires roughly from #14 to #4 AWG.

Product Specifications

Brand / Manufacturer : Eaton

Type : QC

Category : Circuit Breaker

Cat. No : QC3020H

Connection Type : Feed-thru

Poles : 3-Pole

Amperage (A) : 20

Voltage (V) : 240

Interrupting Current (AIC) : 10,000

Dimensions (Inches) L x W x H : 3.8 in (L) x 3.1 in (W) x 4.9 in (H)

Weight (Lbs) : 1.2
